MÄDLERMÄDLER· Fastening Elements

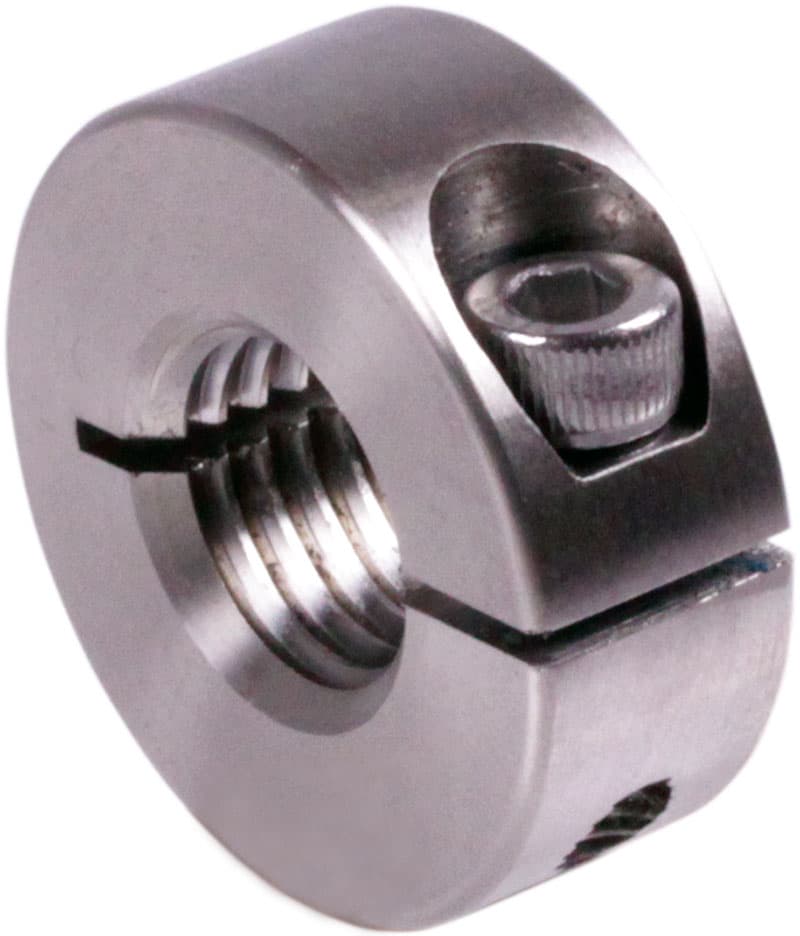

Clamp collar with thread single split stainless steel 1.4305 thread M 12 x 1.75 with bolt DIN 912 A2-70
Manufacturer part no. 62399612
$29.55≈ 25.66 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €25.66 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.13 |
| Total delivered | €48.79 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

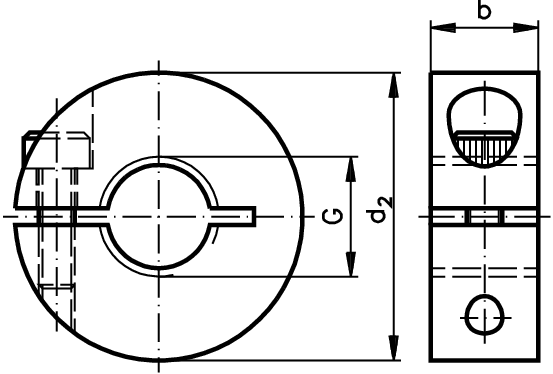

Specifications (automatically extracted)
Mechanical
| Weight | 39 g |
Other characteristics
| Outer diameter | 28 mm |
| Thread pitch | 1.75 mm |
| Width | 11 mm |
| Bolts din 912 | M 4 x 12 |
| Material | Stainless steel (303) |
| Surface | Blank |
| Thread size | M 12 |
Description
Material: Stainless steel 1.4305 (AISI 303). Screws stainless steel A2-70. The threads of the screws DIN 912 are covered with a layer of polyamide. Temperature range: -40°C to +175°C. *Thread metric ISO-standard (column 1).
