MÄDLERMÄDLER· Bearings, Bushes, Seals

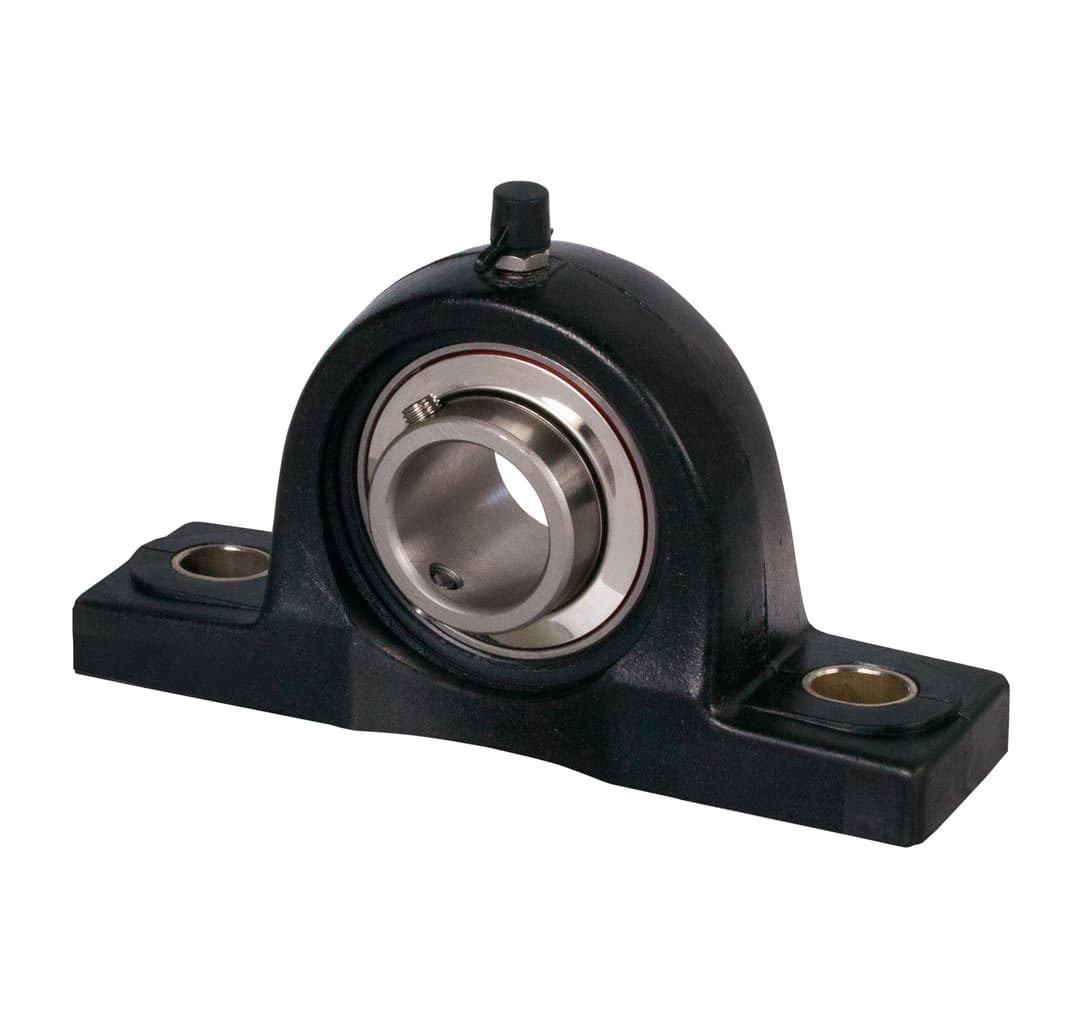

Ball pillow block bearing TUCP 209 bore 45mm housing from thermoplast black bearing stainless steel
Manufacturer part no. 62555145
$136.58≈ 118.61 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €118.61 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €26.72 |
| Total delivered | €160.33 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.15 kg |
Other characteristics
| Bore | 45 mm |
| Housing load rating axial | 9 kN |
| Housing load rating radial | 11.4 kN |
| Type | 209 |
| Material | Plastic (black) / Stainless steel |
| Surface | Blank |
Description
Material: Housing: Thermoplast PBT, black. Rolling bearing: Stainless steel 1.4125 (X105CrMo17, AISI 440 C), lubricated with grease FM 220 for food processing machinery, with registration FDA, CIFA, KPF2K-20, NSF H1.Temperature range: -20°C to +90°C (for short time up to +120°C). The rolling bearing can be swiveled when mounting to compensate shaft misalignement. The shaft will get fastened with 2 setscrews. Lubricated for life at normal operating conditions. Re-lubricating is possible. Delivery with stainless steel grease nipple.
