MÄDLERMÄDLER· Bearings, Bushes, Seals

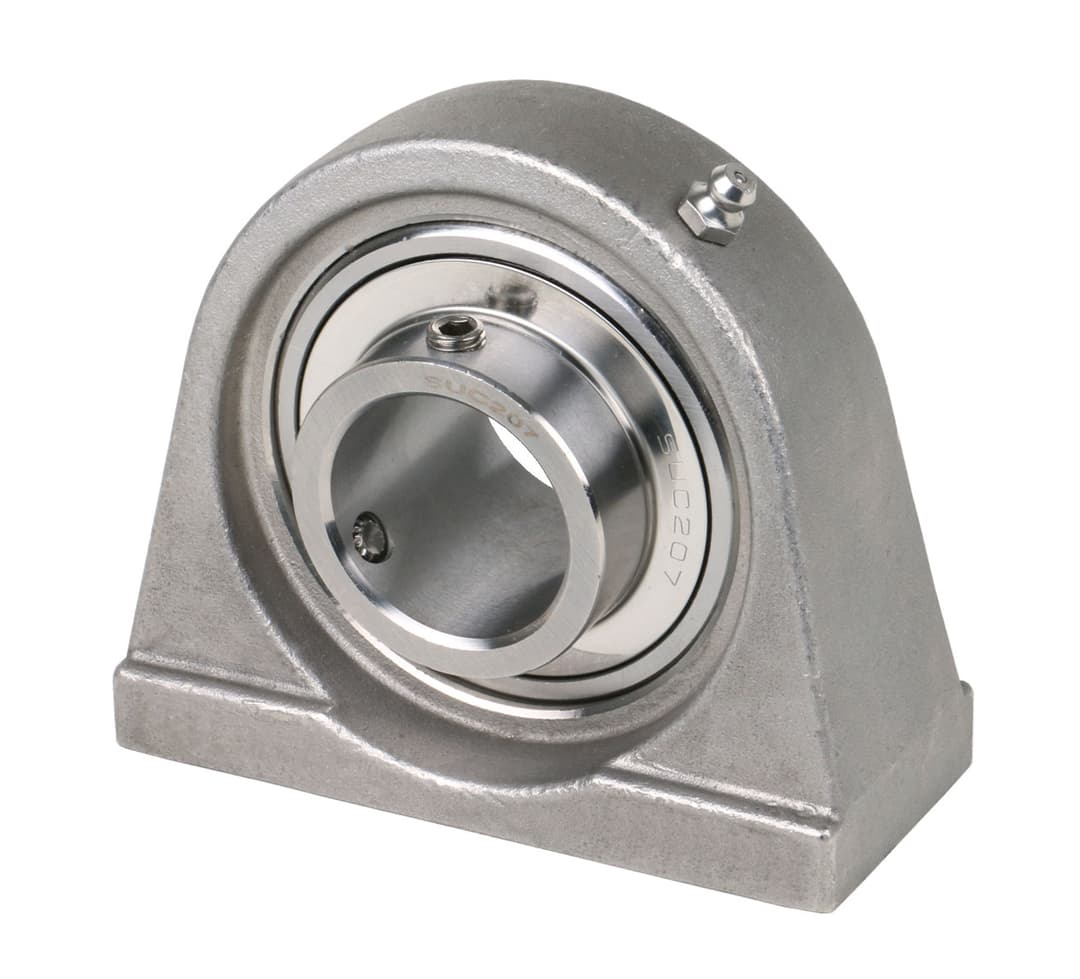

Ball pillow block bearing SS UCPA 207 bore 35mm housing and bearing stainless steel
Manufacturer part no. 62599335
$159.10≈ 138.17 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €138.17 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €30.63 |
| Total delivered | €183.80 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.58 kg |
Other characteristics
| Bearing load rating dyn c lager tragzahl dyn c | 25.7 kN |
| Bearing load rating stat c0 lager tragzahl stat | 15.3 kN |
| Bore | 35 |
| Ssucpa no | 207 |
| Material | Stainless steel |
| Surface | Blank |
Description
Material: Housing: Stainless steel 1.4301 (AISI 304). Rolling bearing: Stainless steel 1.4125 (X105CrMo17, AISI 440 C), lubricated with grease FM 222 for food processing machinery, with registration FDA, CIFA, KPF2K-20, NSF H1. The rolling bearing can be swiveled when mounting to compensate shaft misalignement. The shaft will get fastened with 2 setscrews. Lubricated for life at normal operating conditions. Re-lubricating is possible. Delivery with stainless steel grease nipple. * Maximum radial load if axial force = 0. The axial load rating is approx. 20% of the radial load rating.
