MÄDLERMÄDLER· Bearings, Bushes, Seals

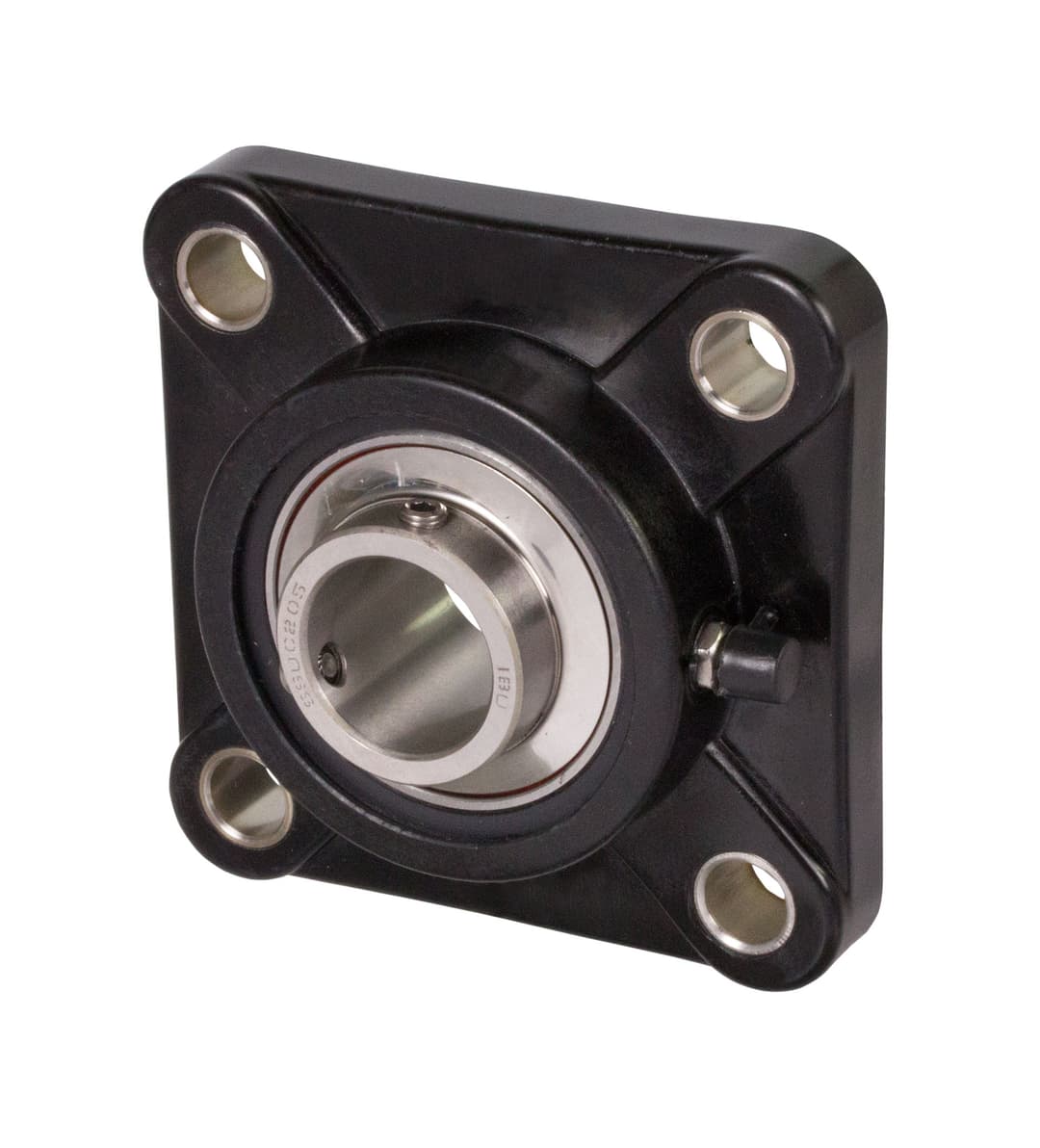

Ball flange bearing TUCF 204 bore 20mm housing from thermoplast black bearing stainless steel
Manufacturer part no. 62655020
$42.34≈ 36.77 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €36.77 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.35 |
| Total delivered | €62.12 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 280 g |
Other characteristics
| Bore | 20 mm |
| Housing load rating axial | 3.7 kN |
| Housing load rating radial | 16 kN |
| Type | 204 |
| Material | Plastic (black) / Stainless steel |
| Surface | Blank |
Description
Material: Housing: Thermoplast PBT, black. Rolling bearing: Stainless steel 1.4125 (X105CrMo17, AISI 440 C). With 4 mounting holes. The rolling bearing can be swiveled when mounting to compensate shaft misalignement. The shaft will get fastened with 2 setscrews. Lubricated for life at normal operating conditions. Re-lubricating is possible. Delivery with stainless steel grease nipple.
