MÄDLERMÄDLER· Bearings, Bushes, Seals

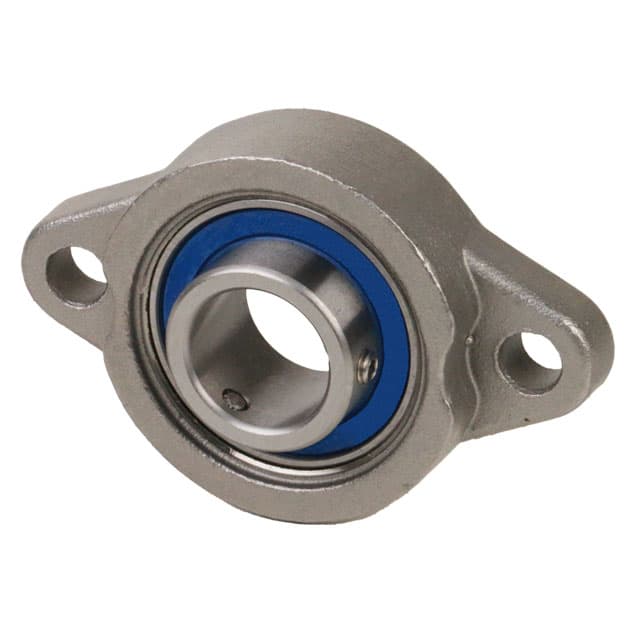

Ball flange bearing SSKFL 004 bore 20mm housing and bearing stainless steel
Manufacturer part no. 62699620
$55.06≈ 47.82 €
In stock — 28 unitslead time 14 d
Estimated landed cost
| Item | €47.82 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.56 |
| Total delivered | €75.38 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

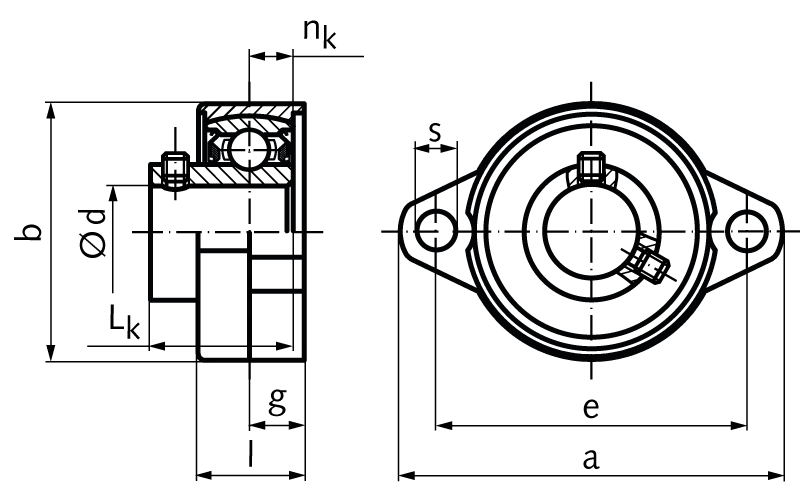

Specifications (automatically extracted)
Mechanical
| Weight | 210 g |
Other characteristics
| A | 90 mm |
| B | 55 mm |
| Bearing load rating dyn c | 8.1 |
| Bearing load rating stat c0 | 4.1 |
| D | 20 mm |
| E | 71 mm |
| G | 8 mm |
| L | 16 mm |
| Lk | 21 mm |
| Nk | 6 mm |
| Nr | 4 |
| S | 10 mm |
Description
Material: Housing: Stainless steel 1.4301 (AISI 304). Rolling bearing: Stainless steel 1.4125 (AISI 440C), lubricated with grease FM 222 for food processing machinery, with registration FDA, CIFA, KPF2K-20, NSF H1. The rolling bearing can be swiveled when mounting to compensate shaft misalignement. The shaft will get fastened with 2 set screws. Lubricated for life at normal operating conditions. 1) Maximum radial load if axial force = 0. The axial load rating is approx. 20% of the radial load rating.
