MÄDLERMÄDLER· Bearings, Bushes, Seals

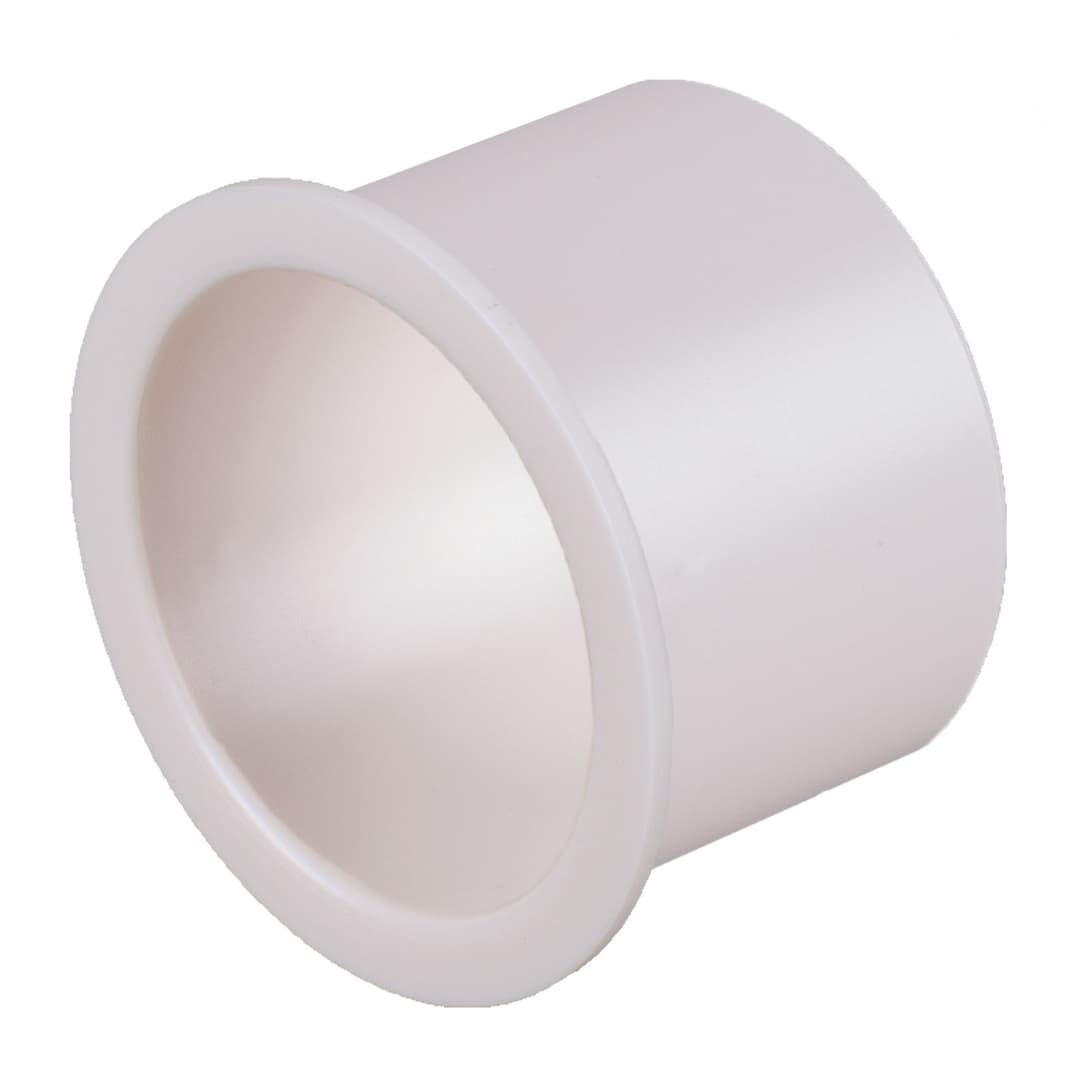

Flange bush EP22 bore 25mm outer diameter 28mm flange diameter 35mm length 11,5mm colour: white
Manufacturer part no. 62732511
$3.77≈ 3.27 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €3.27 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.65 |
| Total delivered | €21.92 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.9 g |
Other characteristics

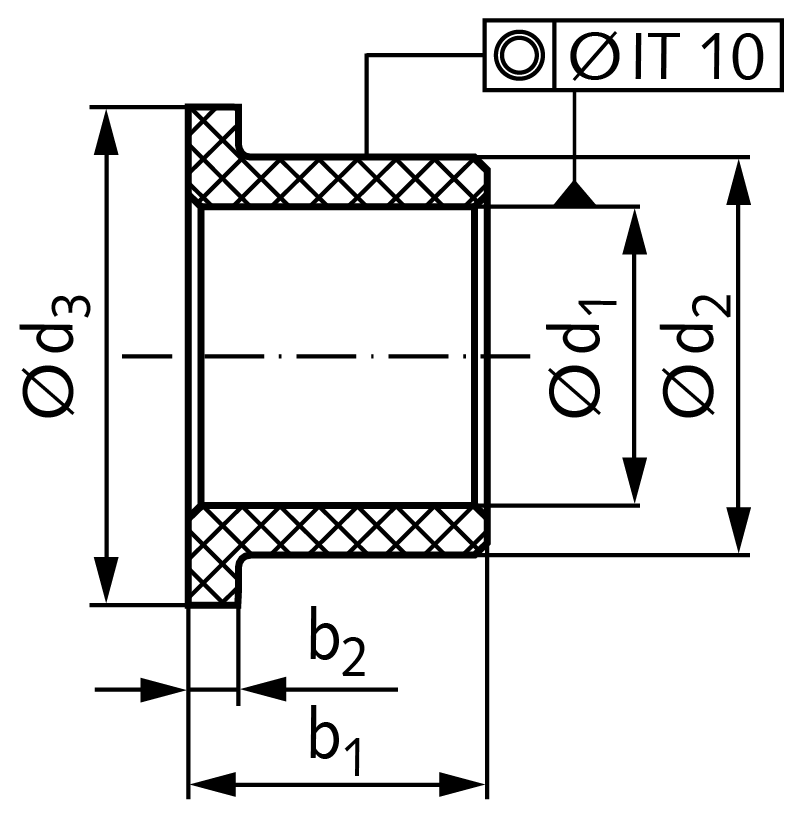

| Inner diameter | 25 mm |
| Length | 11.5 mm |
| Minus allowance d1 | 0.04 mm |
| Outer diameter | 28 mm |
| Plus allowance d1 | 0.124 mm |
| Material | Plastic (up to 170°C, surface pressure 50 N/mm²) |
| Surface | Blank |
Description
Material: Thermoplast polybutylenterephthalat, modified (PBT + PTFE), white. Plain bearing flange bush made from thermoplastic with high dimension accuracy. Low friction. Specially suited for dry-running and for use at very low up to middle high temperatures. Good price/perfomance ratio with high dimension accuracy. Low friction, suitable also for lubrication-free running. Temperature range -50ºC bis + 170ºC. Operating Conditions: dry : very good. oiled: good. water: very good. field of aplication:Domestic appliances, chemical equipment, office equipment, sports equipment, automotive (pedals, steering, axes) and many more.
