MÄDLERMÄDLER· Universal Joints

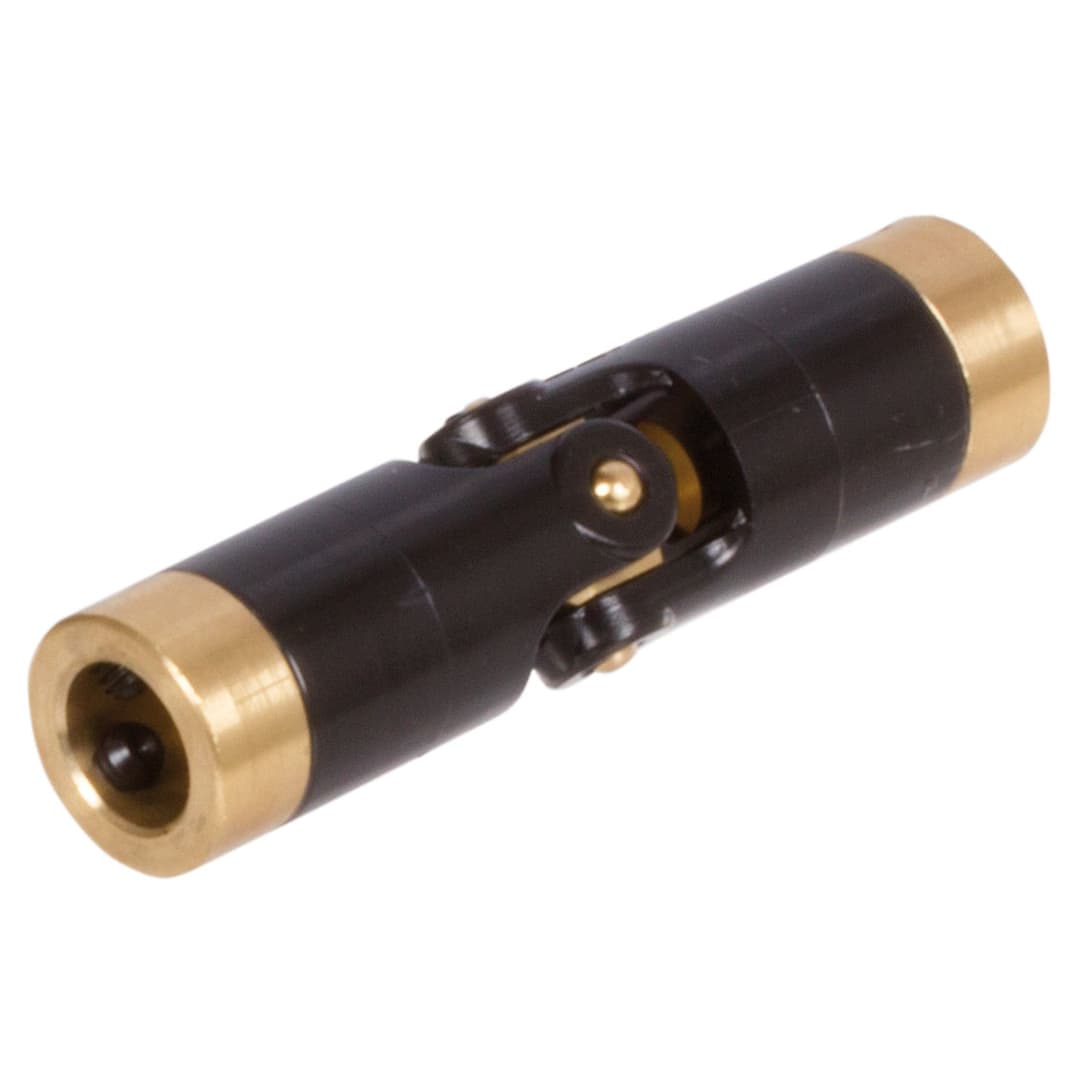

Cardan joint UKM both sides bore 4mm ends with metal cap
Manufacturer part no. 63023500
$29.07≈ 25.25 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €25.25 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.05 |
| Total delivered | €48.30 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

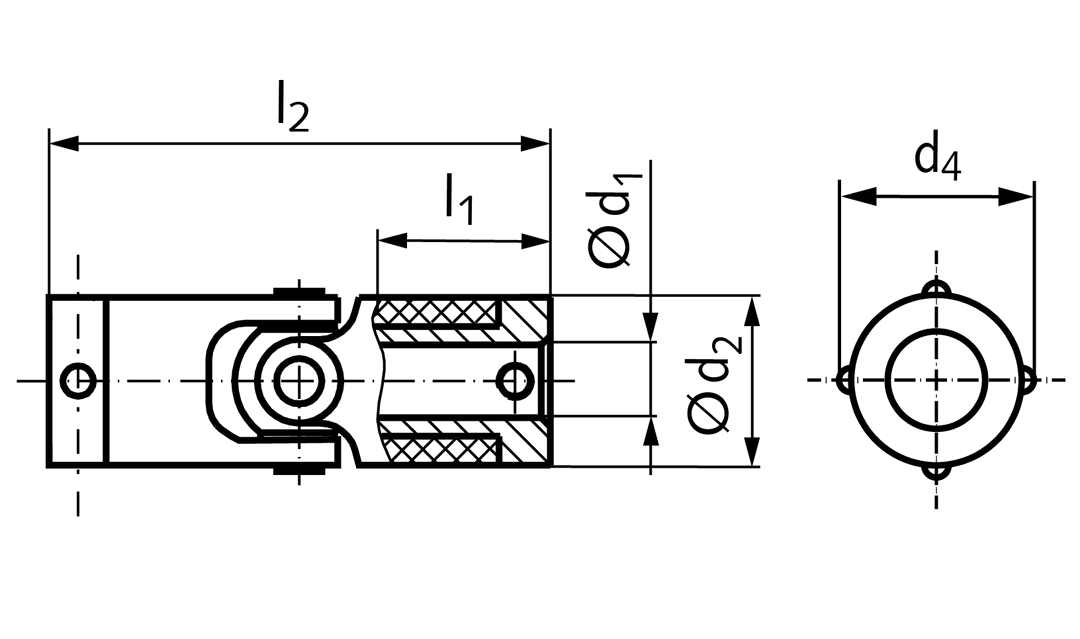

Specifications (automatically extracted)
Mechanical
| Weight | 8.5 g |
Other characteristics
| Bore | 4 mm |
| Max torque | 0.36 Nm |
| Outer diameter | 9.5 mm |
| Total length | 37.6 mm |
| Material | Plastic / Brass |
| Surface | Blank |
Description
Material: Plastic acetal-homopolymer with metal caps worked into the ends. Metal caps and crosspiece made of brass. Max. Operating Angle 45°. These cardan joints are fixed on the shafts with Allen screws.
