MÄDLERMÄDLER· Universal Joints

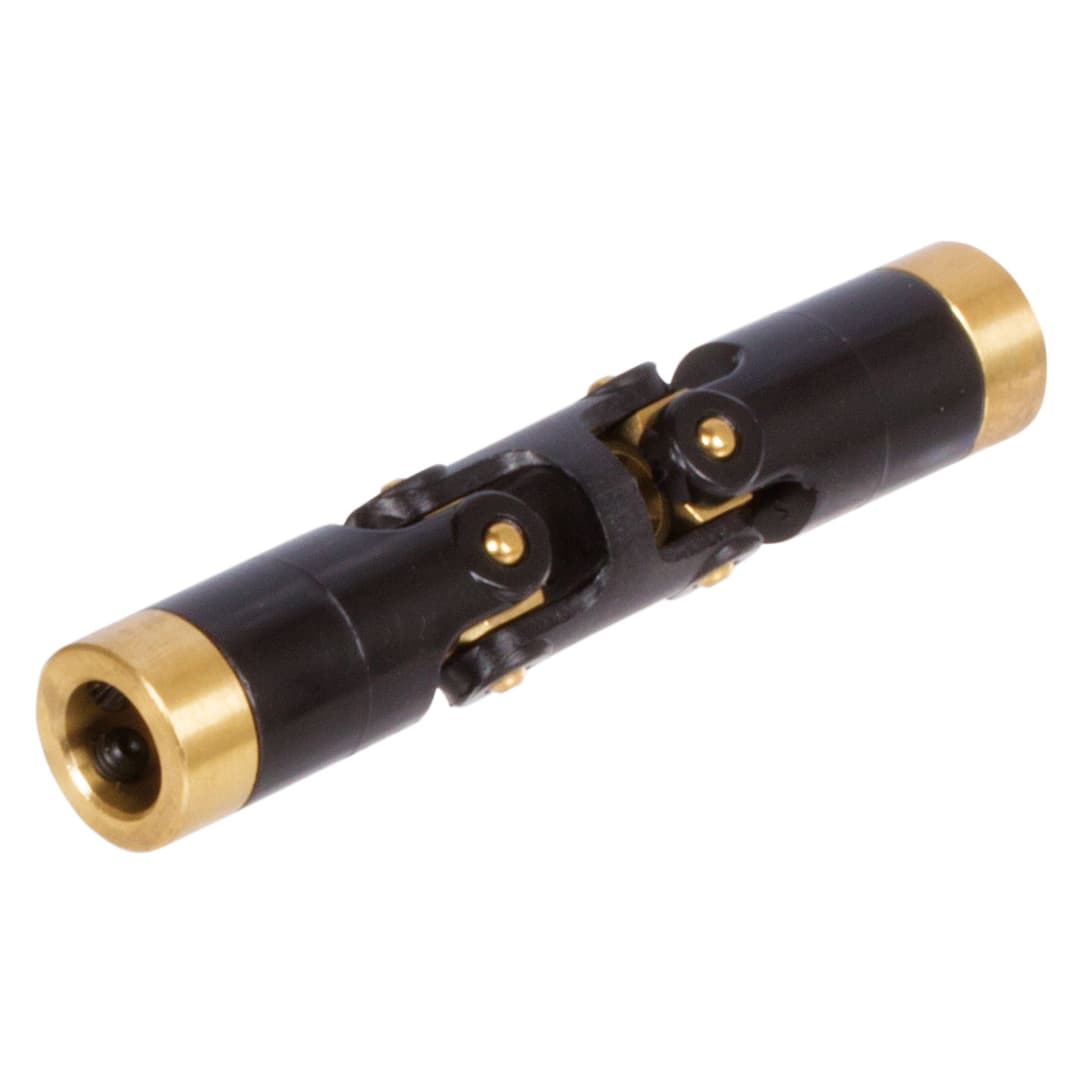

Double universal joint UKD both-sided bore 4mm length 50.8mm ends with metal cap
Manufacturer part no. 63033500
$39.64≈ 34.42 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €34.42 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.88 |
| Total delivered | €59.30 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 11.1 g |
Other characteristics

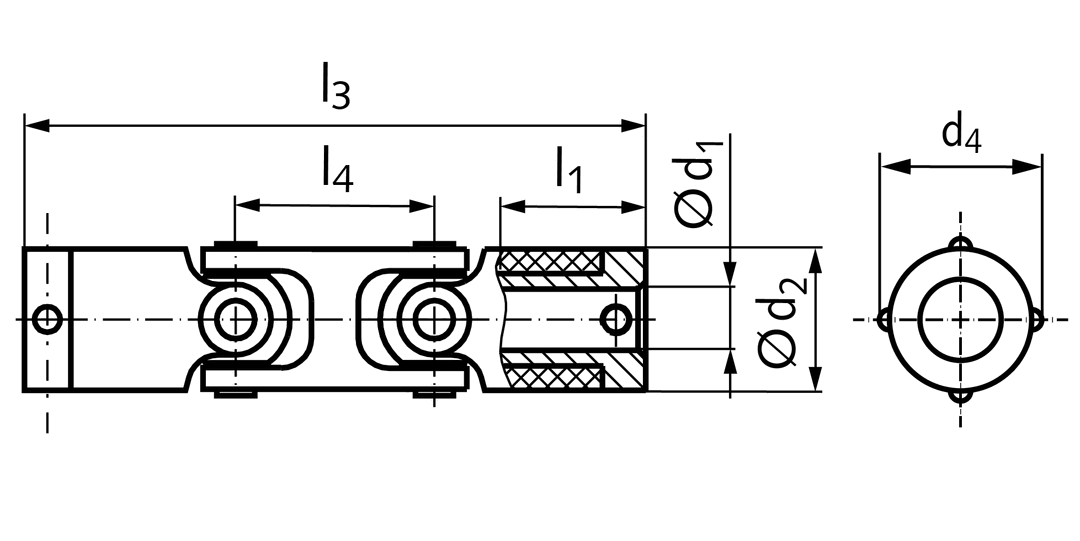

| Bore | 4 mm |
| Max torque | 0.16 Nm |
| Outer diameter | 9.5 mm |
| Total length | 50.8 mm |
| Material | Plastic / Brass |
| Surface | Blank |
Description
Material: Plastic acetal-homopolymer with metal caps worked into the ends. Metal caps and crosspiece made of brass. Max. Operating Angle 90°. These cardan joints are fixed on the shafts with Allen screws.
