MÄDLERMÄDLER· Universal Joints

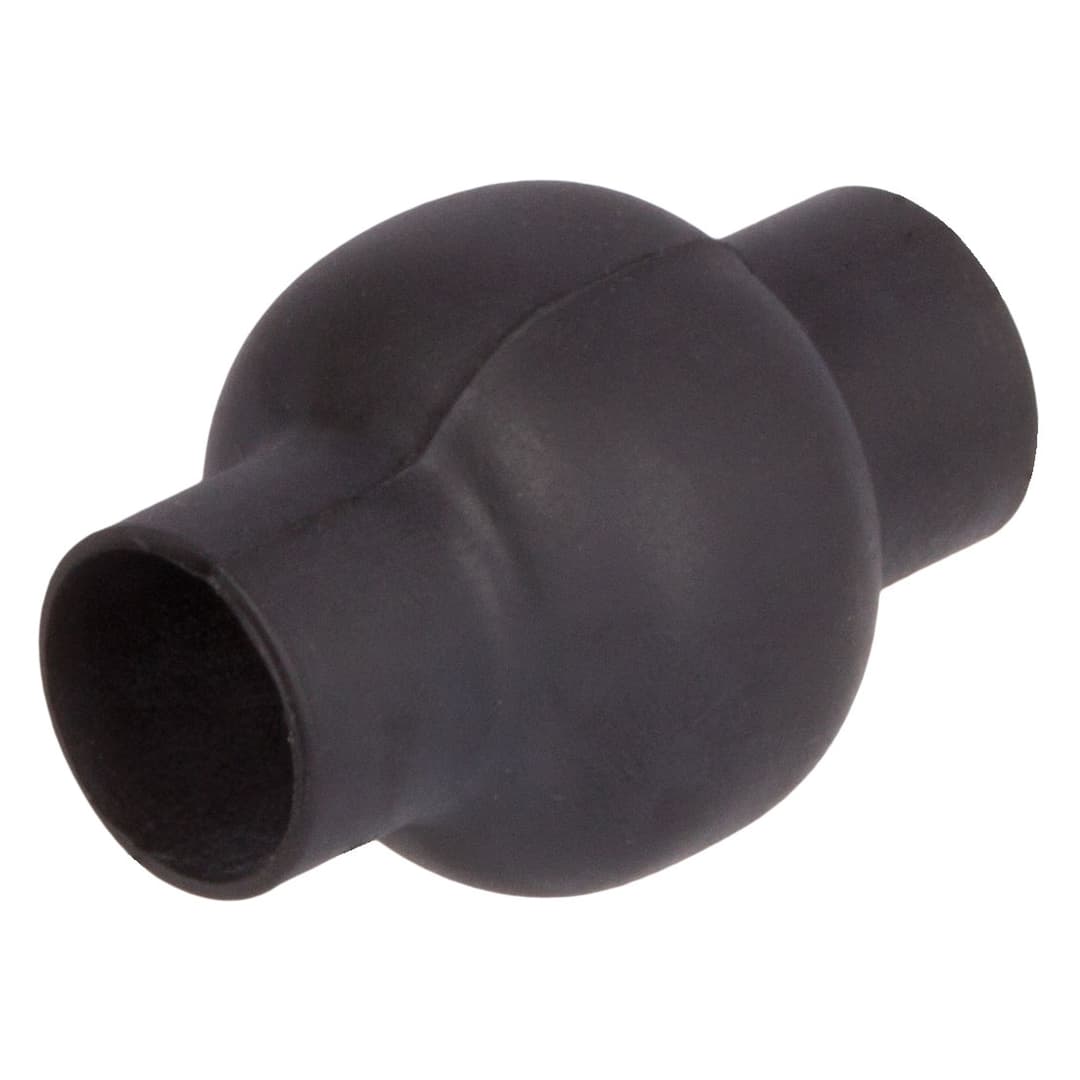

Bellow FSG size 18X38 colour: black
Manufacturer part no. 63051800
$6.46≈ 5.61 €
In stock — 20 unitslead time 14 d
Estimated landed cost
| Item | €5.61 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.12 |
| Total delivered | €24.73 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 6 g |
Other characteristics
| Bellow diameter | 37 mm |
| Inner diameter | 18 mm |
| Optional hose clamps stainless steel partno | 63 814 027 |
| Optional hose clamps zinc plated partno | 63 811 027 |
| Outer diameter | 20.5 mm |
| Total length | 41 mm |
| Universal joint d2 | 18 mm |
| Universal joint l1 | 11 mm |
| Universal joint l2 | 40 mm |
| Material | NBR |
| Nominal size | 18 x 38 |
| Surface | Blank |
Description
Material: mineral-oil resistant material based on nitrile rubber, with a hardness of about 45 Shore A. Single-fold bellows are used to protect ball and universal joints. The shaft lengths L1 and L2 are estimated dimensions. To securely fix the bellows on the joints, the connections should also be supplied with hose fittings.
