MÄDLERMÄDLER· Universal Joints

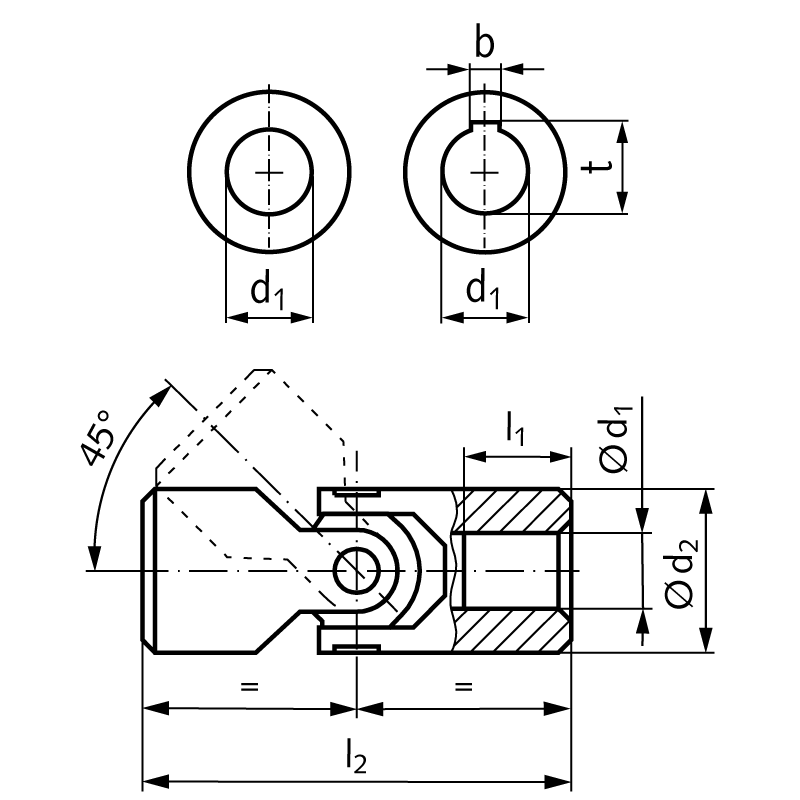

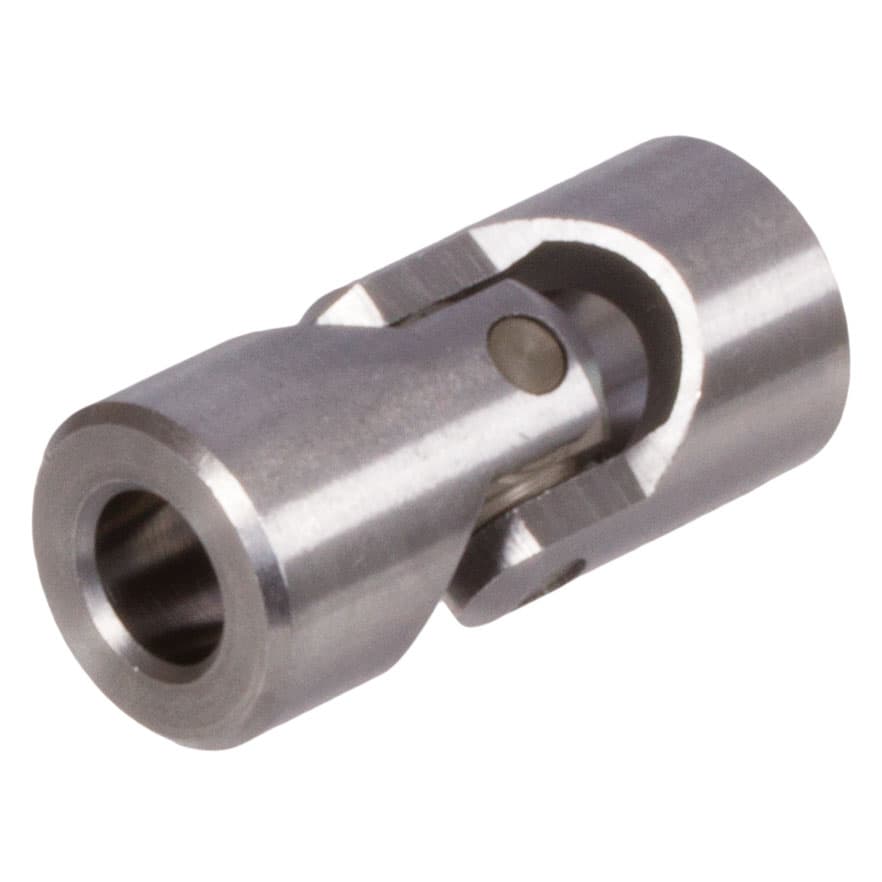

Single universal joint WEL similar to DIN808 bore 22H7 material steel total length 95mm outer diameter 47mm
Manufacturer part no. 63064700
$66.32≈ 57.59 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €57.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.52 |
| Total delivered | €87.11 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 930 g |
Other characteristics
| Bore | 22 mm |
| Max torque at 100 min 1 | 390 Nm |
| Max torque at 200 min 1 | 260 Nm |
| Max torque at 300 min 1 | 195 Nm |
| Max torque at 400 min 1 | 143 Nm |
| Max torque at 500 min 1 | 120.9 Nm |
| Outer diameter | 47 mm |
| Total length | 95 mm |
| Material | Steel |
| Surface | Blank |
Description
Material: Steel. Max. Operating Angle 45°. These low-price, single universal joints are especially suited for manual operation at low torques. As the contact surfaces are not hardened/ground, they can only be used at high speeds for short intervals. *only for short intervals Optionally without or with keyway DIN 6885-1, on both sides.
