MÄDLERMÄDLER· Universal Joints

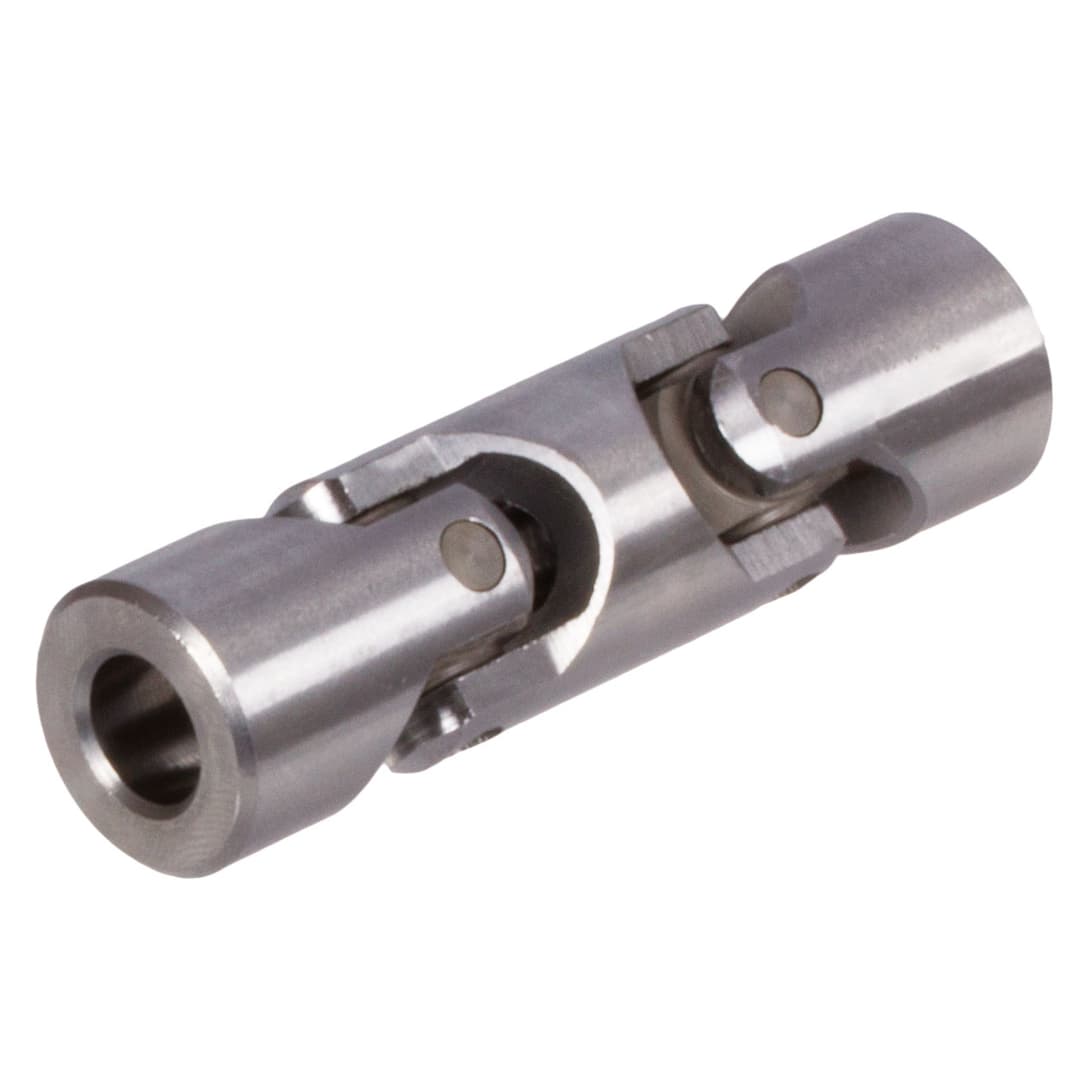

Double universal joint WDL similar to DIN808 bore 10H7 with keyway DIN 6885-1 tolerance JS9 on both sides
Manufacturer part no. 63072000N
$76.56≈ 66.49 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €66.49 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.30 |
| Total delivered | €97.79 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 80 g |
Other characteristics
| Bore | 10 mm |
| Keyway width | 3 mm |
| Max torque at 100 min 1 | 32.5 Nm |
| Max torque at 200 min 1 | 22.1 Nm |
| Max torque at 300 min 1 | 19.5 Nm |
| Max torque at 400 min 1 | 15.6 Nm |
| Max torque at 500 min 1 | 14.3 Nm |
| Max torque at 700 min 1 | 13 Nm |
| Max torque at 800 min 1 | 9.1 Nm |
| Outer diameter | 20 mm |
| Total length | 74 mm |
| Material | Steel |
| Surface | Blank |
Description
Material: Steel. Max. Operating Angle 90. These low-price, single universal joints are especially suited for manual operation at low torques. As the contact surfaces are not hardened/ground, they can be only used at high speeds for short intervals. *only for short intervals Optionally without or with keyway DIN 6885-1, on both sides.
