MÄDLERMÄDLER· Universal Joints

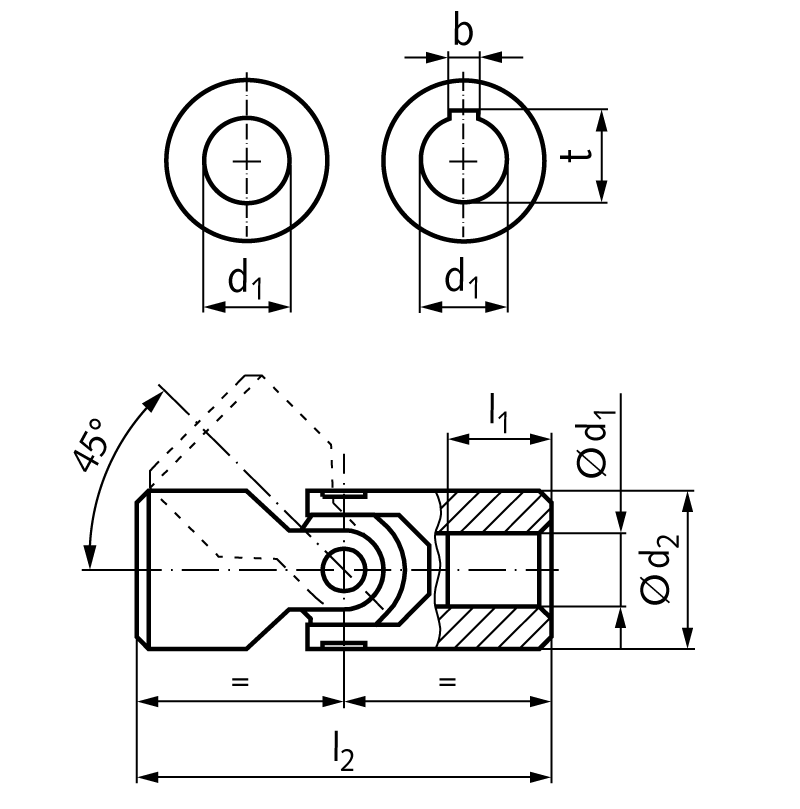

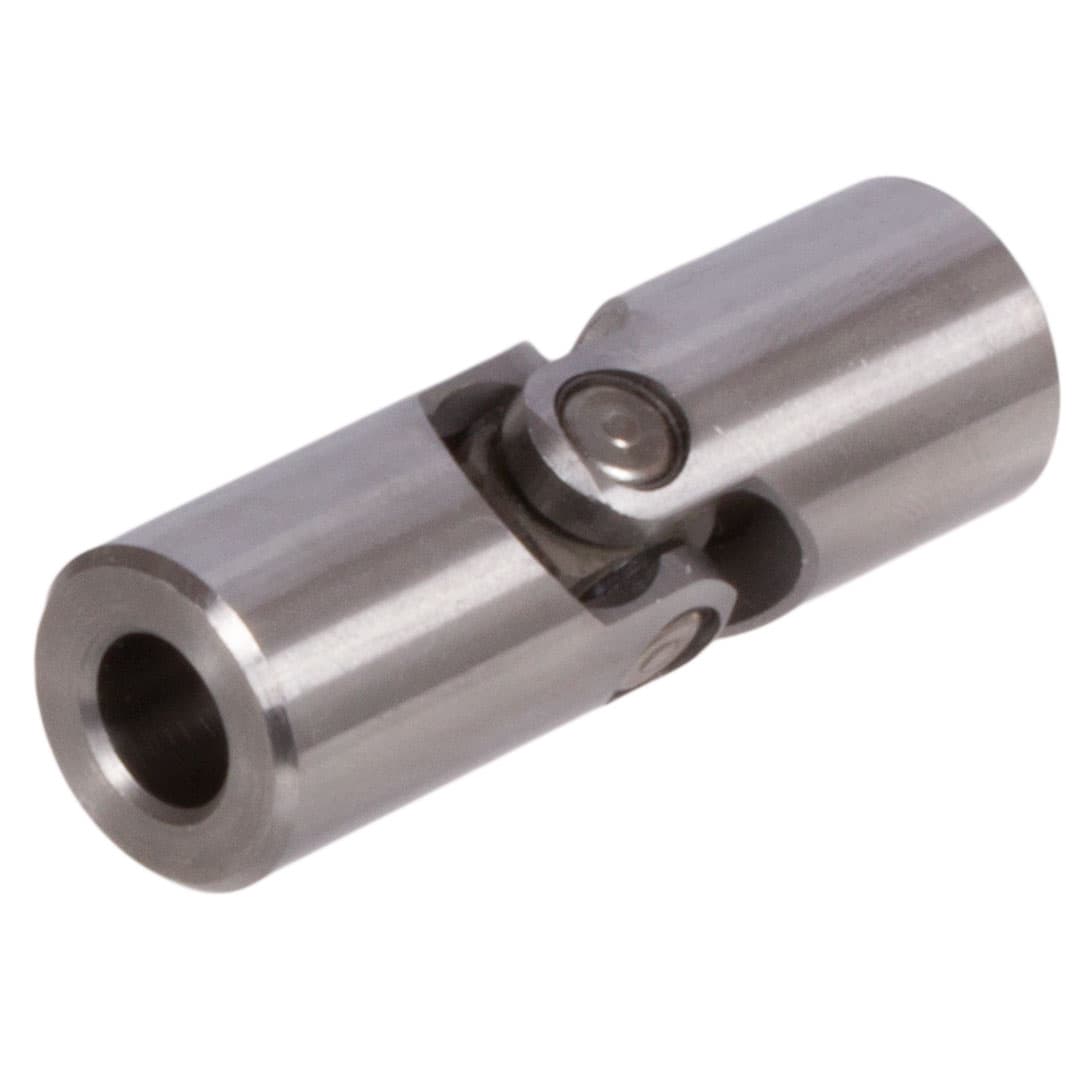

Precision single universal joint WEN with needle bearing DIN808 simple bore 30H7 material steel total length 166mm outer diameter 63mm
Manufacturer part no. 63116300
$147.70≈ 128.27 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €128.27 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €28.65 |
| Total delivered | €171.92 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.78 kg |
Other characteristics
| Bore | 30 mm |
| Max torque at 1 000 min 1 | 276 Nm |
| Max torque at 2 000 min 1 | 228 Nm |
| Max torque at 250 min 1 | 360 Nm |
| Max torque at 3 000 min 1 | 192 Nm |
| Max torque at 4 000 min 1 | 168 Nm |
| Max torque at 500 min 1 | 324 Nm |
| Outer diameter | 63 mm |
| Total length | 166 mm |
| Material | Steel |
| Surface | Blank |
Description
Material: Steel 35SMnPb10, Bearing Parts 18NiCrMo5Pb. Max. Operating Angle 45°. The needle-bearing universal joints have almost zero backlash, high accuracy and good turning properties. These special needle-rollers without cage can take high loads even at large operating angles. A special grinding process realizes a perfect parallelism of the axes and the single parts of the joints – which guarantees an extremely long service life. Optionally without or with keyway DIN 6885-1, on both sides.
