MÄDLERMÄDLER· Universal Joints

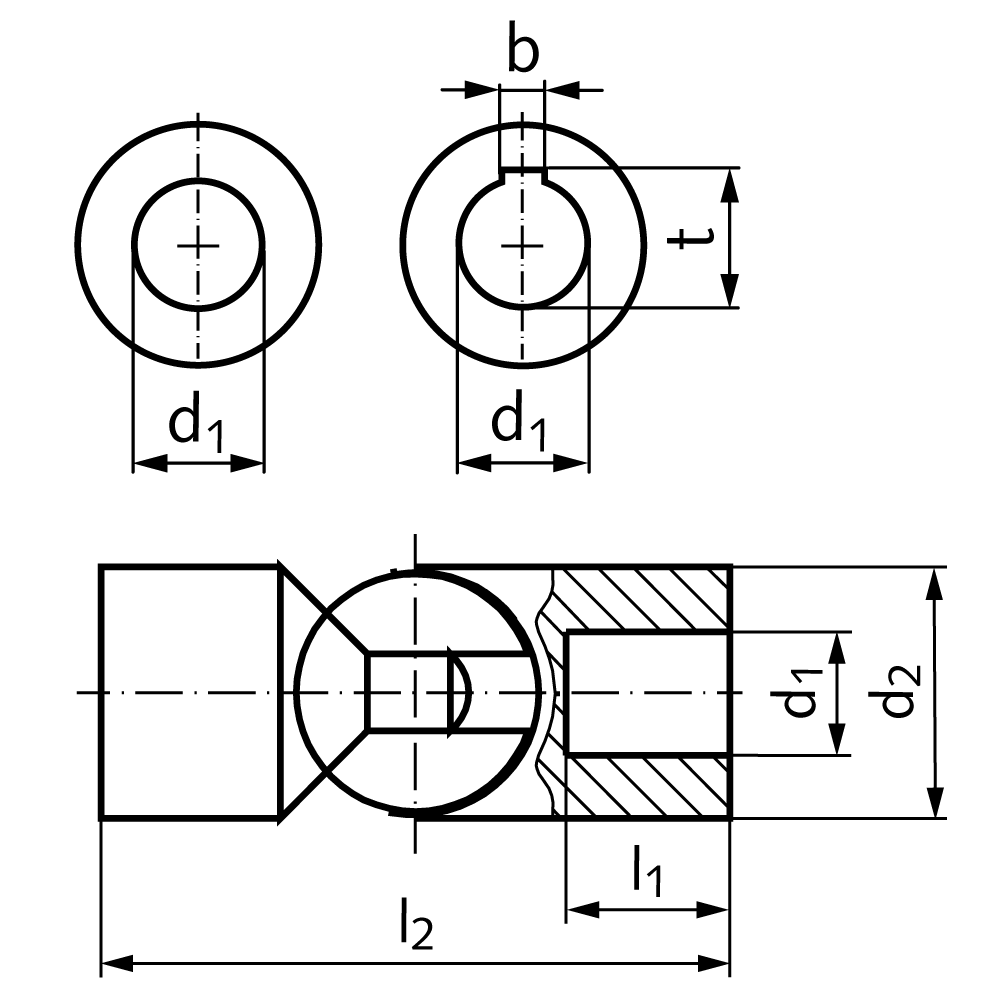

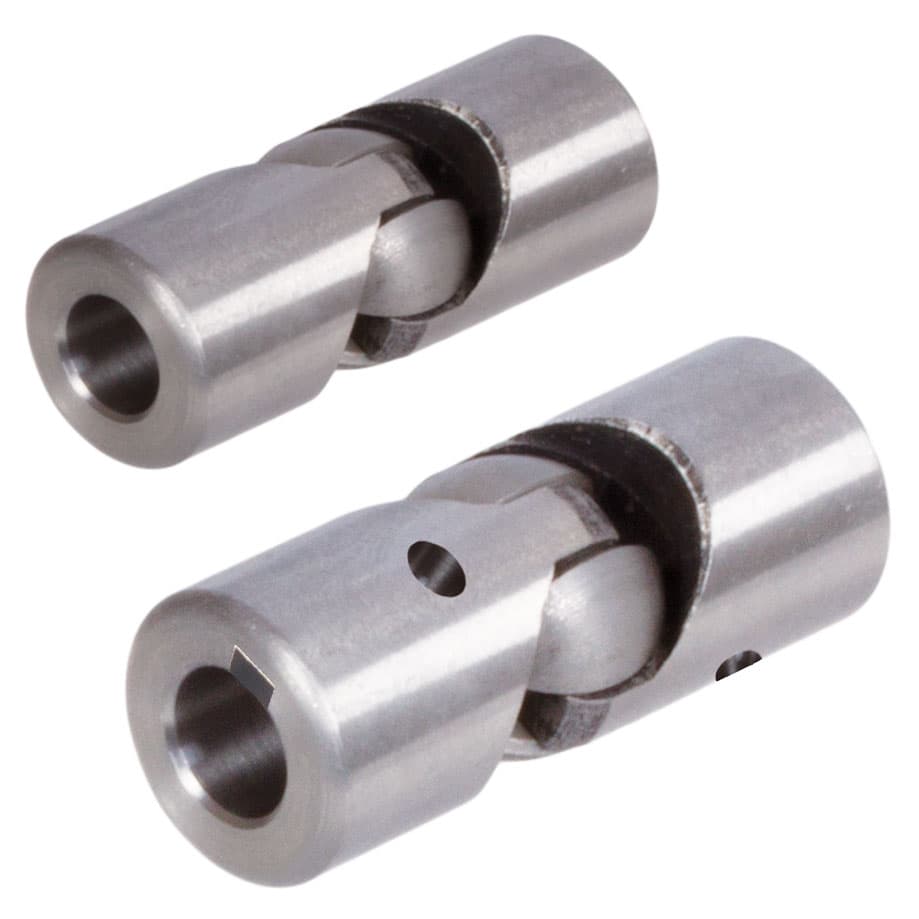

Ball joint RW bore 25H7 material steel outer diameter 50mm total length 125mm
Manufacturer part no. 63135000
$168.25≈ 146.11 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €146.11 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €32.22 |
| Total delivered | €193.33 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.3 kg |
Other characteristics
| Bore | 25 mm |
| Max torque | 290 Nm |
| Outer diameter | 50 mm |
| Total length | 125 mm |
| Material | Steel (12L13) |
| Surface | Blank |
Description
Material: Steel 11SMn30 (1.0715). Max. Operating Angle 35°. Temperature range: -70°C to +160°C. Optionally without or with keyway DIN 6885-1, on both sides. The ball joints RW are simple, sliding-contact bearing elements and can only be used at low speeds. The respective maximum speeds depend on operating angle and load, but should possibly not exceed 500 rpm. The maximum torque values listed in the table are limits, which must also never be exceeded. They may only be used to their full extend with intermittent operation or at low speed and small operating angle. Can be used from -70° to +160°C.
