MÄDLERMÄDLER· Universal Joints

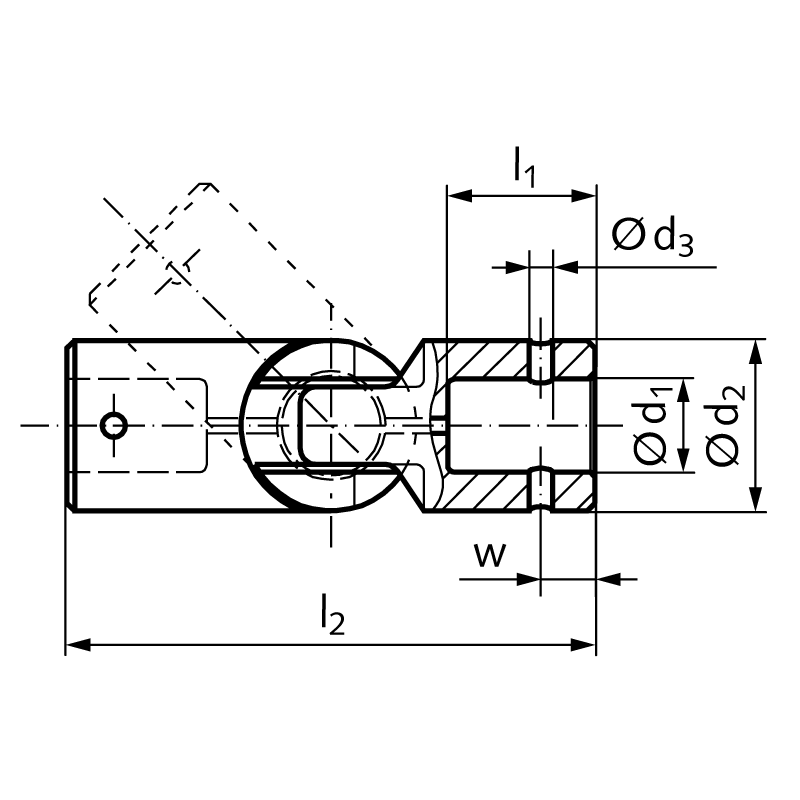

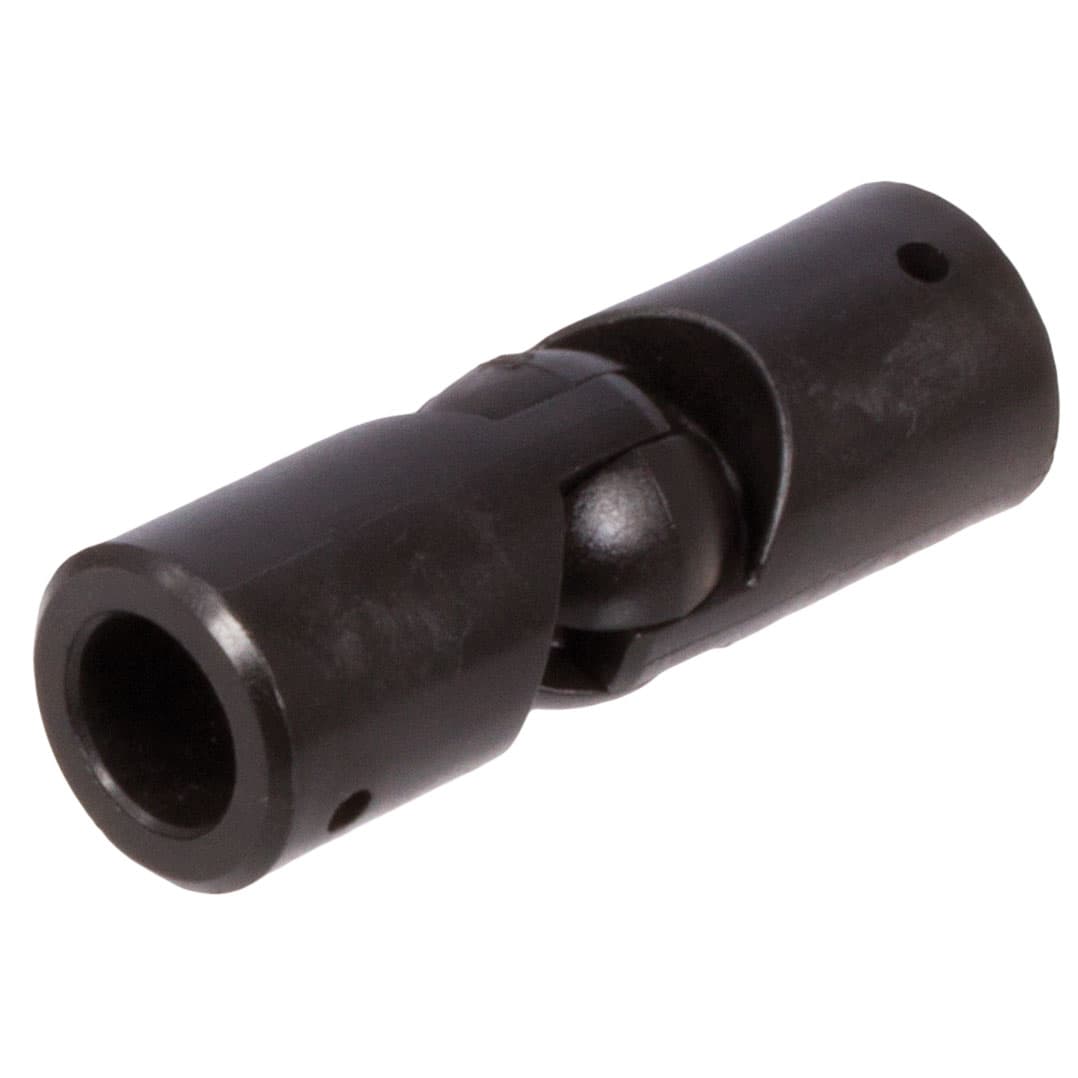

Ball joint GF bore 12mm total length 61mm outer diameter 20mm material: plastic
Manufacturer part no. 63142000
$17.38≈ 15.09 €
In stock — 23 unitslead time 14 d
Estimated landed cost
| Item | €15.09 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.02 |
| Total delivered | €36.11 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 18 g |
Other characteristics
| Max torque | 15 Nm |
| Speed at operation angle 10 max. | 1 000 |
| Total length | 61 mm |
| Bore | 12±0.05 mm |
| Material | Polyacetal |
| Outer diameter | 20±0.2 mm |
| Surface | Blank |
Description
Material: Polyacetal, glas-fibre reinforced. Temperature range: -30°C to +50°C. Max. operating angle 35°. Dimensioned according to DIN 808. For the joining taper pins, dowel pins or grooved pins can be used. The joints are maintenance free and can therefore be used in difficult-to-access parts of the machine. Other advantages compared to steel are less weight, corrosion resistance and chemical resistance.
