MÄDLERMÄDLER· Universal Joints

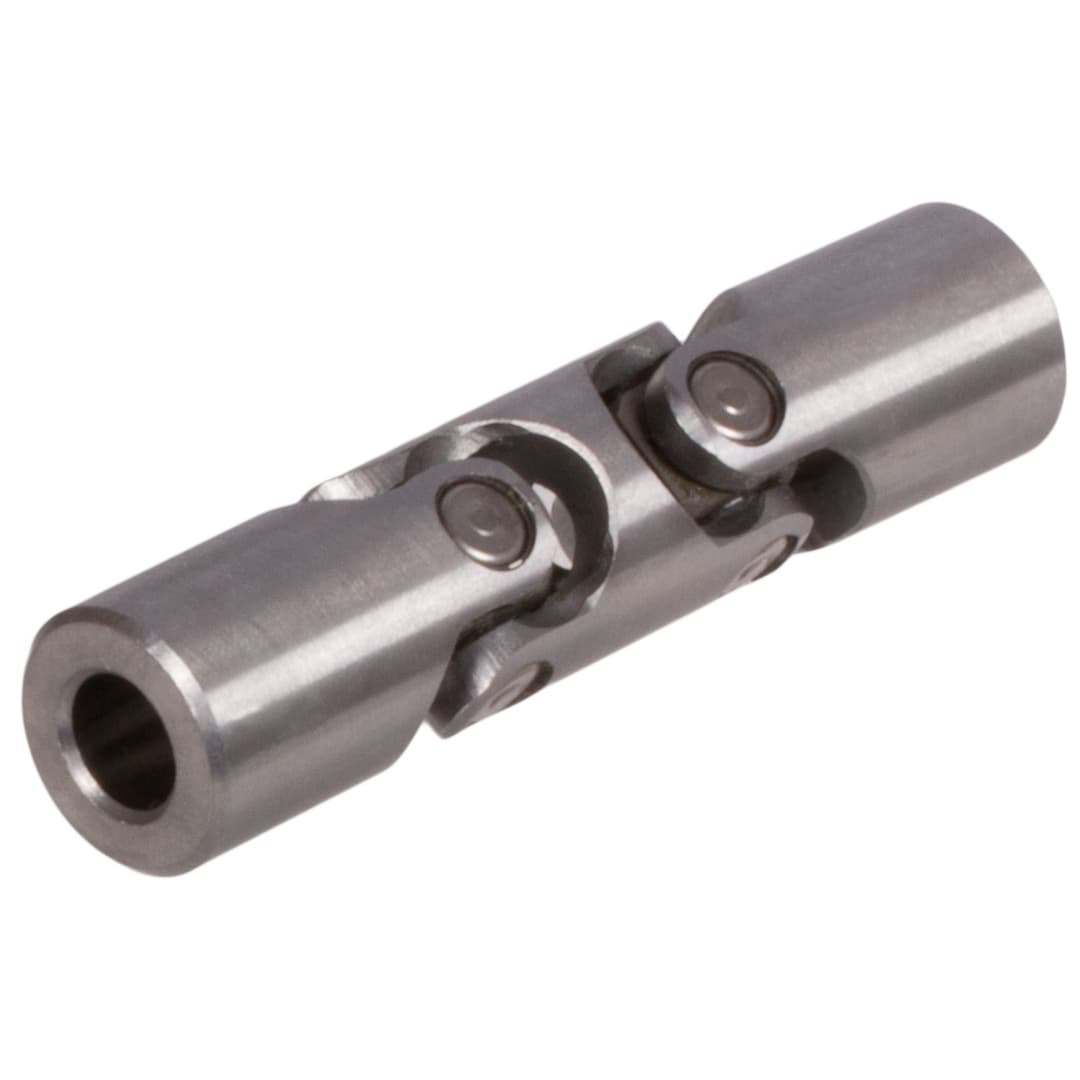

Precision double universal joint WDN with needle bearing DIN808 bore 14H7 with keyway DIN 6885-1 tolerance JS9 on both sides
Manufacturer part no. 63162600N
$162.59≈ 141.20 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €141.20 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €31.24 |
| Total delivered | €187.44 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 240 g |
Other characteristics
| Bore | 14 mm |
| Keyway width | 5 mm |
| Max torque at 1 000 min 1 | 28.8 Nm |
| Max torque at 2 000 min 1 | 26.4 Nm |
| Max torque at 250 min 1 | 40.8 Nm |
| Max torque at 3 000 min 1 | 24 Nm |
| Max torque at 4 000 min 1 | 21.6 Nm |
| Max torque at 500 min 1 | 34.8 Nm |
| Outer diameter | 25 mm |
| Total length | 104 mm |
| Material | Steel |
| Surface | Blank |
Description
Material: Steel 35SMnPb10. Bearing parts 18NiCrMo5Pb. Max. Operating Angle 90°. The needle-bearing universal joints have almost zero backlash, high accuracy and good turning properties. These special needle-rollers without cage can take high loads even at large operating angles. A special grinding process realizes a perfect parallelism of the axes and the single parts of the joints – which guarantees an extremely long service life. Optionally without or with keyway DIN 6885-1, on both sides.
