MÄDLERMÄDLER· Universal Joints

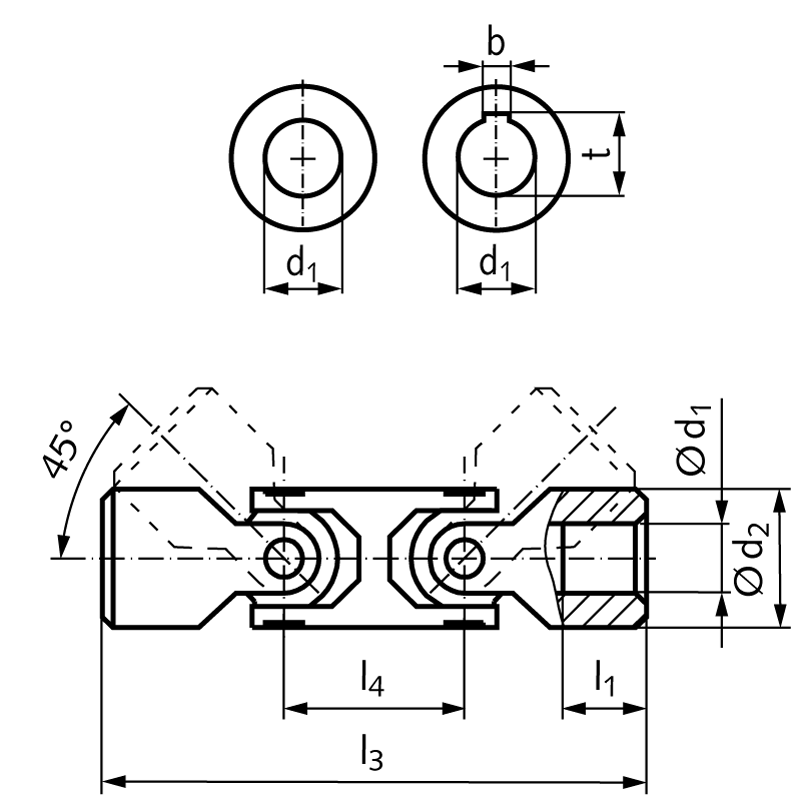

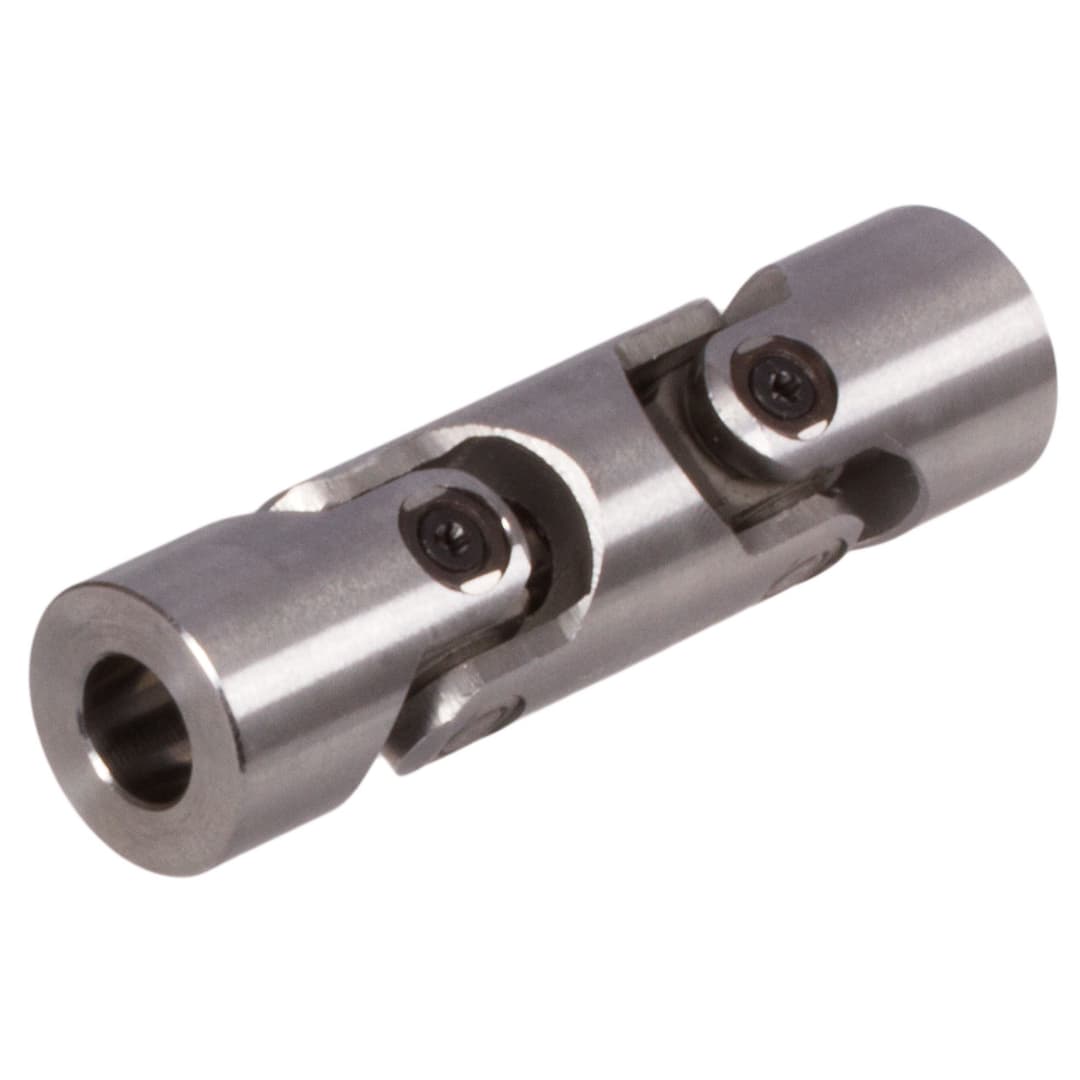

Precision double universal joint WD DIN808 double bore 35H7 material steel total length 212mm outer diameter 78mm
Manufacturer part no. 63177000
$423.02≈ 367.36 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €367.36 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €76.47 |
| Total delivered | €458.83 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4.01 kg |
Other characteristics
| Bore | 35 mm |
| Max torque at 100 min 1 | 593 Nm |
| Max torque at 200 min 1 | 390 Nm |
| Max torque at 300 min 1 | 296 Nm |
| Max torque at 400 min 1 | 226.2 Nm |
| Max torque at 500 min 1 | 187.2 Nm |
| Outer diameter | 70 mm |
| Total length | 212 mm |
| Material | Steel |
| Surface | Blank |
Description
Material: Steel 35SMnPb10. Bearing parts 18NiCrMo5Pb. Max. Operating Angle 90°. These single and double universal joints feature a simple design with very small tolerances and high precision and performance. A special grinding process realizes a perfect parallelism of the axes and the single parts of the joints – this guarantees an extremely long service life. All contact surfaces are hardened, ground and lapped. These universal joints are used at high torques and high speeds up to max. 800 rpm. Optionally without or with keyway DIN 6885-1, on both sides.
