MÄDLERMÄDLER· Universal Joints

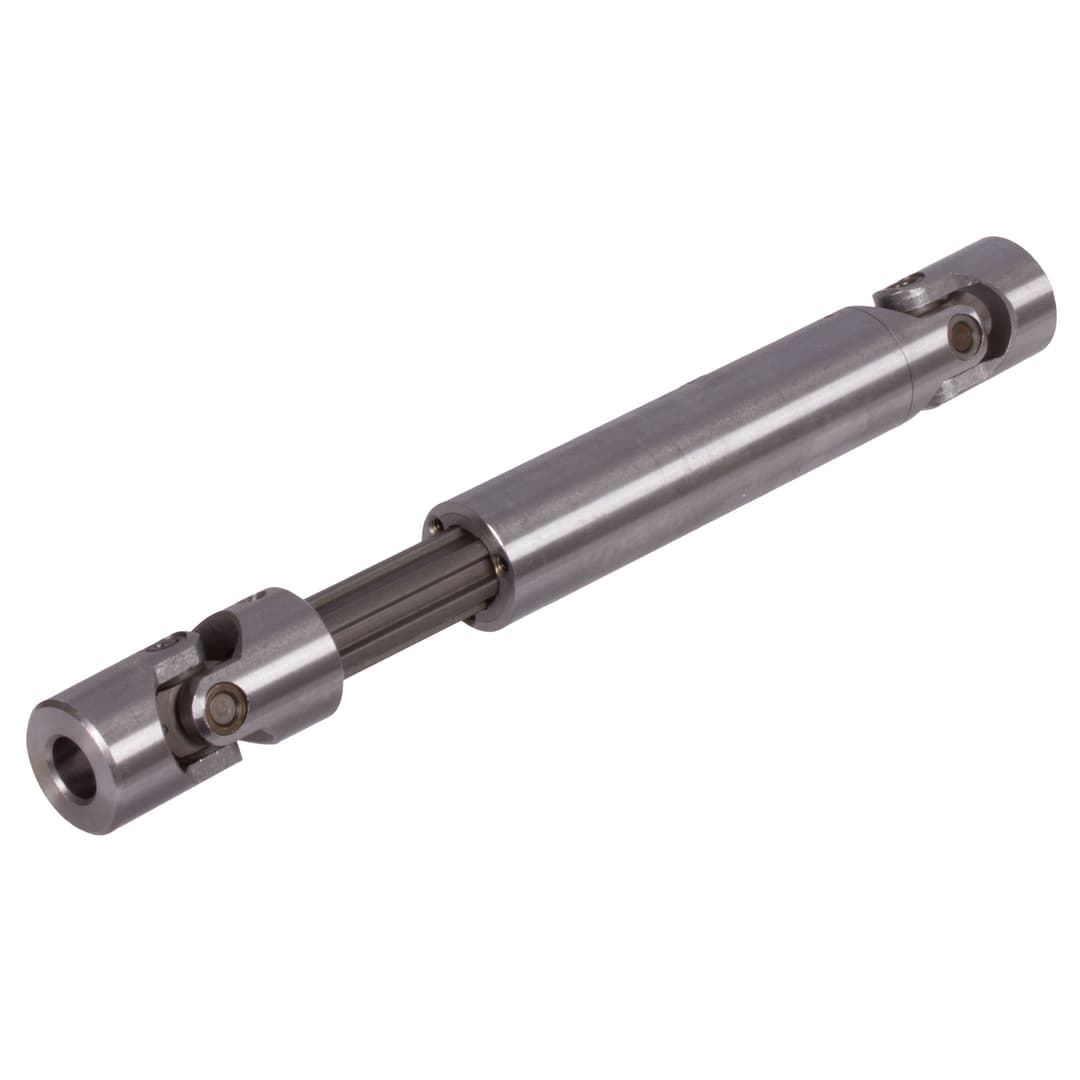

Slip shaft with joints PW both sides bore 22H7 telescoped length 330mm max. length 430mm steel outer diameter 47mm
Manufacturer part no. 63184700
$357.54≈ 310.50 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €310.50 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €65.10 |
| Total delivered | €390.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 3.33 kg |
Other characteristics
| Bore | 22 mm |
| Extended length | 430 mm |
| Max torque at 100 min 1 | 390 Nm |
| Max torque at 200 min 1 | 249.6 Nm |
| Max torque at 300 min 1 | 187.2 Nm |
| Max torque at 400 min 1 | 156 Nm |
| Max torque at 500 min 1 | 124.8 Nm |
| Max torque at 700 min 1 | 93.6 Nm |
| Outer diameter | 47 mm |
| Retracted length | 330 mm |
| Material | Steel |
| Surface | Blank |
Description
Material: Steel 35SMnPb10. Bearing parts 18NiCrMo5Pb. Spline shaft C40. Max. Operating Angle per Joint 45°. Other lengths on request. Optionally without or with keyway DIN 6885-1, on both sides.
