MÄDLERMÄDLER· Universal Joints

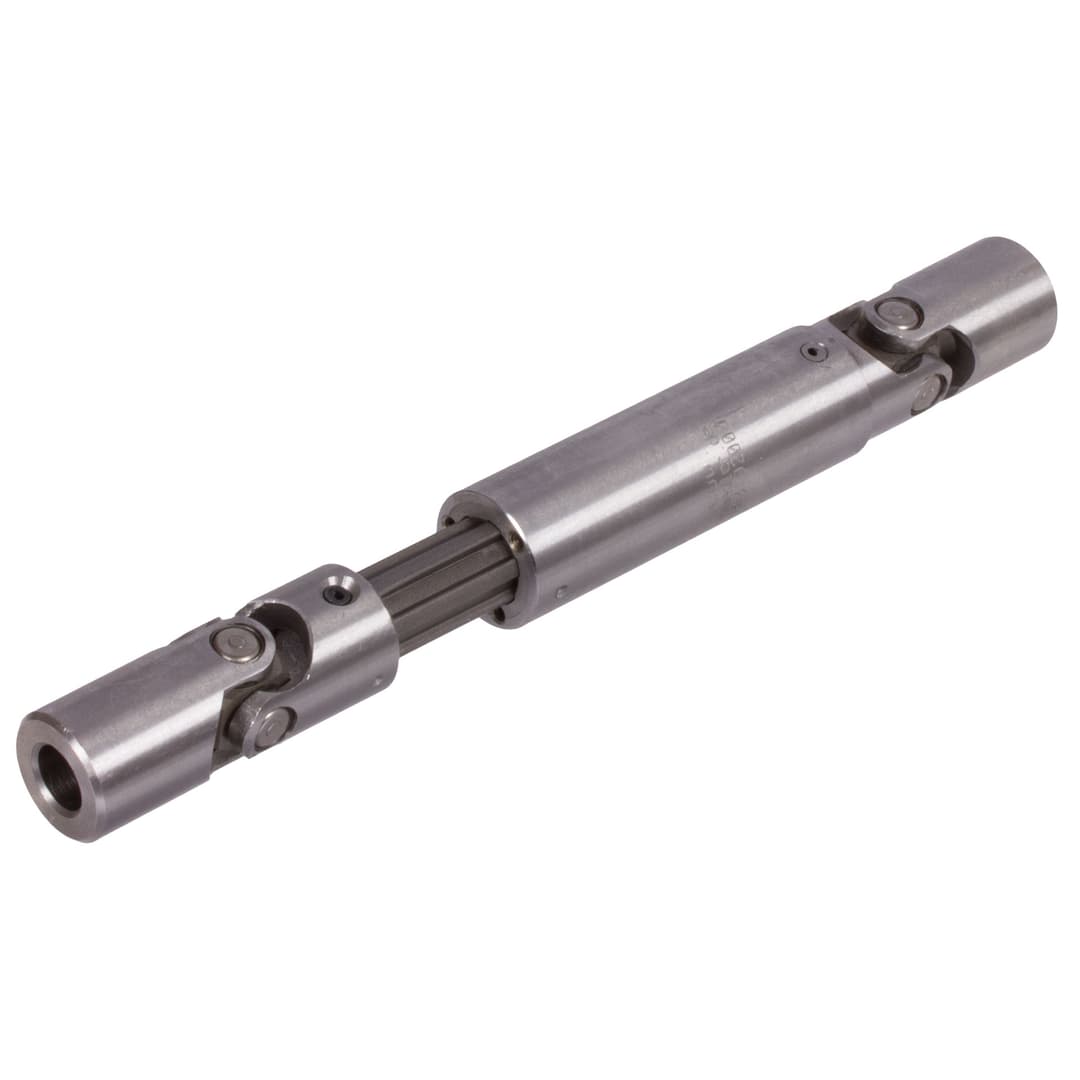

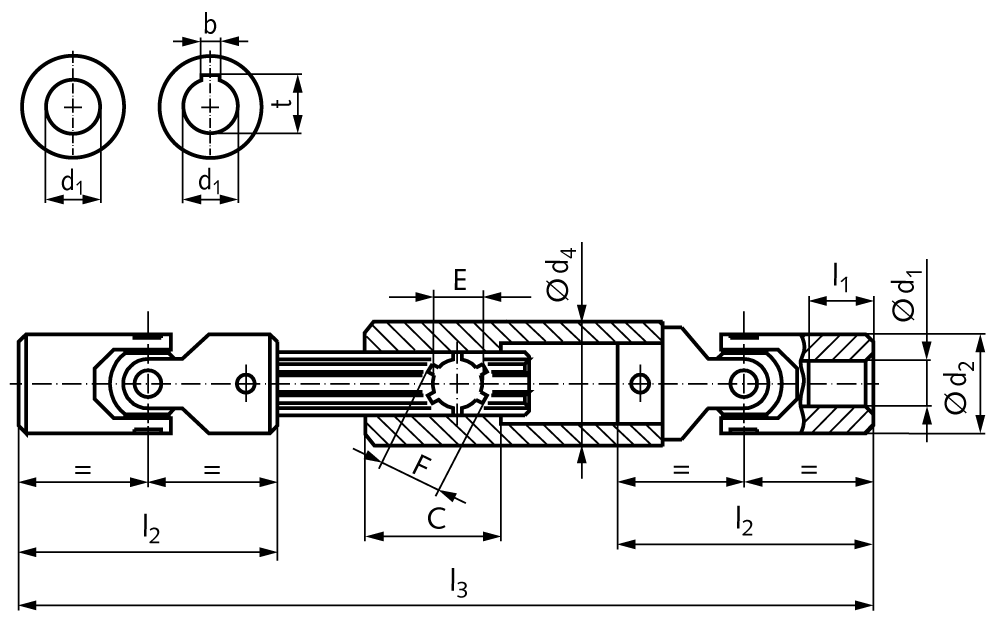

Slip shaft with joints PWN with needle bearings bore 16H7 with keyway DIN 6885-1 tolerance JS9 on both sides min. length 250mm max. length 320mm steel
Manufacturer part no. 63193200N
$306.84≈ 266.47 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €266.47 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €56.29 |
| Total delivered | €337.76 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.15 kg |
Other characteristics
| Bore diameter | 16 mm |
| Max length | 320 mm |
| Max outer diameter | 32 mm |
| Max torque at 1 000 min 1 | 54 Nm |
| Max torque at 2 000 min 1 | 48 Nm |
| Max torque at 250 min 1 | 78 Nm |
| Max torque at 3 000 min 1 | 44.4 Nm |
| Max torque at 4 000 min 1 | 38.4 Nm |
| Max torque at 500 min 1 | 66 Nm |
| Telescoped length | 250 mm |
| Material | Steel |
| Surface | Blank |
Description
Material: Steel 35SMnPb10. Max. Operating Angle per Joint 45°. Other lengths on request. Optionally without or with keyway DIN 6885-1, on both sides.
