MÄDLERMÄDLER· Universal Joints

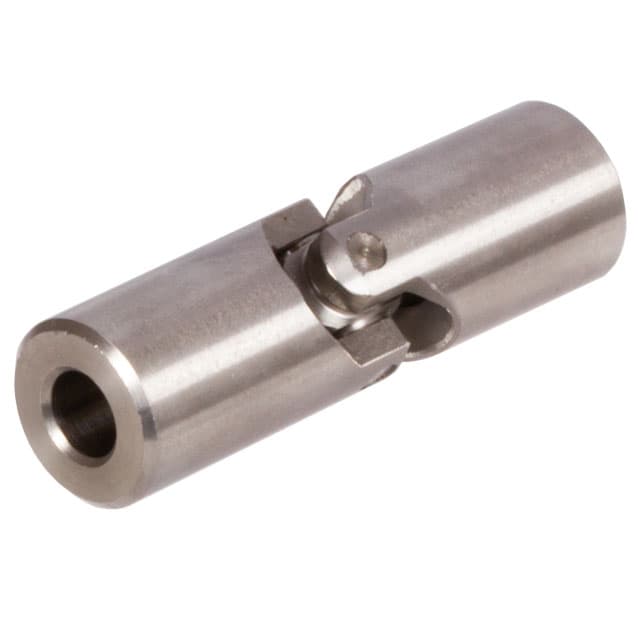

Precision single universal joint WER DIN808 bore 20H7 with keyway DIN 6885-1 tolerance JS9 on both sides stainless steel 1.4301
Manufacturer part no. 63199240N
$118.54≈ 102.94 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €102.94 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €23.59 |
| Total delivered | €141.53 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 750 g |
Other characteristics

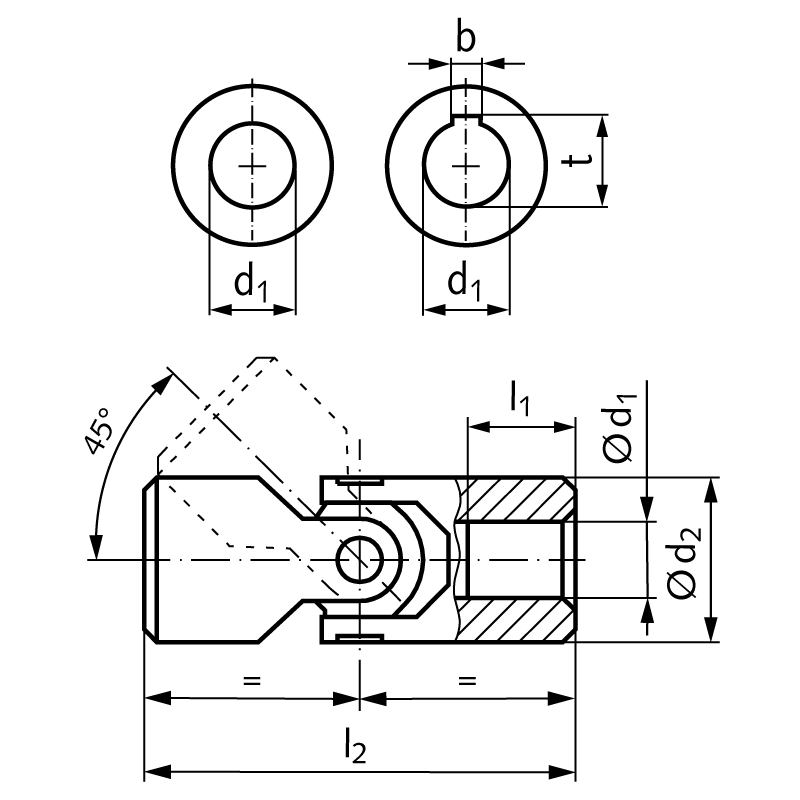

| Bore | 20 mm |
| Keyway width | 6 mm |
| Max torque at 100 min 1 | 175.5 Nm |
| Max torque at 200 min 1 | 126 Nm |
| Max torque at 300 min 1 | 87.9 Nm |
| Max torque at 400 min 1 | 69.9 Nm |
| Max torque at 500 min 1 | 61.9 Nm |
| Max torque at 700 min 1 | 43.9 Nm |
| Outer diameter | 40 mm |
| Total length | 108 mm |
| Material | Stainless steel (304) |
| Surface | Blank |
Description
Material: Stainless steel 1.4301 (AISI 304). Max. Operating Angle 45°. These single and double universal joints feature a simple design with very small tolerances and high precision and performance. These universal joints can be used at speeds up to max. 800 rpm. The torques amount to only about 50% of the standard version WE. At an operating angle of 45° only manual operation is possible. Optionally without or with keyway DIN 6885-1, on both sides.
