MÄDLERMÄDLER· Universal Joints

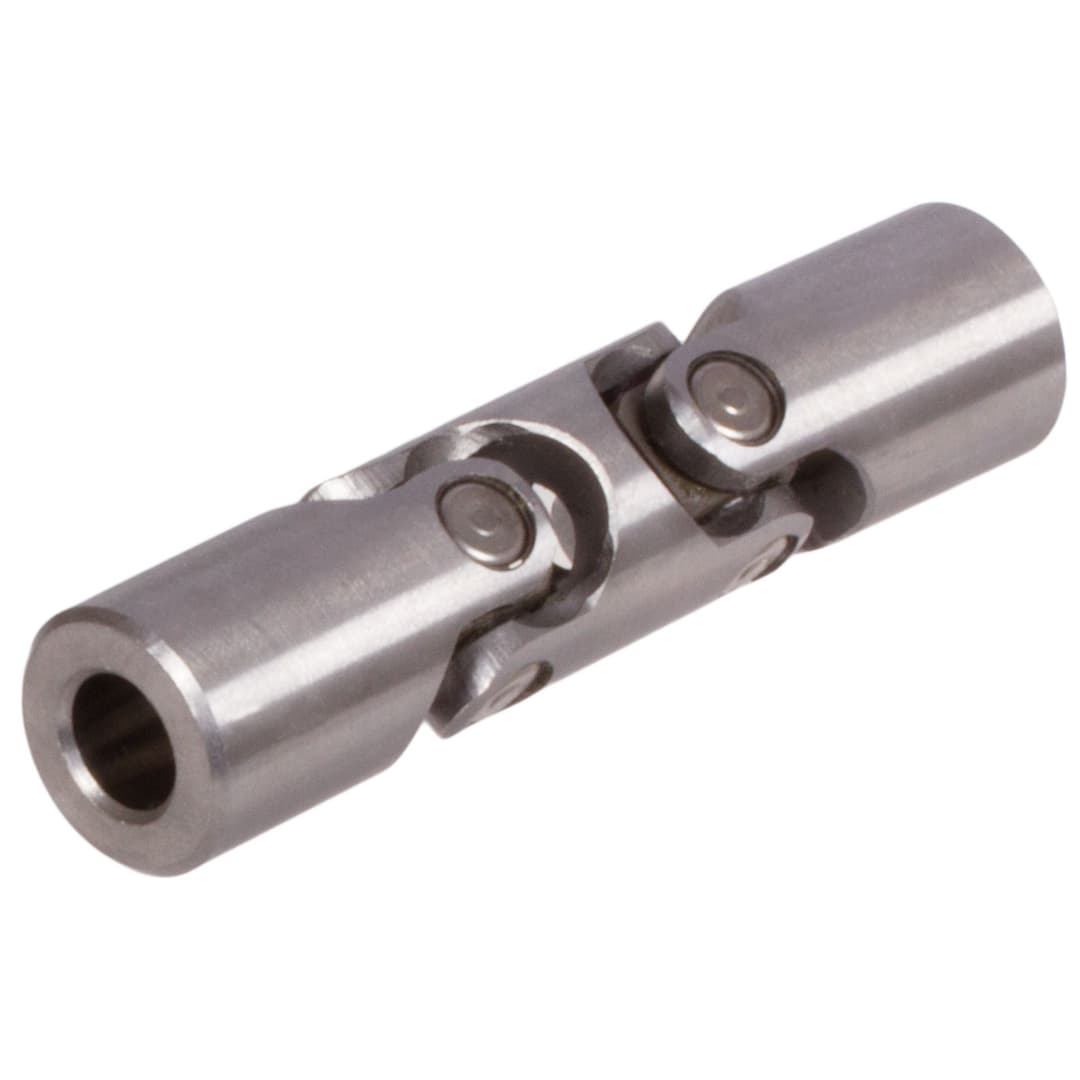

Precision double universal joint WDNR stainless steel 1.4301 with needle bearing made of bearing steel bore 20H7
Manufacturer part no. 63199640
$266.05≈ 231.05 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €231.05 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €49.21 |
| Total delivered | €295.26 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.01 kg |
Other characteristics
| Bore | 20 mm |
| Max torque at 1 000 min 1 | 96 Nm |
| Max torque at 2 000 min 1 | 77 Nm |
| Max torque at 250 min 1 | 134 Nm |
| Max torque at 3 000 min 1 | 67 Nm |
| Max torque at 3 600 min 1 | 62 Nm |
| Max torque at 500 min 1 | 115 Nm |
| Outer diameter | 40 mm |
| Total length | 156 mm |
| Material | Stainless steel (304) |
| Surface | Blank |
Description
Material: Stainless Steel 1.4301 (X5CrNi1810). Needle bearings from steel EN 10027-1 DC04 (1.0338) and 100Cr6. The combination of stainless steel body and standard needle bearings allows the use in applications where high speed and low backlash are required, even in demanding conditions. Max. Operating Angle 90°. The needle-bearing universal joints have almost zero backlash, high accuracy and good turning properties. These special needle-rollers without cage can take high loads even at large operating angles. A special grinding process realizes a perfect parallelism of the axes and the single parts of the joints – which guarantees an extremely long service life. Optionally without or with keyway DIN 6885-1, on both sides.
