MÄDLERMÄDLER· Universal Joints

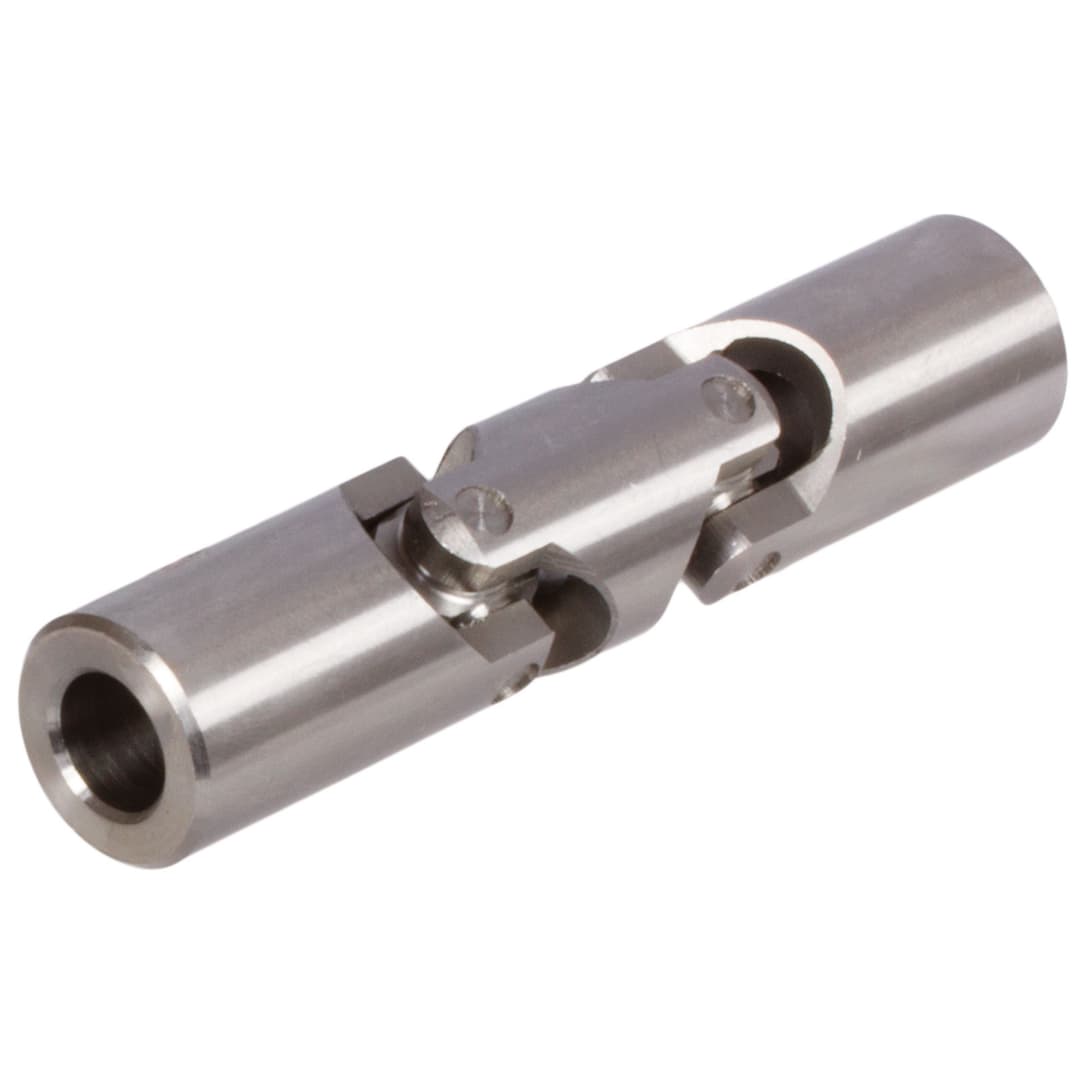

Precision double universal joint WDR DIN 808 bore 12H7 with keyway DIN 6885-1 tolerance JS9 on both sides stainless steel 1.4301
Manufacturer part no. 63199726N
$149.06≈ 129.45 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €129.45 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €28.89 |
| Total delivered | €173.34 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 200 g |
Other characteristics
| Bore | 12 mm |
| Keyway width | 4 mm |
| Max torque at 100 min 1 | 18.4 Nm |
| Max torque at 200 min 1 | 12.4 Nm |
| Max torque at 300 min 1 | 10.5 Nm |
| Max torque at 400 min 1 | 9.6 Nm |
| Max torque at 500 min 1 | 8.7 Nm |
| Max torque at 700 min 1 | 7.8 Nm |
| Max torque at 800 min 1 | 5.2 Nm |
| Outer diameter | 22 mm |
| Total length | 105 mm |
| Material | Stainless steel (304) |
| Surface | Blank |
Description
Material: Stainless steel 1.4301 (AISI 304). Max. Operating Angle 90°. These single and double universal joints feature a simple design with very small tolerances and high precision and performance. These universal joints can be used at speeds up to max. 800 rpm. The torques only amount to 90% of the single precision universal joints, stainless. At an operating angle of 45° only manual operation is possible. Optionally without or with keyway DIN 6885-1, on both sides.
