MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

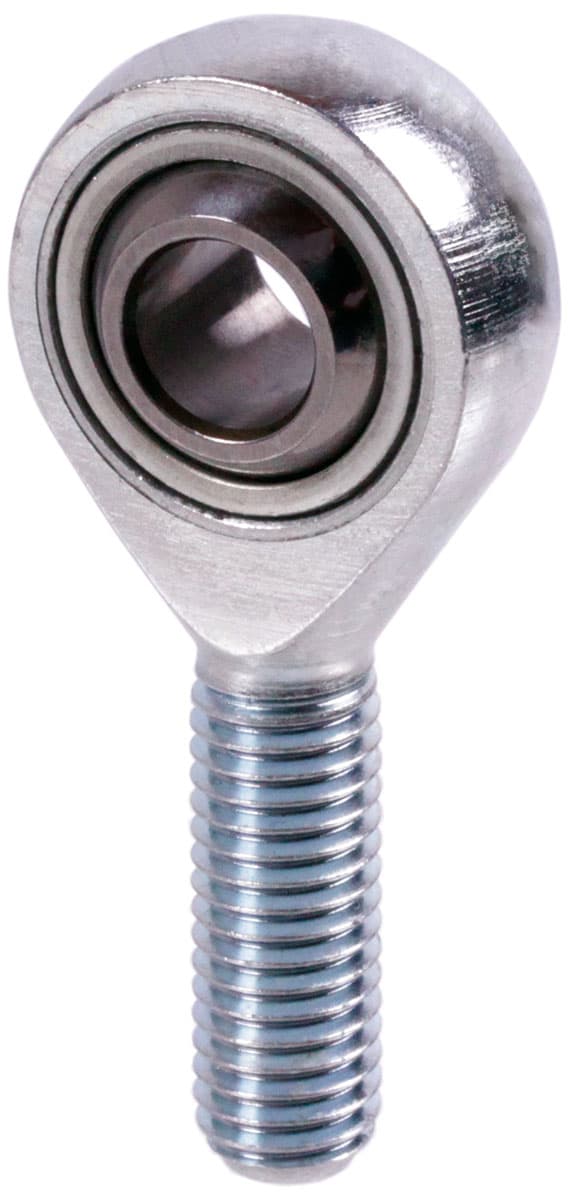

Rod end GT DIN ISO 12240-4 series K external thread M36x2 left maintenance-free
Manufacturer part no. 63293500
$155.21≈ 134.79 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €134.79 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €29.96 |
| Total delivered | €179.75 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.6 kg |
Other characteristics

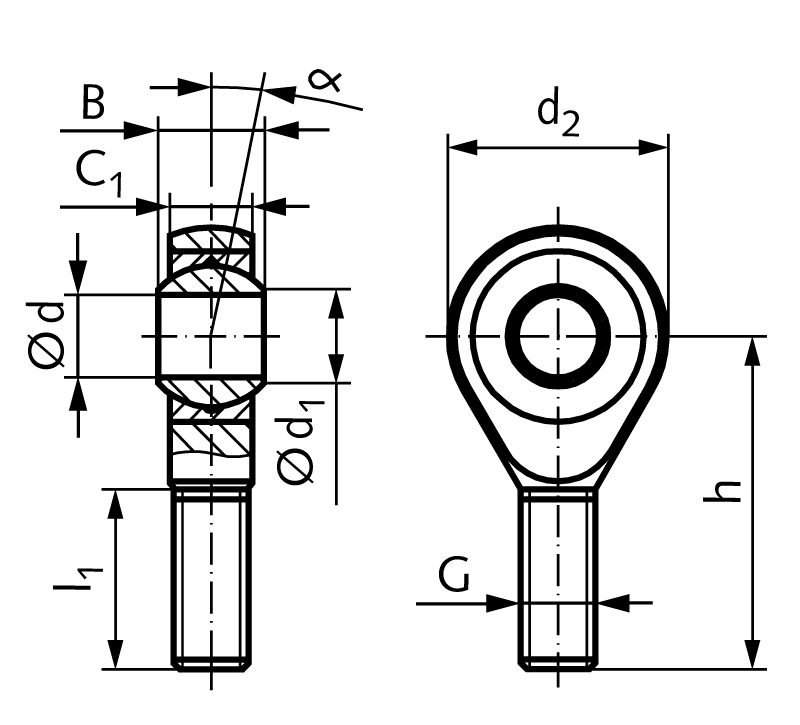

| Bore | 35 mm |
| Center distance to mounting surface | 125 mm |
| Outer diameter | 80 mm |
| Thread pitch | 2 mm |
| Tilt angel | 19 ° |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size | M 36×2 mm |
| Thread type | left |
Description
Material: Outer part: Zinc-plated. Boreholes up to 12mm: free-cutting steel, turned. From boreholes 14mm: Steel C22, forged. Inner ring: Roller bearing steel 100Cr6, hardened HRC 62+/-1, ground and polished. Bearing race: Steel with PTFE-lining. Wide version. Dimensions according to DIN ISO 12240-4 (DIN 648) series K. Thread either right-handed or left-handed. Heavy-duty rod ends for high radial and axial alternating loads. Steel on PTFE-lining. Maintenance-free. Sliding speed up to 10 m/min.
