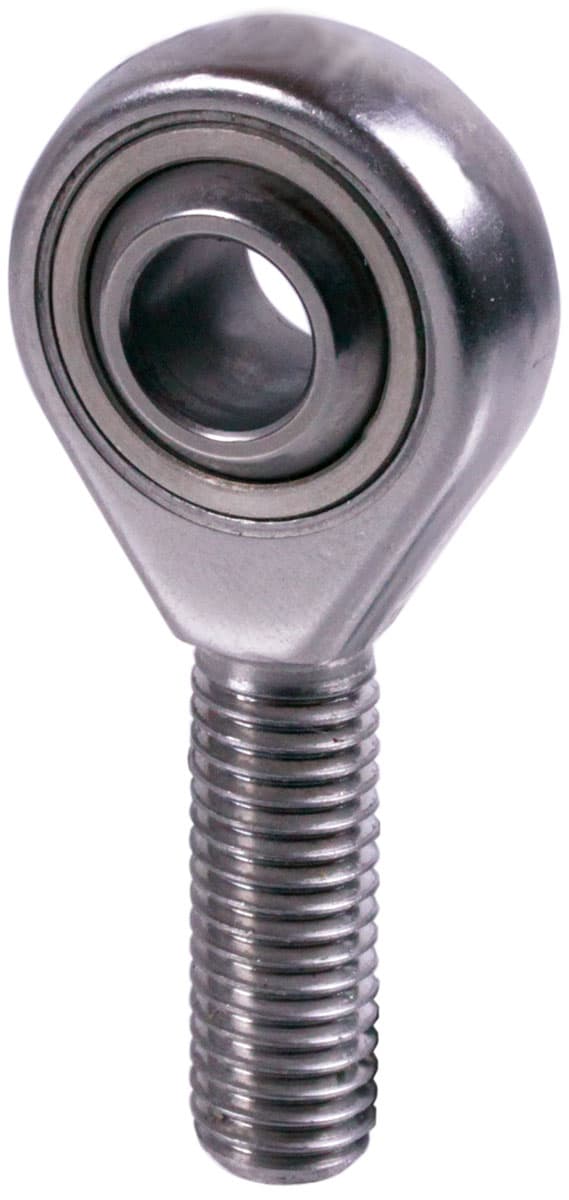

Rod end GT-R DIN ISO 12240-4 series K external thread M20x1.5 left maintenance-free stainless steel
Manufacturer part no. 63299920
$134.57≈ 116.86 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €116.86 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €26.37 |
| Total delivered | €158.23 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 348 g |
Other characteristics
| Bore | 20 mm |
| Center distance to mounting surface | 78 mm |
| Outer diameter | 50 mm |
| Thread pitch | 1.5 mm |
| Tilt angel | 14 ° |
| Material | Stainless steel |
| Surface | Polished |
| Thread size | M 20×1.5 mm |
| Thread type | left |
Description
Material: Outer part: Stainless steel 1.4057 (AISI 431), forged. Inner ring: Stainless steel 1.4034 (AISI 440 C), hardened, ground and polished. Bearing race: Stainless steel 1.4571 (AISI 316 Ti) with PTFE-Lining. Wide version. Dimensions according to DIN ISO 12240-4 (DIN 648) series K. Thread either right-handed or left-handed. Heavy-duty rod ends for high radial loads in corrosive areas. Stainless steel on PTFE-lining. Maintenance-free.
