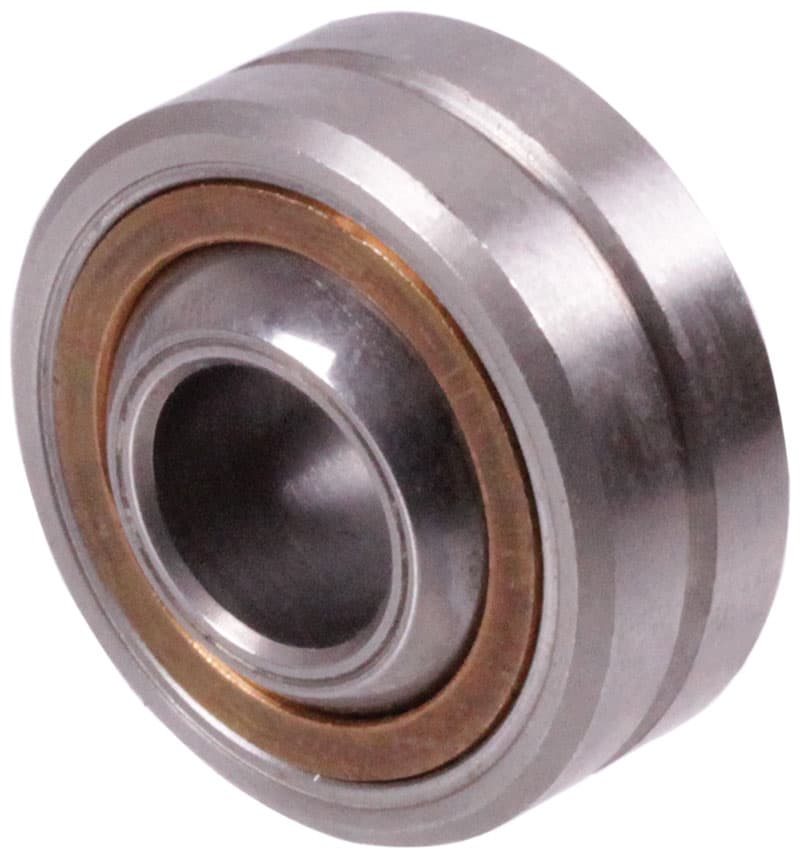

Spherical bearing DIN ISO 12240-1-K type S with outer ring relubricateable bore 14mm outer diameter 34mm == Initial lubrication required before use ==
Manufacturer part no. 63301400
$26.99≈ 23.44 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €23.44 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.69 |
| Total delivered | €46.13 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 83 g |
Other characteristics
| Bearing shell width | 13.5 mm |
| Inner diameter | 14 mm |
| Outer diameter da 0 0 012 | 34 mm |
| Tilt angel | 16 ° |
| Total width | 19 mm |
| Material | Steel / Brass |
| Surface | Polished / Zinc-plated |
Description
Material: Inner ring bearing steel 100Cr6, hardened, ground and polished. Bearing shell special brass CuZn38Al1. Outer ring steel 9SMnPb28K, zinc plated. Dimensions according to DIN ISO 12240-1 (DIN 648) series K (wide version). Can be re-lubricated. Initial lubrication required before use For high sliding speed up to 60 m/min. With outer ring (bigger outer diameter than version G or G..D).
