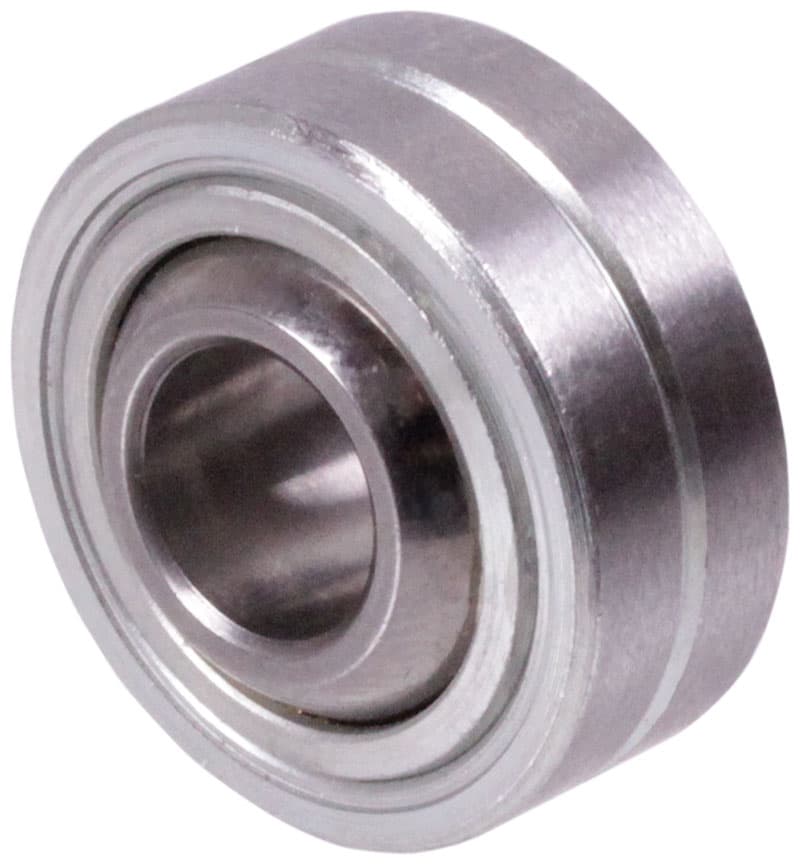

Spherical bearing DIN ISO 12240-1-K type SD with outer ring maintenance-free bore 10mm outer diameter 26mm
Manufacturer part no. 63311000
$21.19≈ 18.40 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €18.40 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.68 |
| Total delivered | €40.08 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 38 g |
Other characteristics
| Bearing shell width | 10.5 mm |
| Inner diameter | 10 mm |
| Outer diameter da 0 0 012 | 26 mm |
| Tilt angel | 13 ° |
| Total width | 14 mm |
| Material | Steel |
| Surface | Zinc-plated |
Description
Material: Inner ring bearing steel 100Cr6, hardened, ground and polished. Outer ring and bearing shell steel, zinc plated. With PTFE-lining. Dimensions according to DIN ISO 12240-1 (DIN 648) series K (wide version). Maintenance-free. Suitable for high dynamic loads. With outer ring (bigger outer diameter than version G or G..D).
