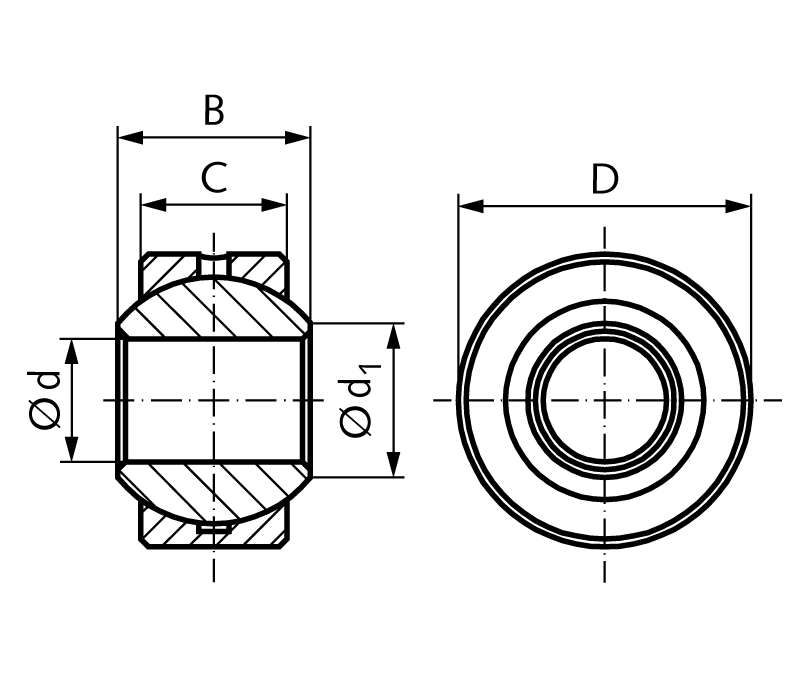

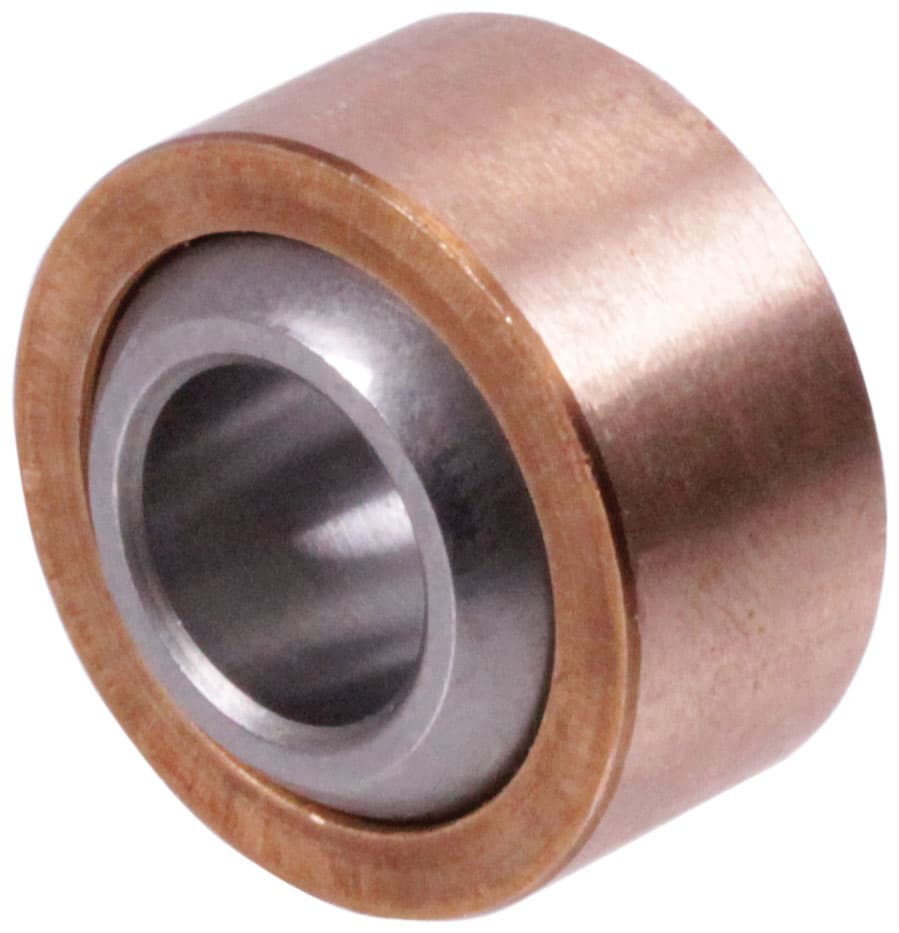

Spherical bearing DIN ISO 12240-1-K type G without outer ring relubricateable bore 5mm outer diameter 13mm == Initial lubrication required before use ==
Manufacturer part no. 63320500
$11.47≈ 9.96 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €9.96 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.99 |
| Total delivered | €29.95 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 5 g |
Other characteristics
| Bearing shell width | 6 mm |
| Inner diameter | 5 mm |
| Outer diameter | 13 mm |
| Tilt angel | 13 ° |
| Total width | 8 mm |
| Material | Steel / Brass |
| Surface | Polished |
Description
Material: Inner ring bearing steel 100Cr6, hardened, ground and polished. Bearing shell special brass CuZn38Al1. Dimensions according to DIN ISO 12240-1 (DIN 648) series K (wide version). Can be re-lubricated (from size size 6mm with lubrication hole). Initial lubrication required before use For high sliding speed up to 60 m/min. Without outer ring (smaller outer diameter than version S or S…D).
