MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

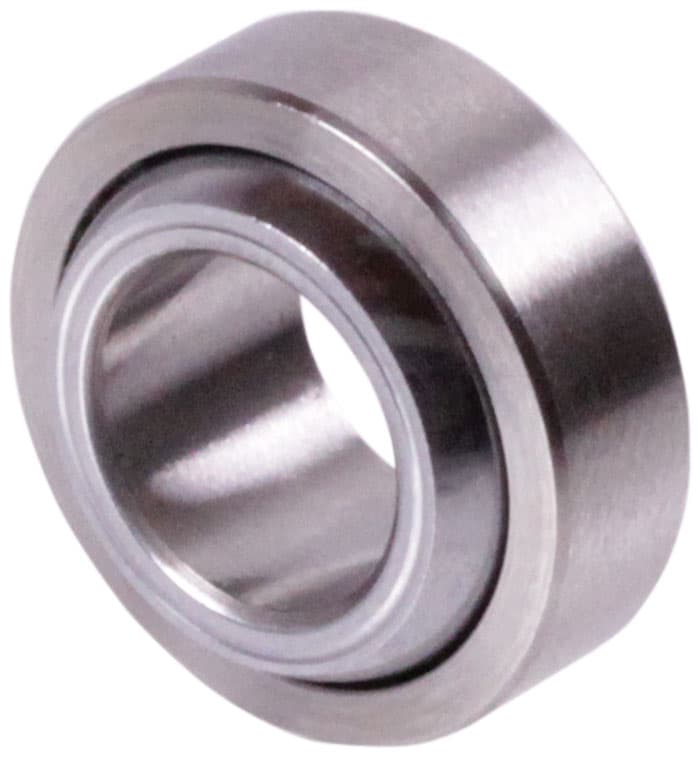

Radial spherical bearing DIN ISO 12240-1-E type GE…UK maintenance-free bore 12mm outer diameter 22mm
Manufacturer part no. 63371200
$16.50≈ 14.33 €
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €14.33 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.87 |
| Total delivered | €35.20 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

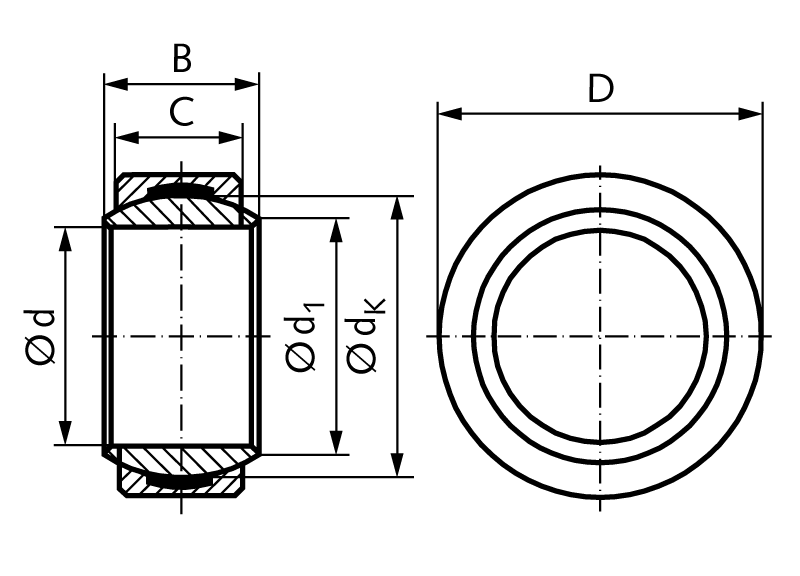

Specifications (automatically extracted)
Mechanical
| Weight | 17 g |
Other characteristics
| Bearing shell width | 7 mm |
| Inner diameter | 12 mm |
| Outer diameter | 22 mm |
| Outer diameter from inner ring | 18 mm |
| Tilt angel | 11 ° |
| Total width | 10 mm |
| Material | Steel (A295) |
| Surface | hard chrome-plated |
Description
Material: Inner ring bearing steel 100Cr6, hardened, ground, polished and hard chromed. Bearing shell from bearing steel, 100Cr6 with PTFE-lining. From size 35 in 2RS-version (sealed on both sides). DIN ISO 12240-1 (DIN 648) series E (small version). Maintenance-free. Suitable for high unidirectional load. Sliding speed up to 10 m/min.
