MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

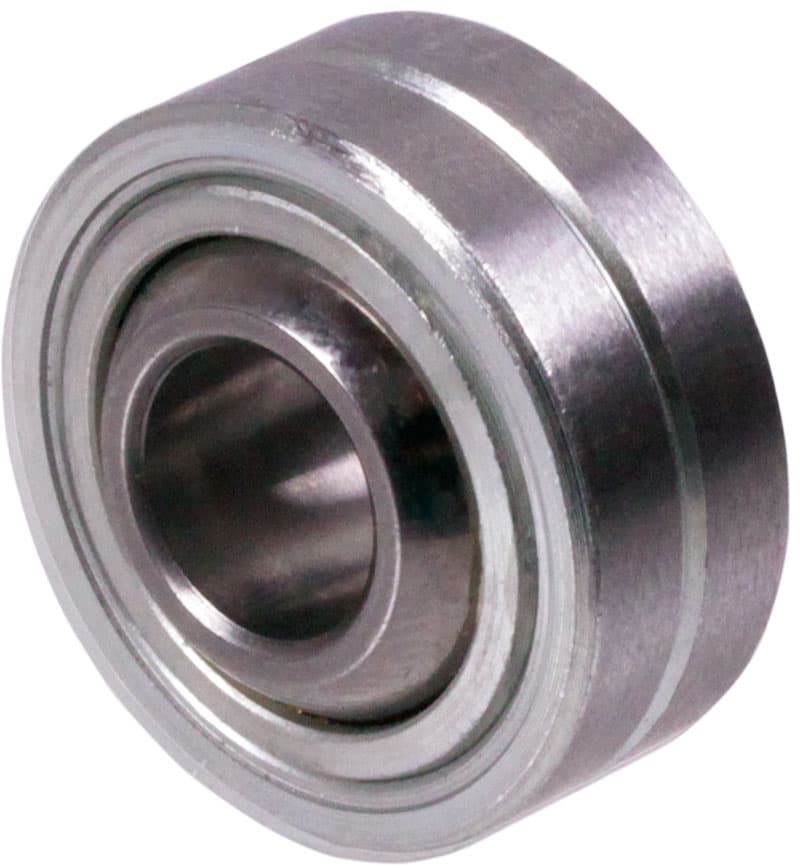

Spherical bearing DIN ISO 12240-1-K type SD with outer ring maintenance-free bore 25mm outer diameter 56mm stainless steel
Manufacturer part no. 63399125
$135.69≈ 117.84 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €117.84 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €26.57 |
| Total delivered | €159.41 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 375 g |
Other characteristics
| Bearing shell width | 22 mm |
| Inner diameter | 25 mm |
| Outer diameter da 0 0 012 | 56 mm |
| Tilt angel | 15 ° |
| Total width | 31 mm |
| Material | Stainless steel |
| Surface | Polished |
Description
Material: Inner ring stainless steel 1.4034 (AISI 440 C), hardened, ground and polished. Bearing shell stainless steel 1.4571 (AISI 316 Ti), with PTFE-lining. Outer ring stainless steel 1.4305 (AISI 303). Dimensions according to DIN ISO 12240-1 (DIN 648) series K (wide version). Maintenance-free. Suitable for high dynamic loads. With outer ring (bigger outer diameter than version G or G..D).
