MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

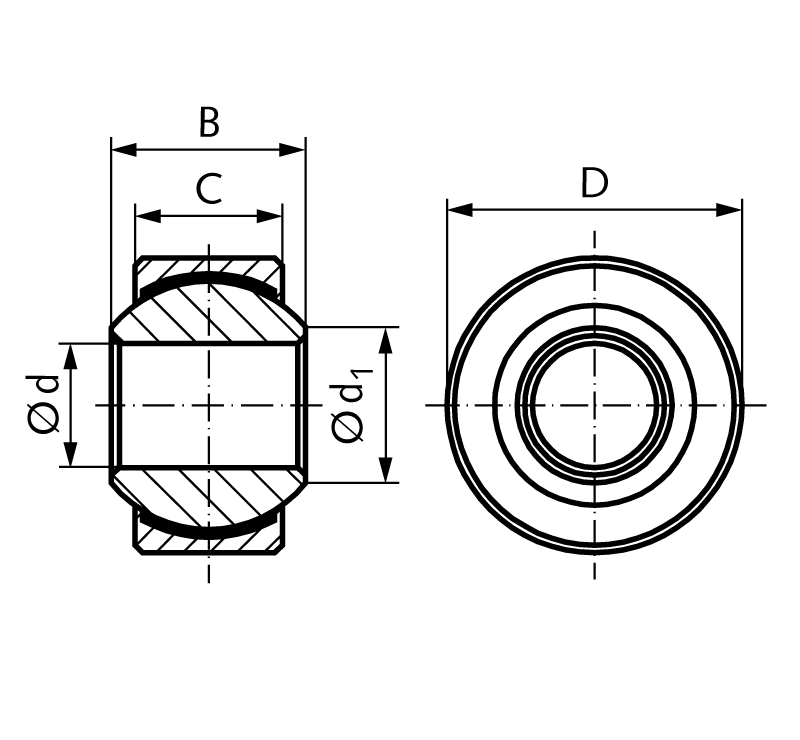

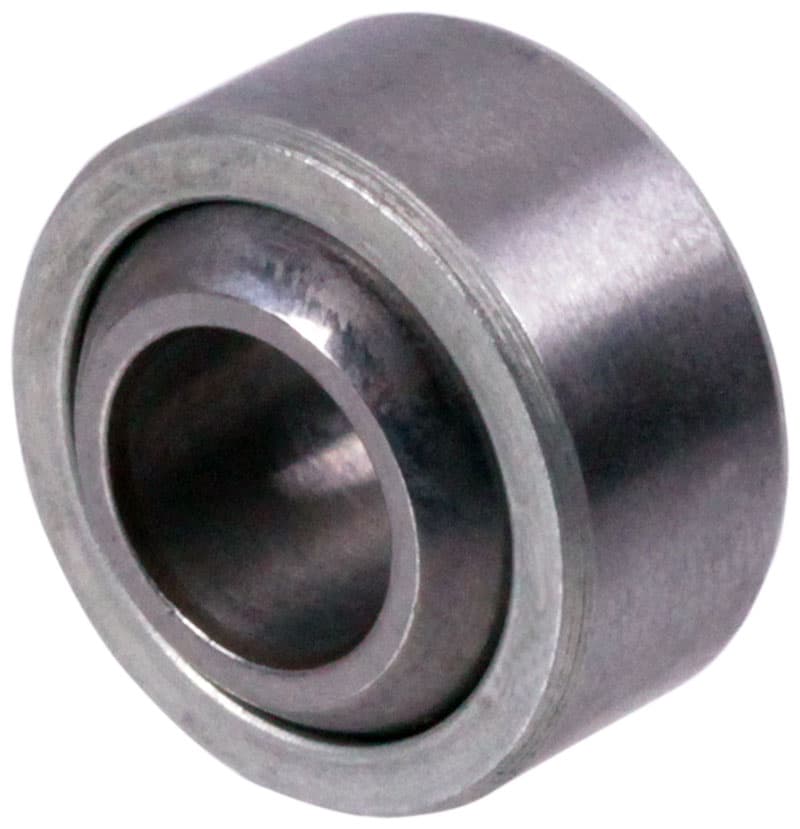

Spherical bearing DIN ISO 12240-1-K type GD without outer ring maintenance-free bore 25mm outer diameter 47mm stainless steel
Manufacturer part no. 63399325
$106.00≈ 92.05 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €92.05 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €21.41 |
| Total delivered | €128.46 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 230 g |
Other characteristics
| Bearing shell width | 22 mm |
| Inner diameter | 25 mm |
| Outer diameter | 47 mm |
| Tilt angel | 15 ° |
| Total width | 31 mm |
| Material | Stainless steel |
| Surface | Polished |
Description
Material: Inner ring stainless steel 1.4034 (AISI 440 C), hardened, ground and polished. Bearing shell stainless steel 1.4571 (AISI 316 Ti), with PTFE-lining. Dimensions according to DIN ISO 12240-1 (DIN 648) series K (wide version). Maintenance-free. Suitable for high dynamic loads. Without outer ring (smaller outer diameter than version S or S…D).
