MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

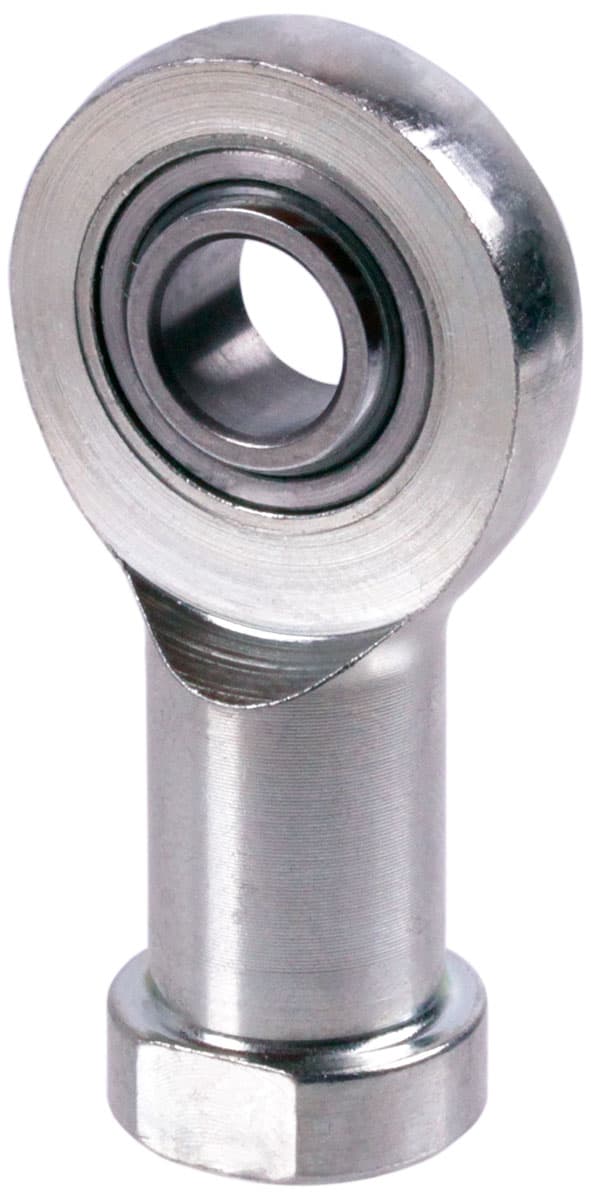

Rod end GEW DIN 12240-4 series E internal thread M14 right maintenance-free
Manufacturer part no. 63411500
$40.72≈ 35.36 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €35.36 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.07 |
| Total delivered | €60.43 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 180 g |
Other characteristics

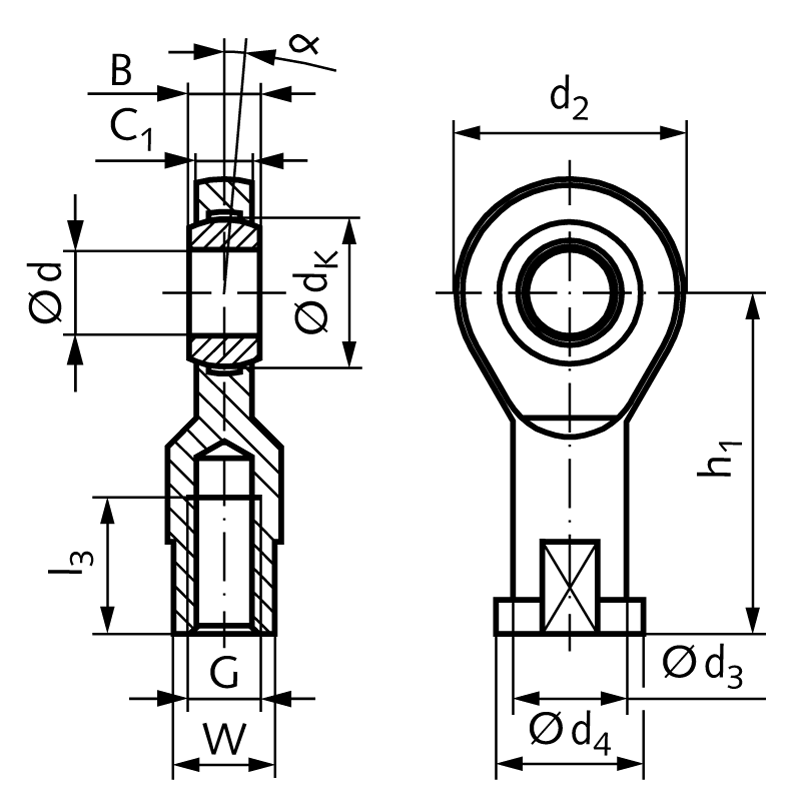

| Bore | 15 mm |
| Center distance to mounting surface | 61 mm |
| Outer diameter | 40 mm |
| Thread pitch | 2 mm |
| Tilt angel | 8 ° |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size | M 14 mm |
| Thread type | right |
Description
Material: Outer part: Zinc-plated. Boreholes up to 10mm: free-cutting steel, turned. From boreholes 12mm: Steel C45, forged. Inner ring: Roller bearing steel 100Cr6, hardened HRC 62+/-1, ground and polished. Bearing race: Steel with PTFE-lining. Small version. Dimensions according to DIN ISO 12240-4 (DIN 648) series E. Thread either right-handed or left-handed. Rod ends for high radial and axial alternating loads. Steel on PTFE-lining. Maintenance-fee. Sliding speed up to 10 m/min.
