MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

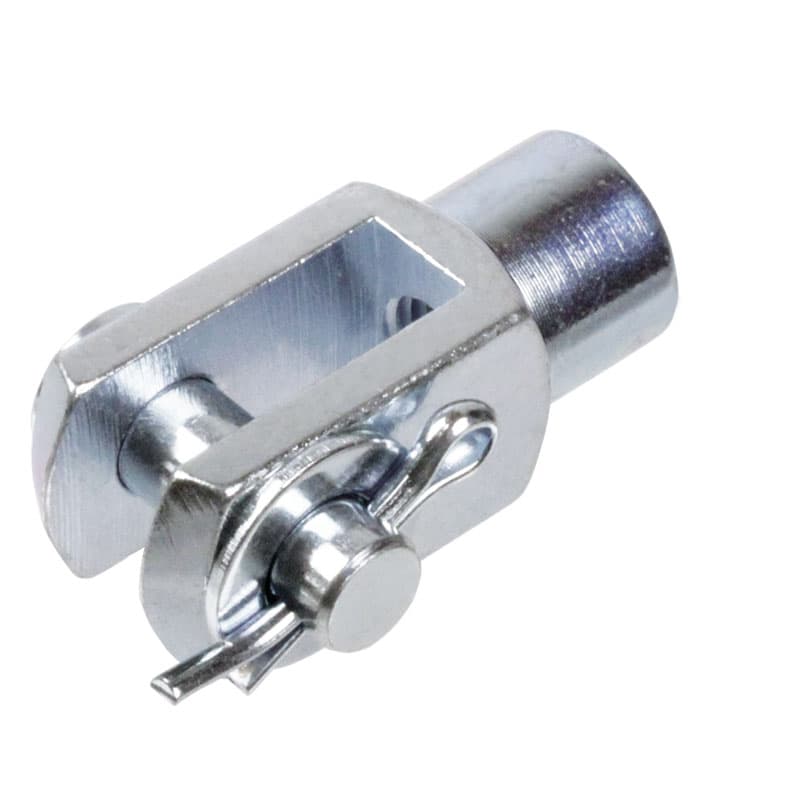

Clevis joint DIN 71752 with split pin size 10 x 20 right handed steel zinc-plated
Manufacturer part no. 63700900
$6.18≈ 5.37 €
In stock — 46 unitslead time 14 d
Estimated landed cost
| Item | €5.37 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.07 |
| Total delivered | €24.44 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 80 g |
Other characteristics
| Bolt diameter | 10 mm |
| Center distance to mounting surface | 40 mm |
| Inner width | 10 mm |
| Outer width | 20 mm |
| Pull out force | 10 208 N |
| Thread pitch | 1.5 mm |
| Material | Steel |
| Size | 10 x 20 |
| Surface | Zinc-plated |
| Thread size | M 10 mm |
| Thread type | right |
Description
Material: Steel zinc-plated. Design A: with split pin. Thread: Gewindeausführung rechts = thread right-handed. Gewindeausführung links = thread left-handed. Gabelkopf mit ES-Bolzen als Gabelgelenk verwendbar. * Größe 20 ist nicht in der DIN enthalten.
