MÄDLERMÄDLER· Fastening Elements

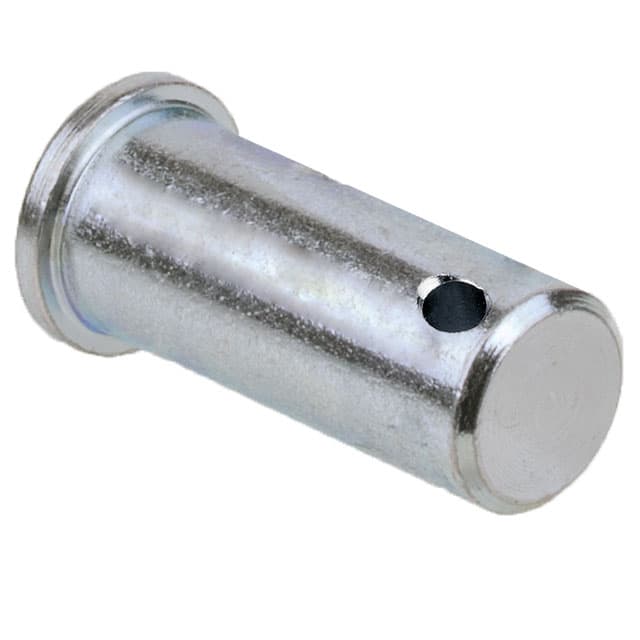

Bolt with pin hole size 25 x 67 x 59 steel zinc plated; for clevis 25 x 50
Manufacturer part no. 63740025
$10.77≈ 9.35 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €9.35 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.87 |
| Total delivered | €29.22 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 266 g |
Other characteristics

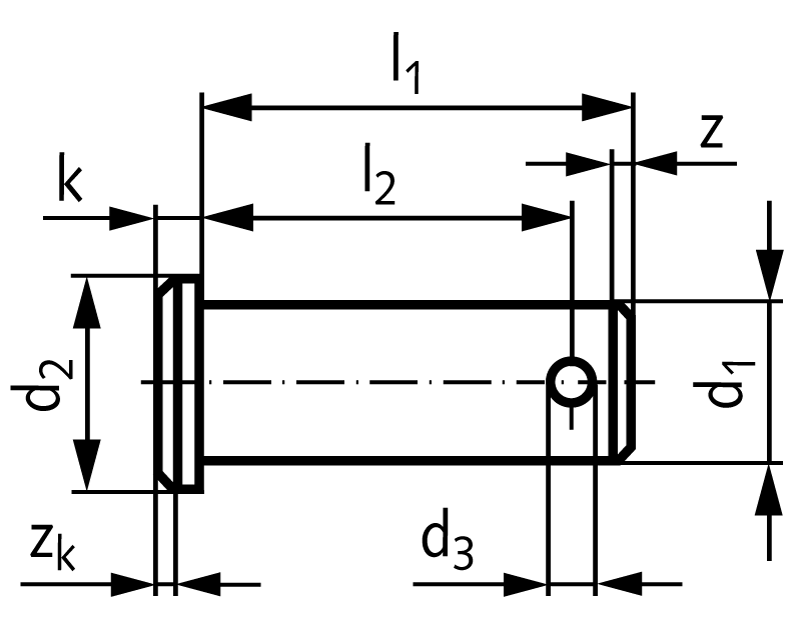

| D1 h11 | 25 mm |
| D2 h14 | 34 mm |
| D3 h14 | 6.3 mm |
| K js14 | 5.5 mm |
| L1 js15 | 67 mm |
| L2 0 5 | 59 mm |
| Z | 1.5 mm |
| Zk | 3 mm |
Description
Material: Steel 1.0044 (AISI 1020) zinc-plated. Bolts for transmission of radial forces with slightly part-turn movement, like in clevis joints. With pinhole for a split pin DIN EN ISO 1234 (formerly DIN 94) or a spring cotter pin. To be used with one washer DIN EN ISO 7089 (formerly DIN 125 A). The pin is only a protection against unwanted loosening. Not for axial load.
