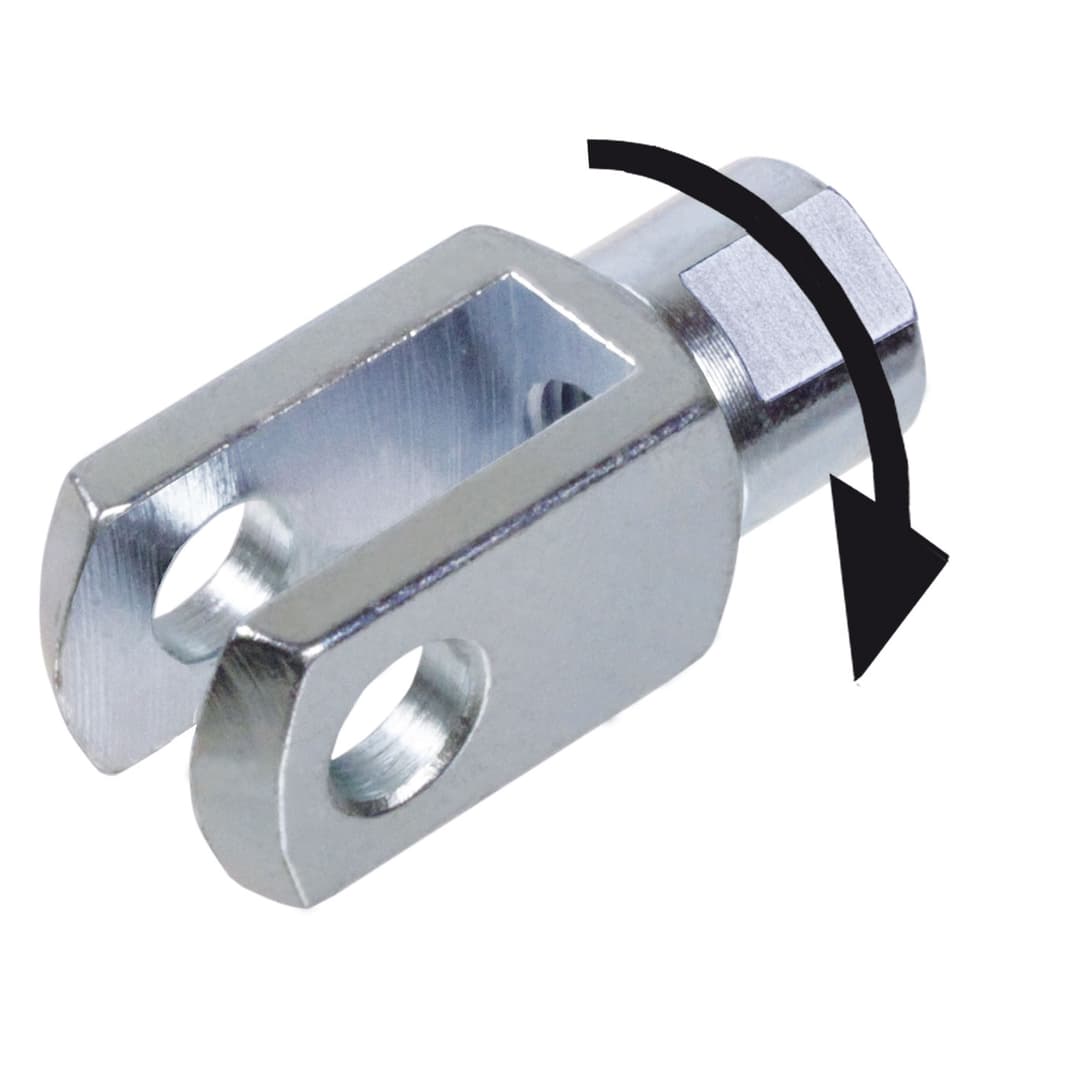

Clevis GD with rotating shaft similar DIN 71752 size 8×32 right handed steel zinc-plated
Manufacturer part no. 63755208
$6.22≈ 5.40 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €5.40 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.08 |
| Total delivered | €24.48 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

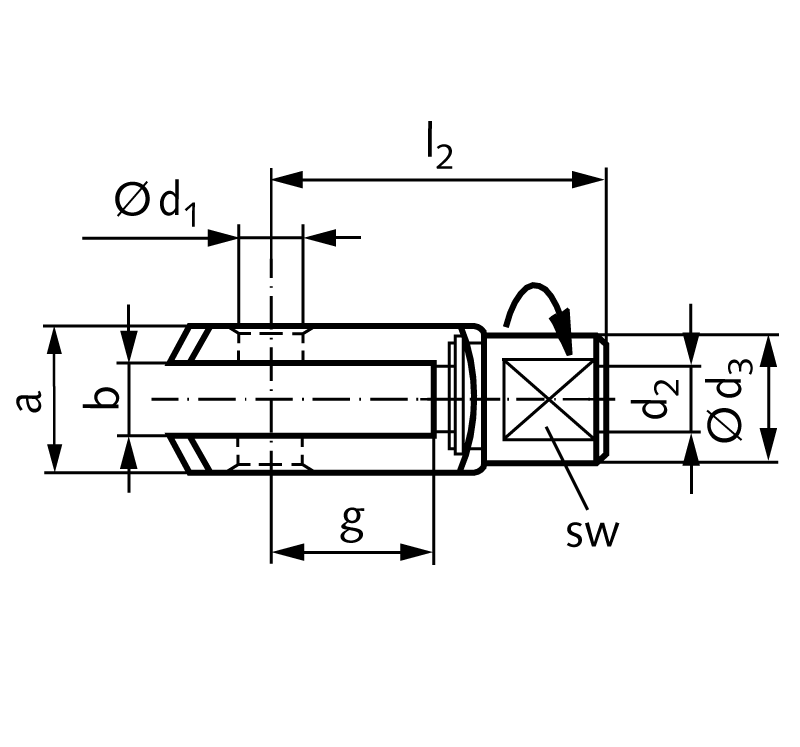

Specifications (automatically extracted)
Mechanical
| Weight | 55 g |
Other characteristics
| Center distance to mounting surface | 48 mm |
| Hole diameter for bolts | 8 mm |
| Inner width | 8 mm |
| Optional kl bolt partno | 63 780 700 |
| Outer width | 16 mm |
| Suitable sl bolt partno | 63 790 700 |
| Material | Steel |
| Size | 8 x 32 |
| Surface | Zinc-plated |
| Thread size | M 8 mm |
| Thread type gewindeausfuhrung | right |
Description
Material: Steel zinc-plated. Design GD: with rotating shaft, without bolt. Thread: Gewindeausführung rechts = thread right-handed. Gewindeausführung links = thread left-handed. Clevises GD have the same dimensions like DIN 71752, but the shaft is rotatable. So, there is no need to adjust the radila position when mounting. The rotating shaft will compensate axial movements caused by axes or levers which are not accurately in line or by Bowden cables. With a bolt set KL or SL, a clevis can get competed to a clevis joint. When monting, all movable parts and contact surfaces should be lubricated.
