MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

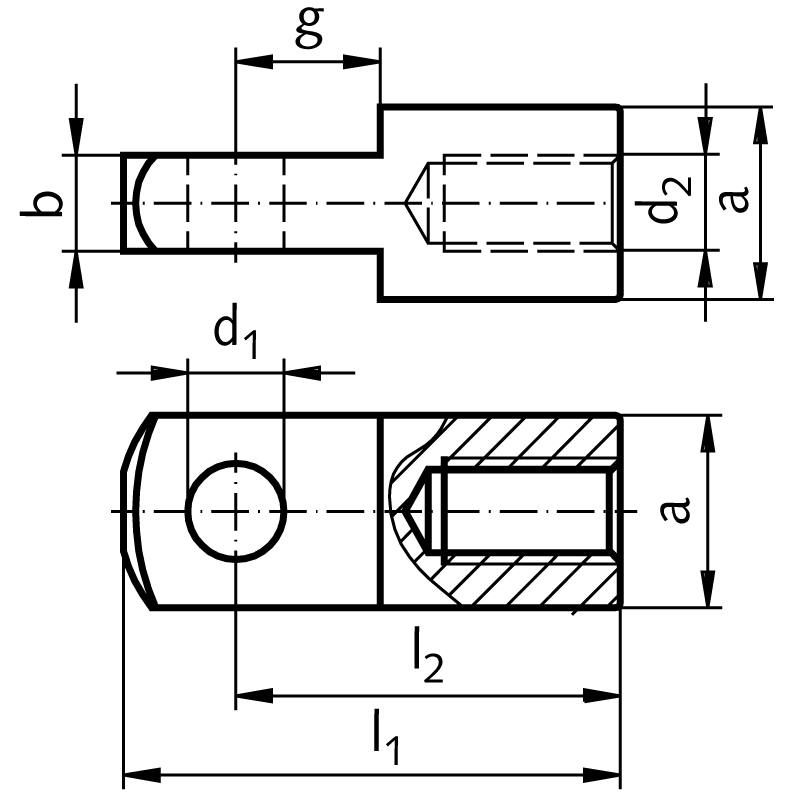

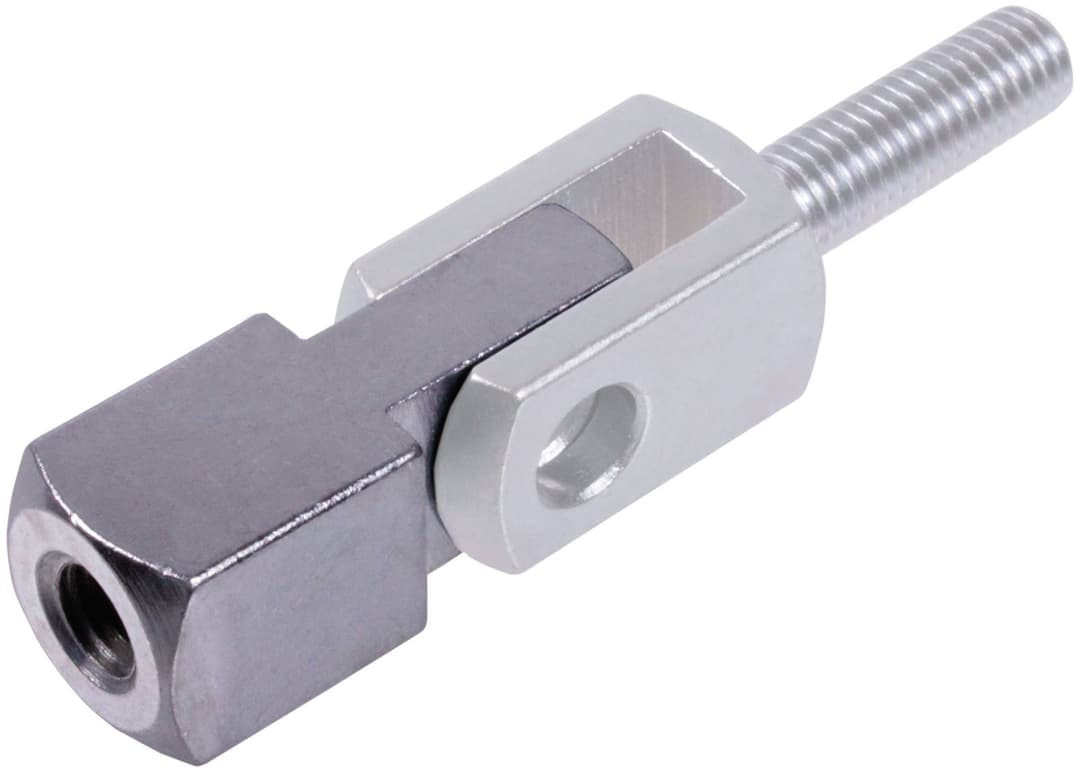

Mating piece for clevis joint DIN 71752 size 16 x 32 internal thread M16 steel zinc plated
Manufacturer part no. 63761500
$22.71≈ 19.72 €
In stock — 25 unitslead time 14 d
Estimated landed cost
| Item | €19.72 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.94 |
| Total delivered | €41.66 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 397 g |
Other characteristics
| Center distance to mounting surface | 64 mm |
| Hole diameter for bolts | 16 mm |
| Inner width | 16 mm |
| Outer width | 32 mm |
| Thread pitch | 2 mm |
| Total length | 83 mm |
| Material | Steel |
| Size | 16 x 32 |
| Surface | Zinc-plated |
| Thread size | M 16 mm |
| Thread type gewindeausfuhrung | right |
Description
Material: steel zinc-plated. Can be used with clevis joints DIN 71751. For using with clevis DIN 71752 you need an ES-bolt or other connection bolt. Thread: Gewindeausführung rechts = thread right-handed.
