MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

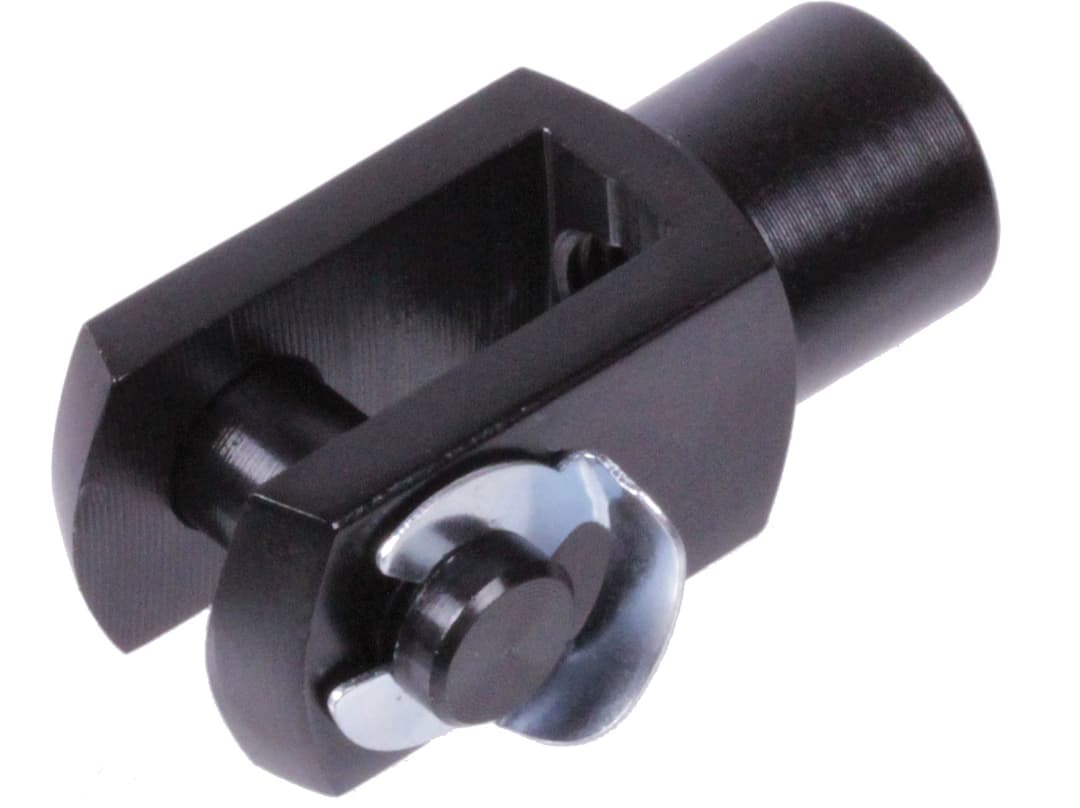

Clevis joint similar DIN 71752 size 12 x 24 type KL right handed aluminum black anodized
Manufacturer part no. 63766011
$9.44≈ 8.20 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €8.20 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.64 |
| Total delivered | €27.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 54.4 g |
Other characteristics
| Bolt diameter | 12 mm |
| Center distance to mounting surface | 48 mm |
| Inner width | 12 mm |
| Outer width | 24 mm |
| Thread pitch | 1.75 mm |
| Material | Aluminum |
| Size | 12×24 |
| Surface | Anodised |
| Thread size | M 12 mm |
| Thread type | right |
Description
Material: Clevis and bolt aluminium, anodized black. With KL-Retainer from steel, bright zinc plated.Thread: Gewindeausführung rechts = thread right-handed.
