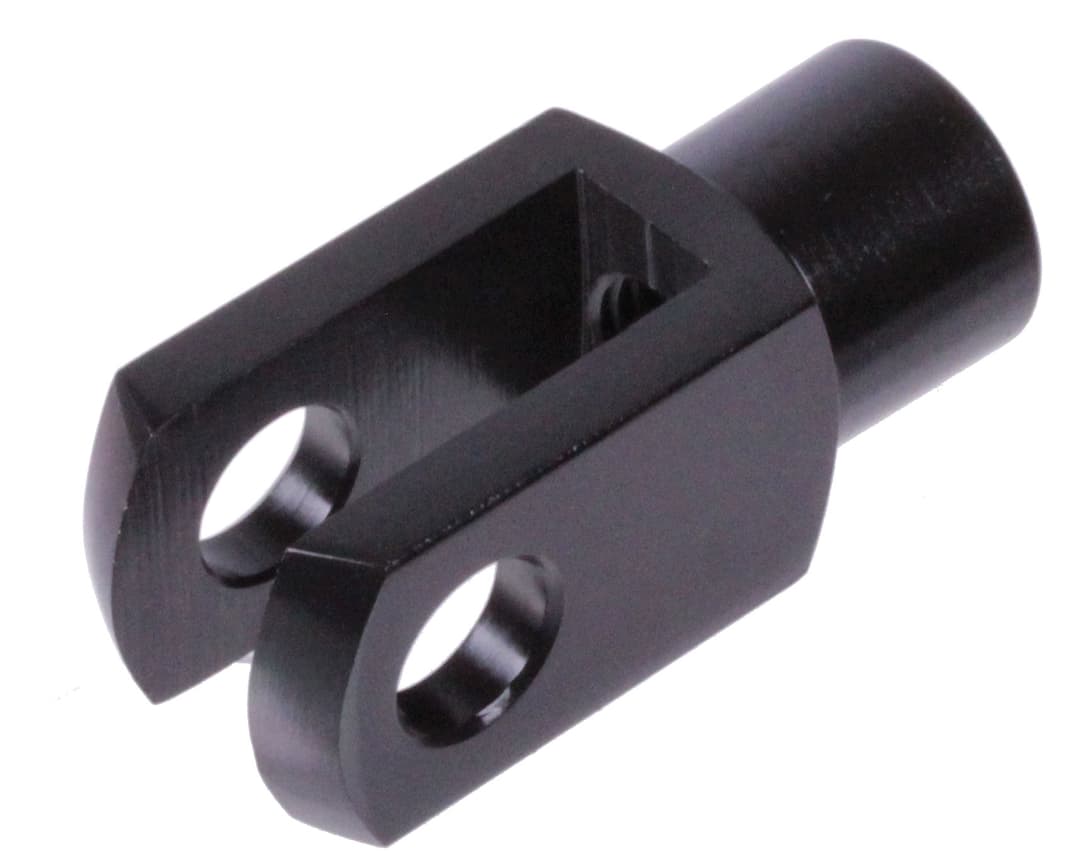

Clevis similar DIN 71752 size 5 x 10 right handed aluminum black anodized
Manufacturer part no. 63766203
$1.81≈ 1.57 €
In stock — 23 unitslead time 14 d
Estimated landed cost
| Item | €1.57 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.31 |
| Total delivered | €19.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 3.1 g |
Other characteristics

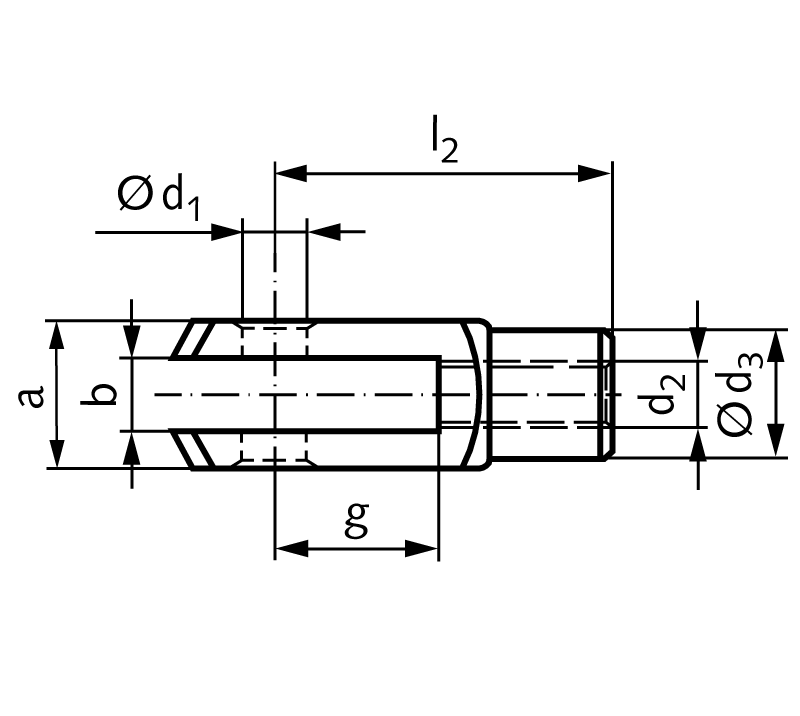

| Bolt diameter | 5 mm |
| Center distance to mounting surface | 20 mm |
| Inner width | 5 mm |
| Outer width | 10 mm |
| Thread pitch | 0.8 mm |
| Material | Aluminum |
| Size | 5×10 |
| Surface | Anodised |
| Thread size | M 5 mm |
| Thread type | right |
Description
Material: aluminium, anodized black. Without bolt. To be used with ES bolt or customer¿s bolt. Thread: Gewindeausführung rechts = thread right-handed.
