MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

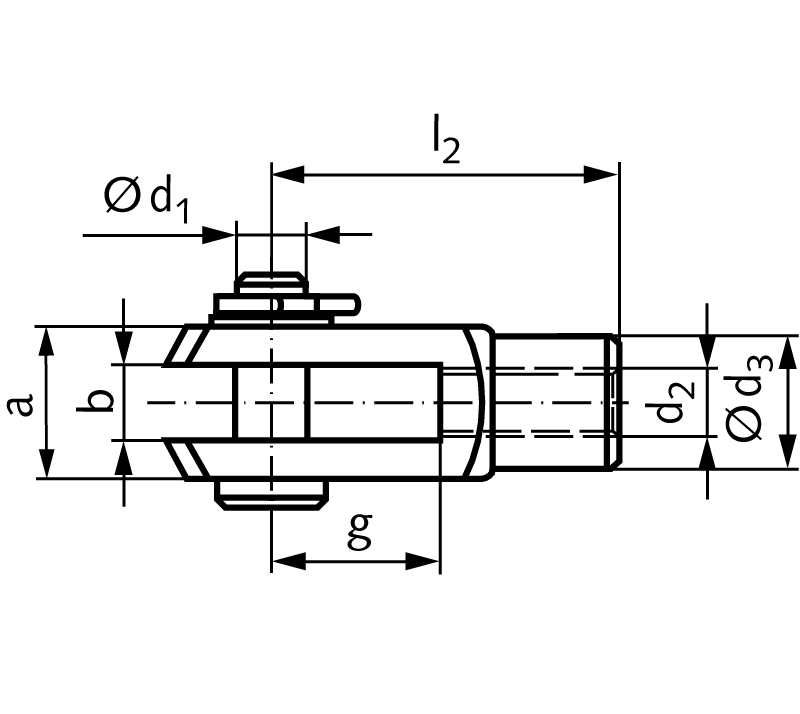

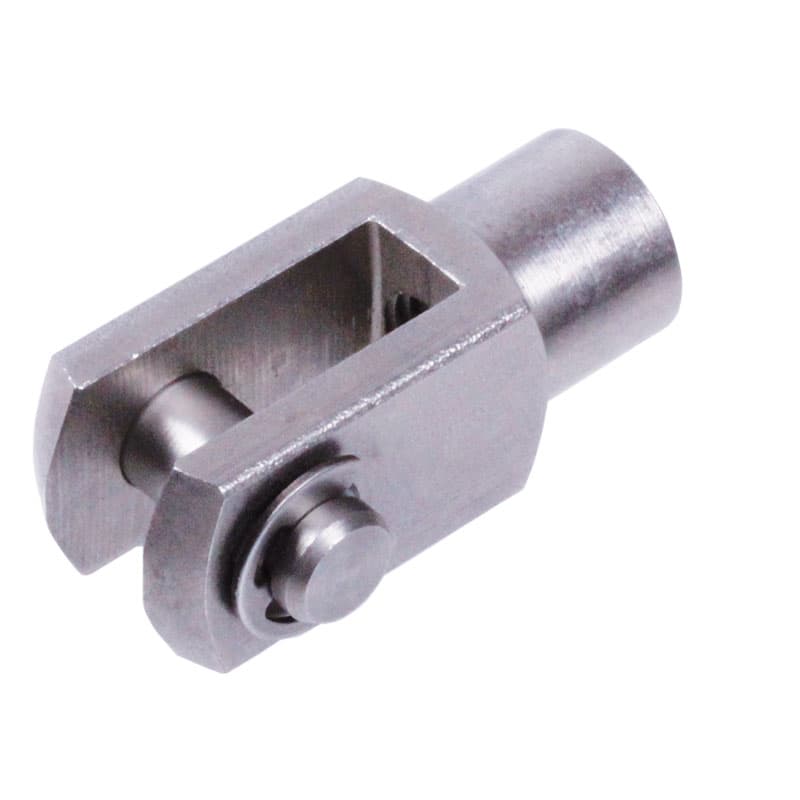

Clevis joint DIN 71752 with circlip size 8 x 16 right handed stainless steel 1.4301
Manufacturer part no. 63799007
$15.11≈ 13.12 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €13.12 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.62 |
| Total delivered | €33.74 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 38 g |
Other characteristics
| Bolt diameter | 8 mm |
| Center distance to mounting surface | 32 mm |
| Inner width | 8 mm |
| Outer width | 16 mm |
| Thread pitch | 1.25 mm |
| Material | Stainless steel (304) |
| Size | 8 x 16 |
| Surface | Blank |
| Thread size | M 8 mm |
| Thread type | right |
Description
Material: Stainless steel 1.4301 (AISI 304). Design A: With bolt and circlip. Thread: Gewindeausführung rechts = thread right-handed and links = left-handed. * Size 20 is not part of the DIN.
