MÄDLERMÄDLER· Fastening Elements

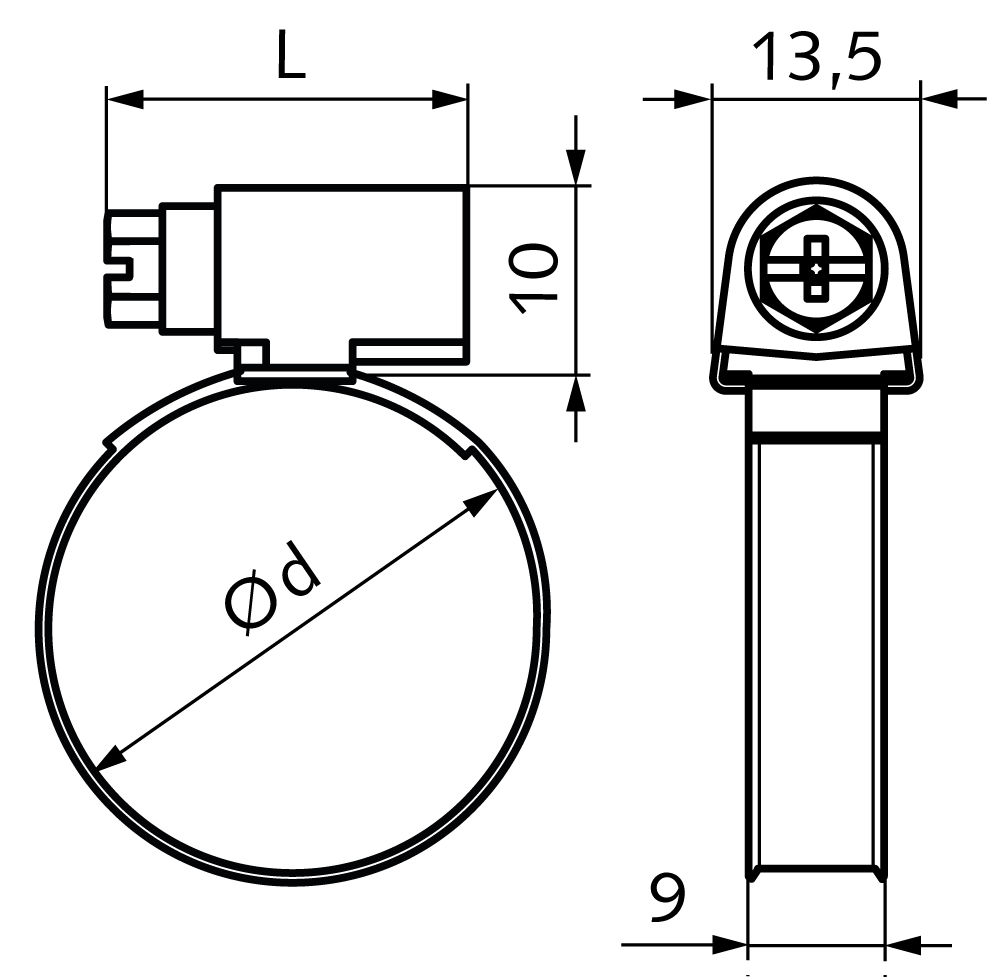

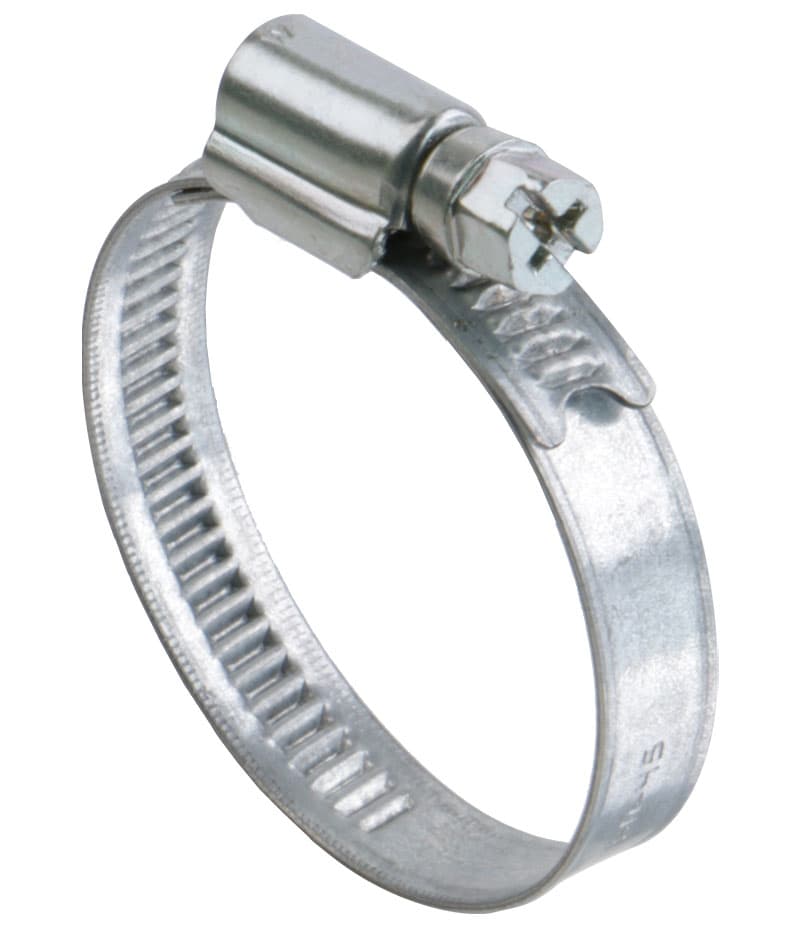

hose clamp DIN 3017 A type W1 steel zinc plated diameter range 12-22mm band width 9mm
Manufacturer part no. 63811020
$0.86≈ 0.75 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €0.75 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.15 |
| Total delivered | €18.90 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 11 g |
Other characteristics
| Testing torque | 3.5 Nm |
| Tightening torque for mounting | 2.5 Nm |
| Clamping range | 12 – 22 mm |
| Material | Steel |
| Surface | Zinc-plated |
Description
Material: Steel, zinc-plated (type W1). High-performance hose clamps with worm gear thread, for fixing hoses, bellows and for similar usage. Band width 9 mm. Band thickness 0.6 mm. With hexagon screw head size 7 mm, with cross recess and slot. Other sizes and versions on request.
