MÄDLERMÄDLER· Fastening Elements

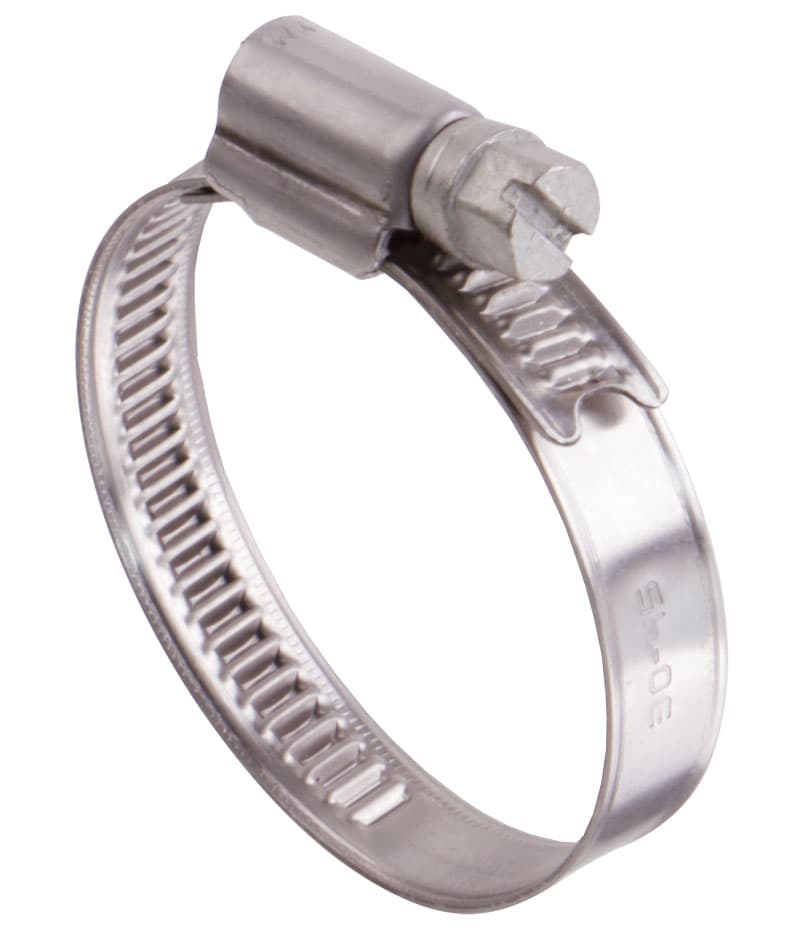

hose clamp DIN 3017 A type W4 stainless steel 1.4301 diameter range 30-45mm band width 9mm
Manufacturer part no. 63814045
$2.69≈ 2.34 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €2.34 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.47 |
| Total delivered | €20.81 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 17 g |
Other characteristics
| Testing torque | 4.5 Nm |
| Tightening torque for mounting | 3 Nm |
| Clamping range | 30 – 45 mm |
| Material | Stainless steel (304) |
| Surface | Blank |
Description

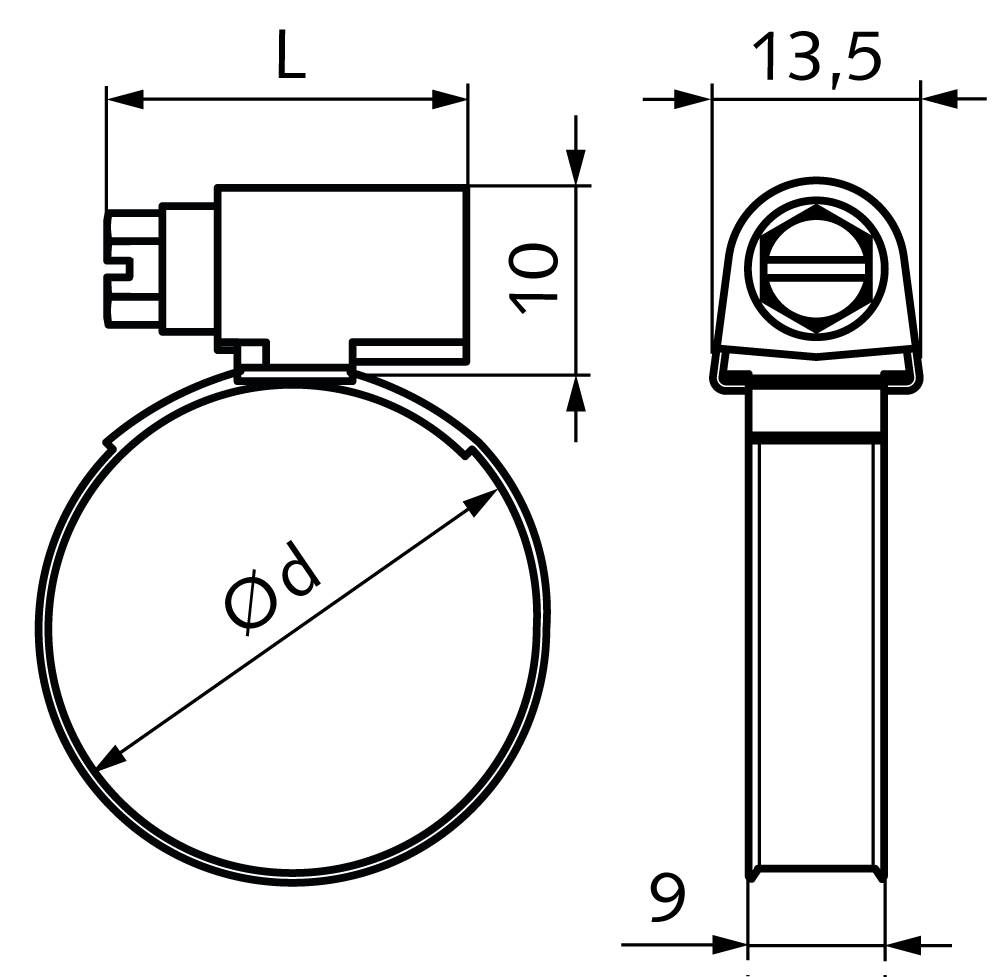

Material: Stainless steel 1.4301, AISI 304 (type W4). High-performance hose clamps with worm gear thread, for fixing hoses, bellows and for similar usage. Band width 9 mm. Band thickness 0.6 mm. With hexagon screw head size 7 mm, with slot. Other sizes and versions on request.
