MÄDLERMÄDLER· Trapezoidal Thread Spindles, Nuts and Ball Screw Drives

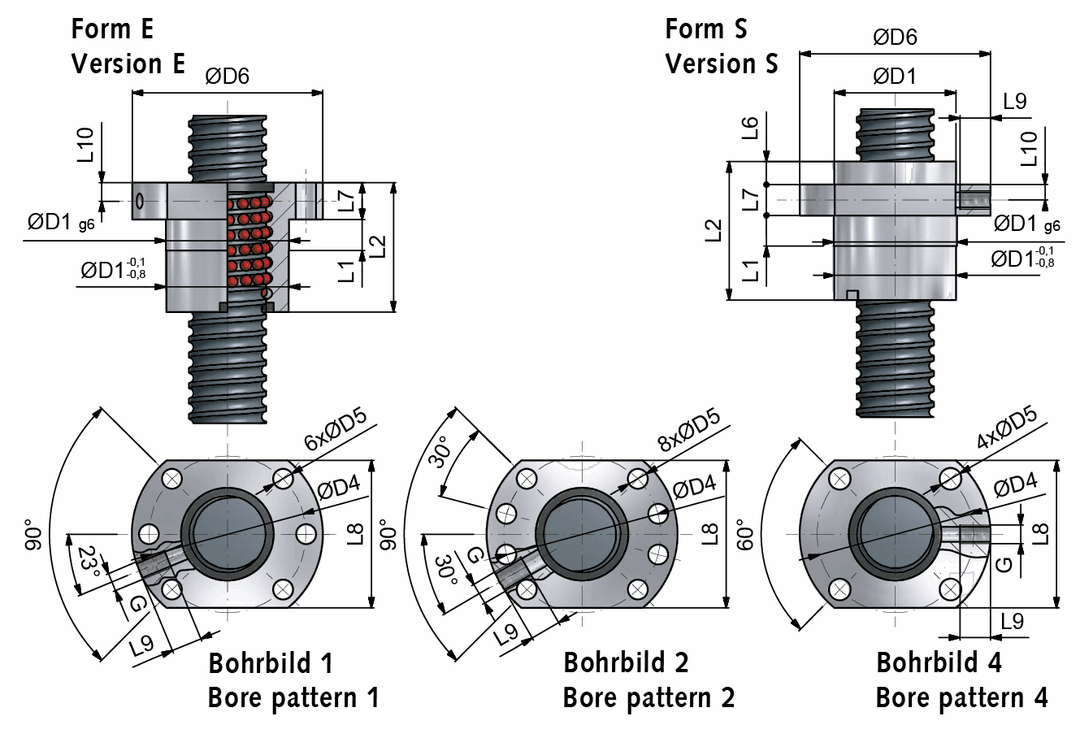

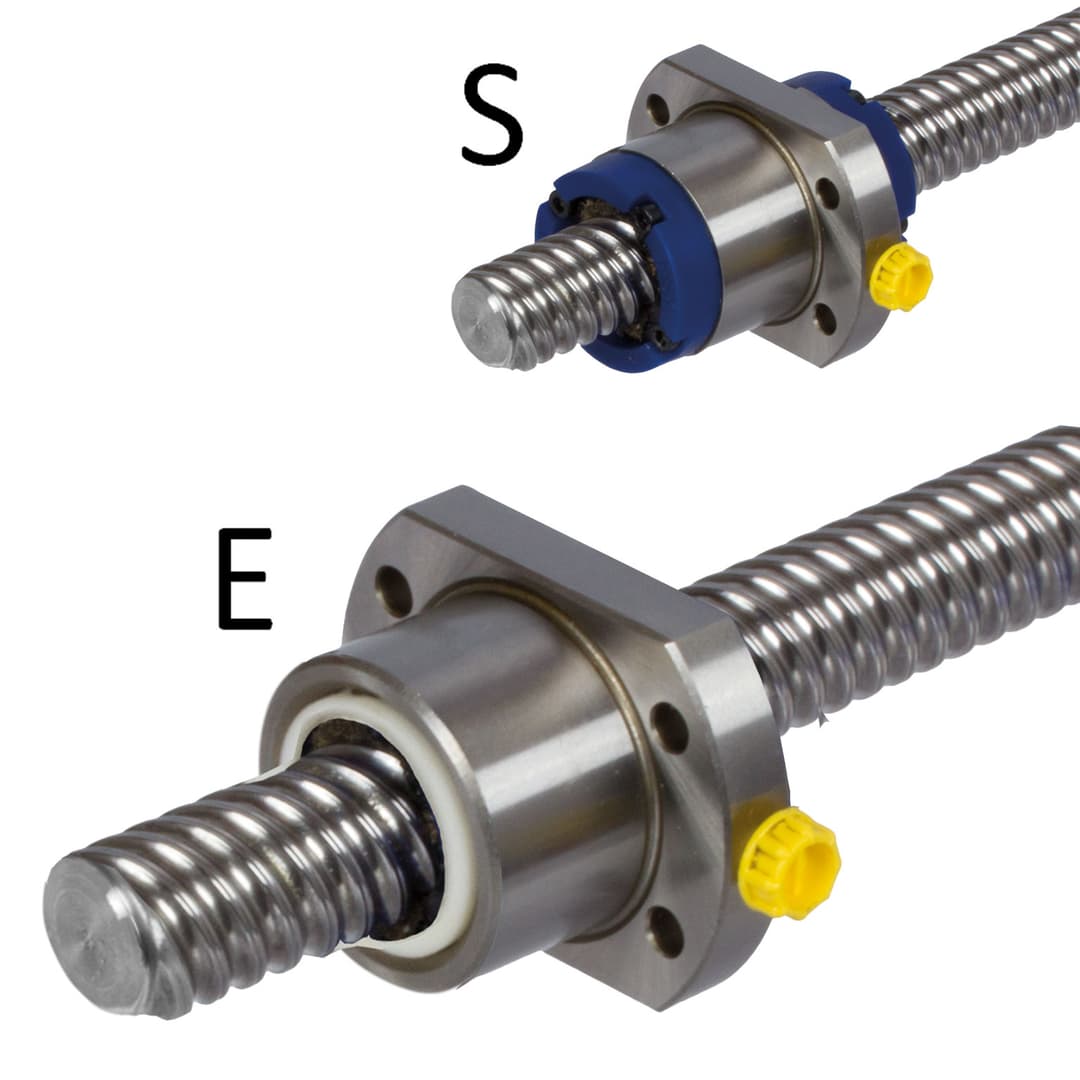

Flanged ball screw nut 12x4mm height 35mm flange diameter 42mm
Manufacturer part no. 64012045
$486.61≈ 422.59 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €422.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €87.52 |
| Total delivered | €525.11 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 100 g |
| Dimensions | 12x4mm |
Other characteristics
| Axial clearance | 0.07 mm |
| Ball diameter | 2.381 mm |
| Bore pattern | 1 |
| Load rating | 4 kN |
| Turns per circuit | 3 |
| Material | Steel / Plastic |
| Size | 12 x 4 mm |
| Surface | Blank |
| Version | E |
Description
Material: Bearing steel 100Cr6, No. 1.3505. To be combined with MÄDLER® ball screw spindles. The spindle has to be ordered separately. With axial clearance, for running with low friction. Temperature range: -20°C to +80°C (for short time to +110°C). Mounting note: Please refer to the mounting- and operating instruction. The ball screw nuts will be delivered with a plastic tube inside. This tube is a transport protection against loosing the balls and is also a mounting aid. When the tube is hold against the spindle end, the nut can get screwed onto the spindle without loosing balls. Before use, the nut and the spindle have to be lubricated. For grease lubrication, normal roller bearing grease is recommended. The lubricant consumption depends on the condition of use.
