MÄDLERMÄDLER· Trapezoidal Thread Spindles, Nuts and Ball Screw Drives

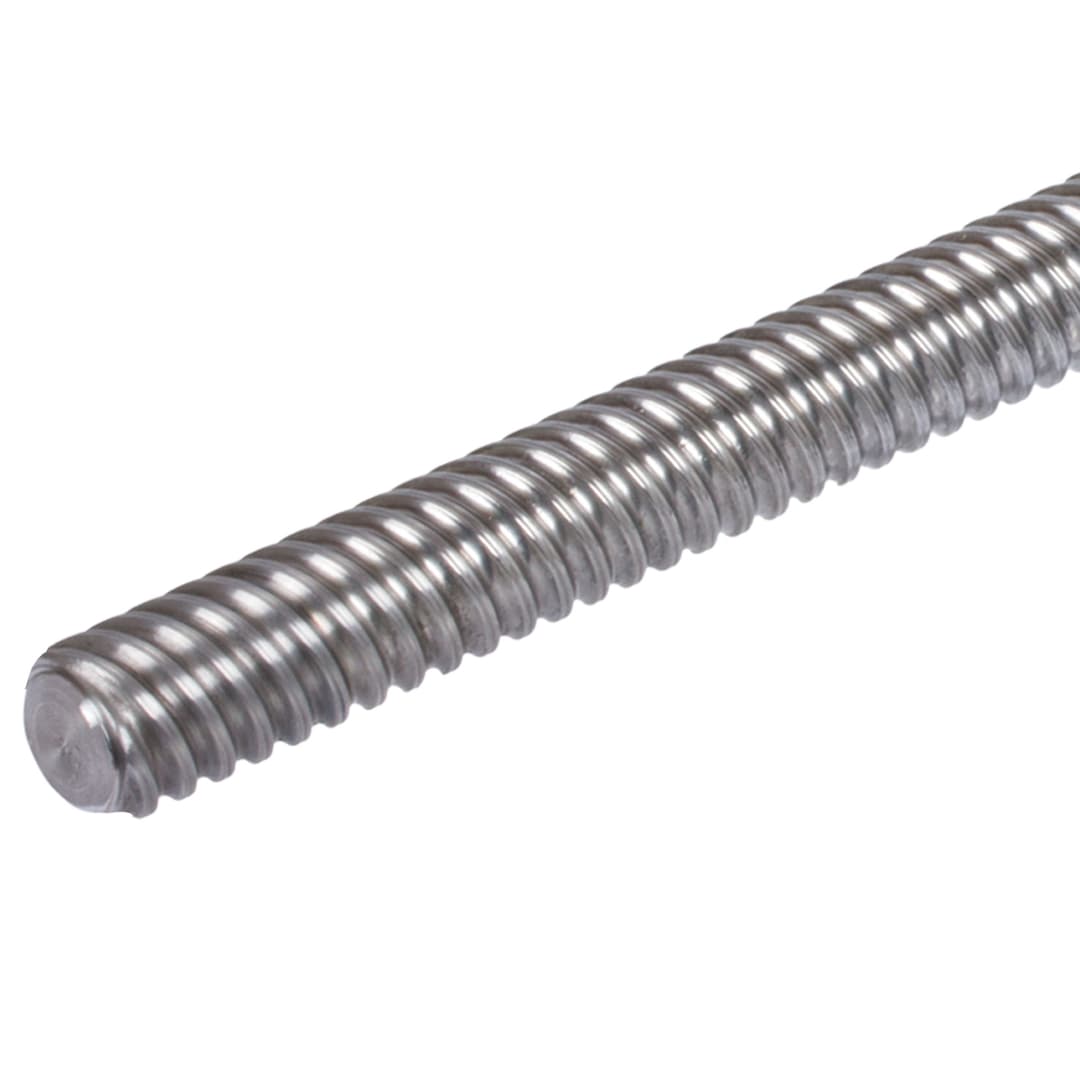

Ball screw spindle rolled 16x10mm length 1995mm
Manufacturer part no. 64016103
$542.52≈ 471.14 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €471.14 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €97.23 |
| Total delivered | €583.37 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.66 kg |
| Dimensions | 16x10mm |
Other characteristics

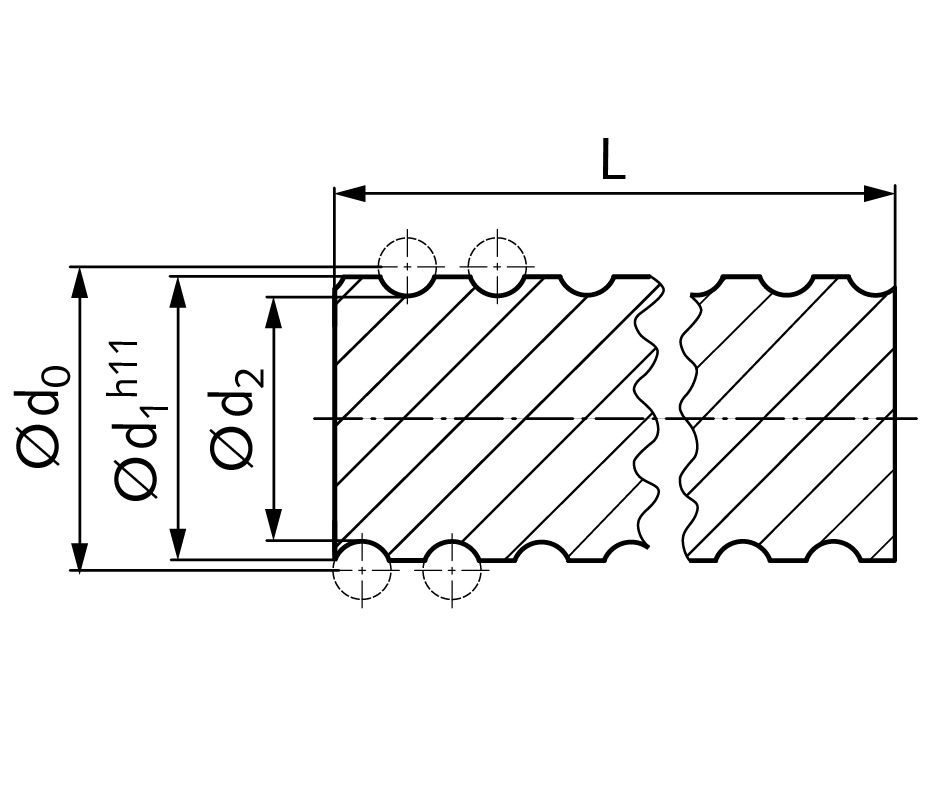

| Core diameter | 12.7 mm |
| Length | 1 995 mm |
| Outer diameter | 15.7 mm |
| Reference diameter | 16.44 mm |
| Material | Steel (E52100) |
| Size | 16 x 10 mm |
| Surface | Blank |
Description
Material: Bearing steel 100Cr6, No. 1.3505, rolled. Tensile strength 1570 N/mm², Brinell hardness 207 HB. • Rolled ball screw spindle. • To be combined with MÄDLER® flanged ball screw nuts and cylindrical ball screw nuts. • Pitch accuracy 52 μm/300 mm (T7). • Straightness 0,1 mm/m. • Special lengths and spindle end reworking against extra charge. Temperature range: -20°C to +80°C (for short time to +110°C). Note: Please refer to the mounting- and operating instruction. Before use, the nut and the spindle have to be lubricated. For grease lubrication, normal roller bearing grease is recommended. The lubricant consumption depends on the condition of use.
