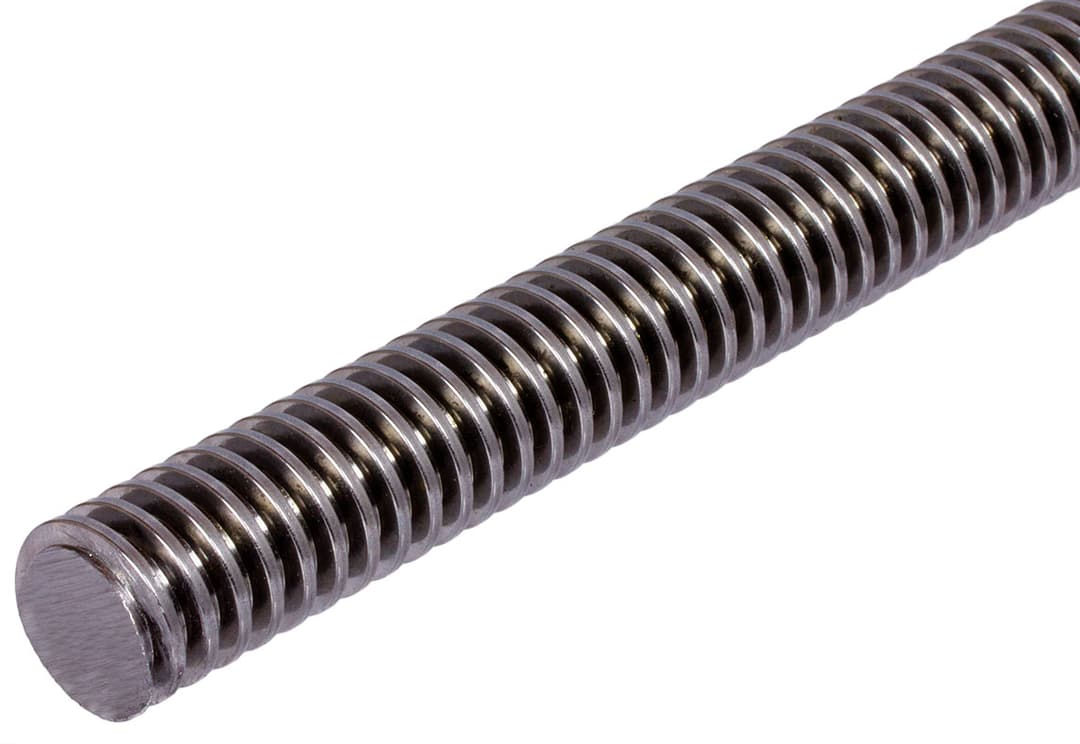

Trapezoidal-threaded spindle DIN 103 Tr.28 x 5 x 3000mm long single-start right material C15 rolled
Manufacturer part no. 64032800
$163.44≈ 141.94 €
In stock — 20 unitslead time 14 d
Estimated landed cost
| Item | €141.94 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €31.39 |
| Total delivered | €188.33 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 11.7 kg |
| Dimensions | 28x5x3000mm |
Other characteristics
| Max flank diameter | 25.39 mm |
| Min core diameter | 21.5 mm |
| Min flank diameter | 25.049 mm |
| Material | Steel (1015) |
| Surface | Blank |
| Trapezoidal thread diameter x pitch | Tr. 28 x 5 single-thread RH mm |
Description
Material: C15, rolled. Tolerance zone 7e. Length sawed (length may be longer than nominal length), edges not broken.
