MÄDLERMÄDLER· Trapezoidal Thread Spindles, Nuts and Ball Screw Drives

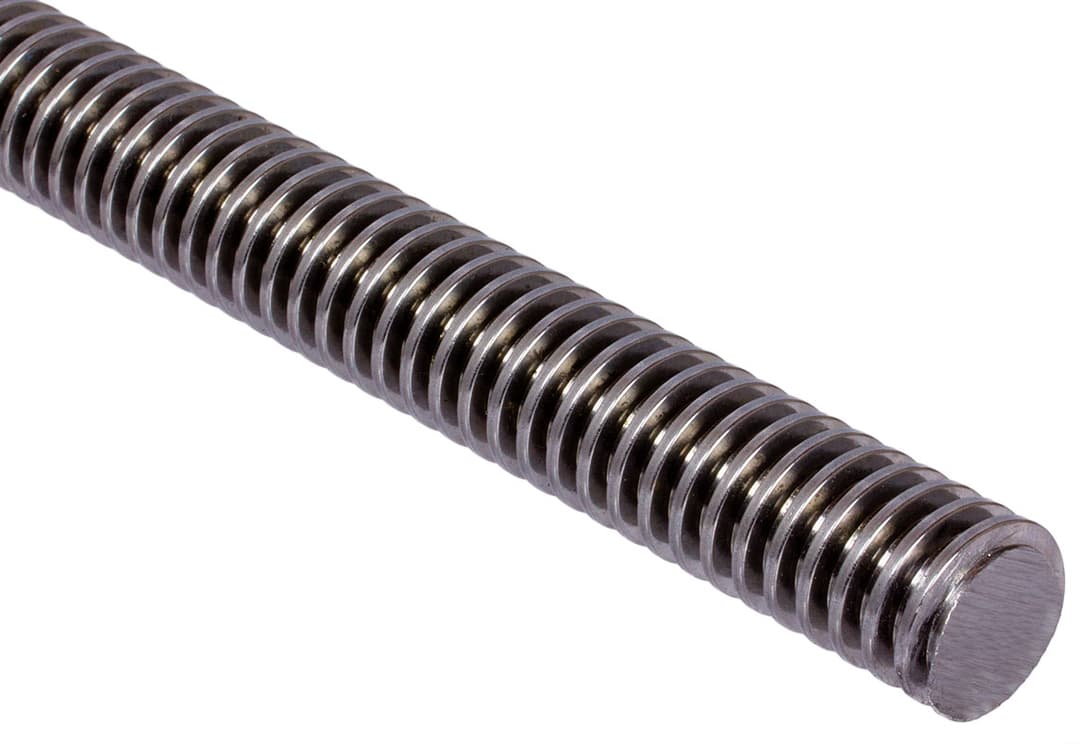

Trapezoidal-threaded spindle DIN 103 Tr.60 x 9 x 2000mm long single-start left material C15 rolled
Manufacturer part no. 64066000
$671.66≈ 583.29 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €583.29 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €119.66 |
| Total delivered | €717.95 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 37.8 kg |
| Dimensions | 60x9x2000mm |
Other characteristics
| Max flank diameter | 55.3 mm |
| Min core diameter | 48.15 mm |
| Min flank diameter | 54.935 mm |
| Material | Steel (1015) |
| Surface | Blank |
| Trapezoidal thread diameter x pitch | Tr. 60 x 9 single-thread LH mm |
Description
Material: C15, rolled. Tolerance zone 7e. Length sawed (length may be longer than nominal length), edges not broken.
