MÄDLERMÄDLER· Trapezoidal Thread Spindles, Nuts and Ball Screw Drives

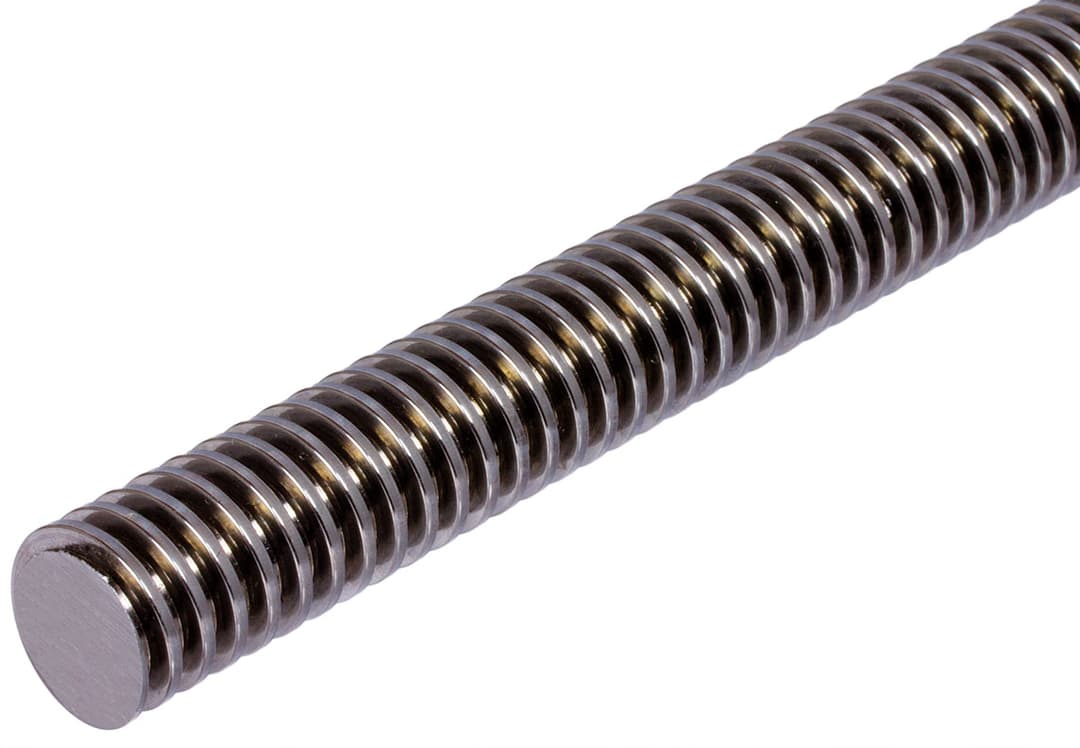

Trapezoidal-threaded spindle DIN 103 Tr.24 x 5 x 3000mm long single-start right material 1.4305 rolled
Manufacturer part no. 64099324
$542.32≈ 470.97 €
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €470.97 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €97.19 |
| Total delivered | €583.16 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 8.7 kg |
| Dimensions | 24x5x3000mm |
Other characteristics
| Max flank diameter | 21.394 mm |
| Min core diameter | 17.5 mm |
| Min flank diameter | 21.094 mm |
| Material | Stainless steel (303) |
| Surface | Blank |
| Trapezoidal thread diameter x pitch | Tr. 24 x 5 single-thread RH mm |
Description
Material: 1.4305 (AISI 303). Up to size Tr. 40 x 7 rolled, above whirled. Tolerance zone 7e. Length sawed (length may be longer than nominal length), edges not broken.
