MÄDLERMÄDLER· Bearings, Bushes, Seals
Pillow block bearing unit BF 35 bore 35mm material steel black oxide finished
Manufacturer part no. 64200235
$138.22≈ 120.03 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €120.03 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €27.01 |
| Total delivered | €162.04 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.22 kg |
Other characteristics
| Bore | 35 mm |
| Material | Steel |
| Surface | Black oxide finish |
| Type | BF 35 |
Description

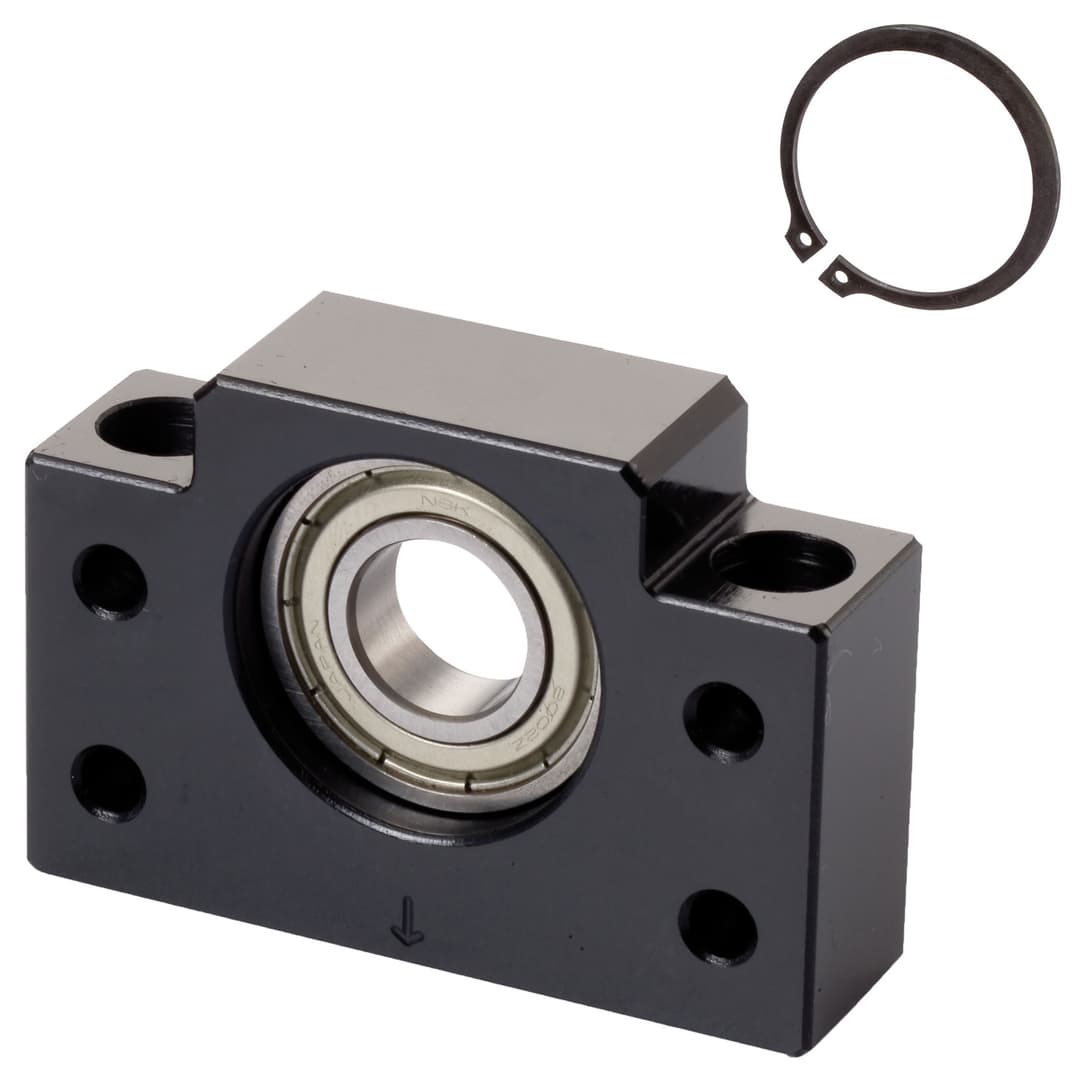

Material: Housing from steel, all surfaces machined, black oxide finished. On request: nickel-plated. Ready-to-install housing bearing unit for trapezoidal and ballscrew spindle drives, for the support side. With one movable single row deep groove ball bearing with shields (2Z). With 6 mounting holes. Retaining ring for fixing on the spindle end is included. Due to the standard dimensions, these units can also replace parts of other suppliers. Spindle reworking on request. Matching counterpart for fixed side: Pillow Block Bearing BK. Details for spindle end working, please refer to our catalog page by clicking the button below.
