MÄDLERMÄDLER· Bearings, Bushes, Seals

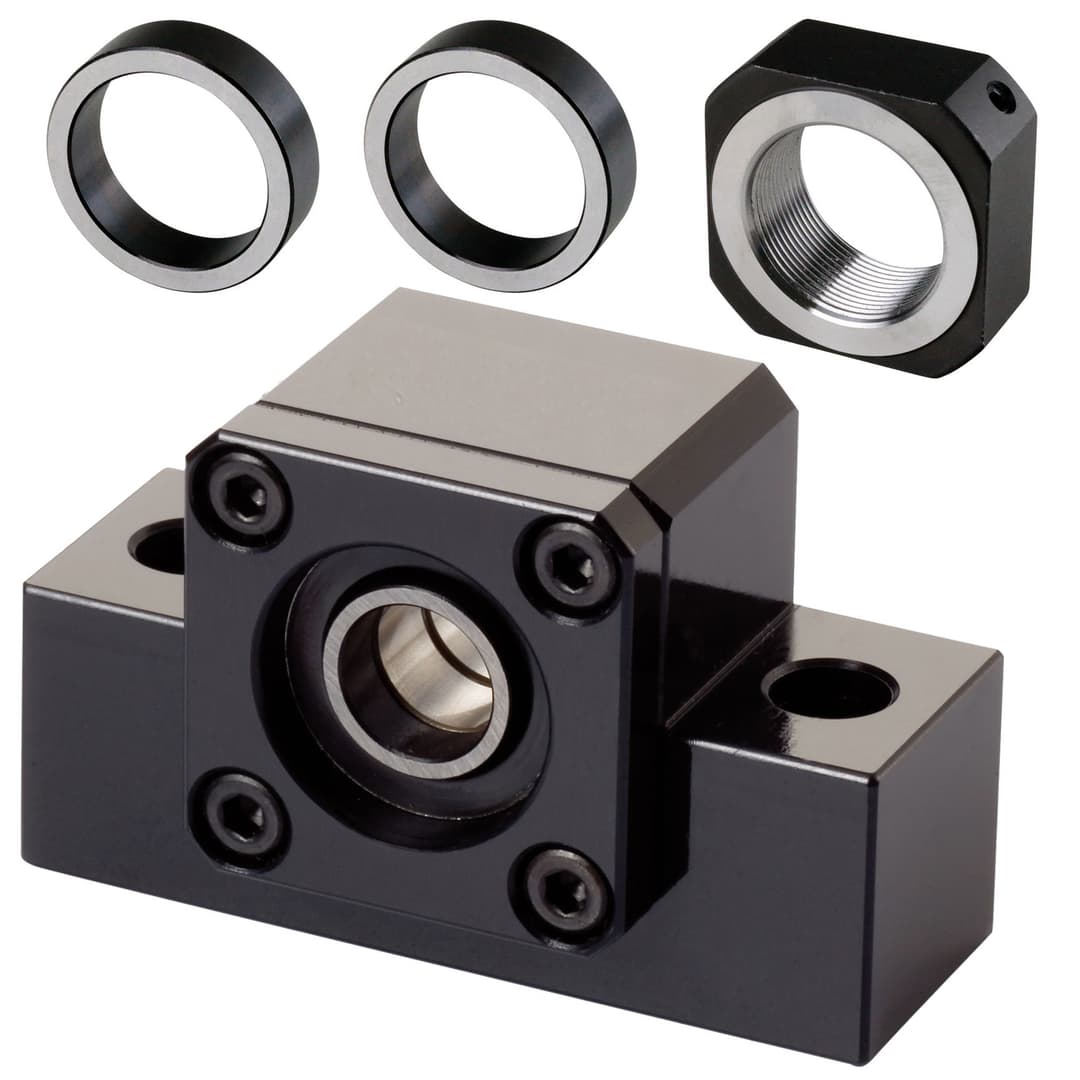

Pillow block bearing unit EK 10 bore 10mm material steel black oxide finished
Manufacturer part no. 64200310
$106.77≈ 92.72 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €92.72 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €21.54 |
| Total delivered | €129.26 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 460 g |
Other characteristics
| Bore | 10 mm |
| Material | Steel |
| Surface | Black oxide finish |
| Type | EK 10 |
Description
Material: Material: Housing from steel, all surfaces machined, black oxide finished. Ready-to-install housing bearing unit for trapezoidal and ballscrew spindle drives, for the fixed side. With two angular contact ball bearings, lightly preloaded, with seals. Types EK06 and EK08 sealed only on the side without the nut. With 2 mounting holes. Locknut and distance bushes are included. Due to the standard dimensions, these units can also replace parts of other suppliers. Spindle reworking on request. Matching counterpart for support side: Pillow Block Bearing EF. Details for spindle end working, please refer to our catalog page by clicking the button below.
