Pillow block bearing unit BK 12 bore 12mm material steel nickel plated
Manufacturer part no. 64201112
$129.01≈ 112.04 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €112.04 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €25.41 |
| Total delivered | €152.45 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 410 g |
Other characteristics
| Bore | 12 mm |
| Material | Steel |
| Surface | Nickel-plated |
| Type | BK 12 |
Description

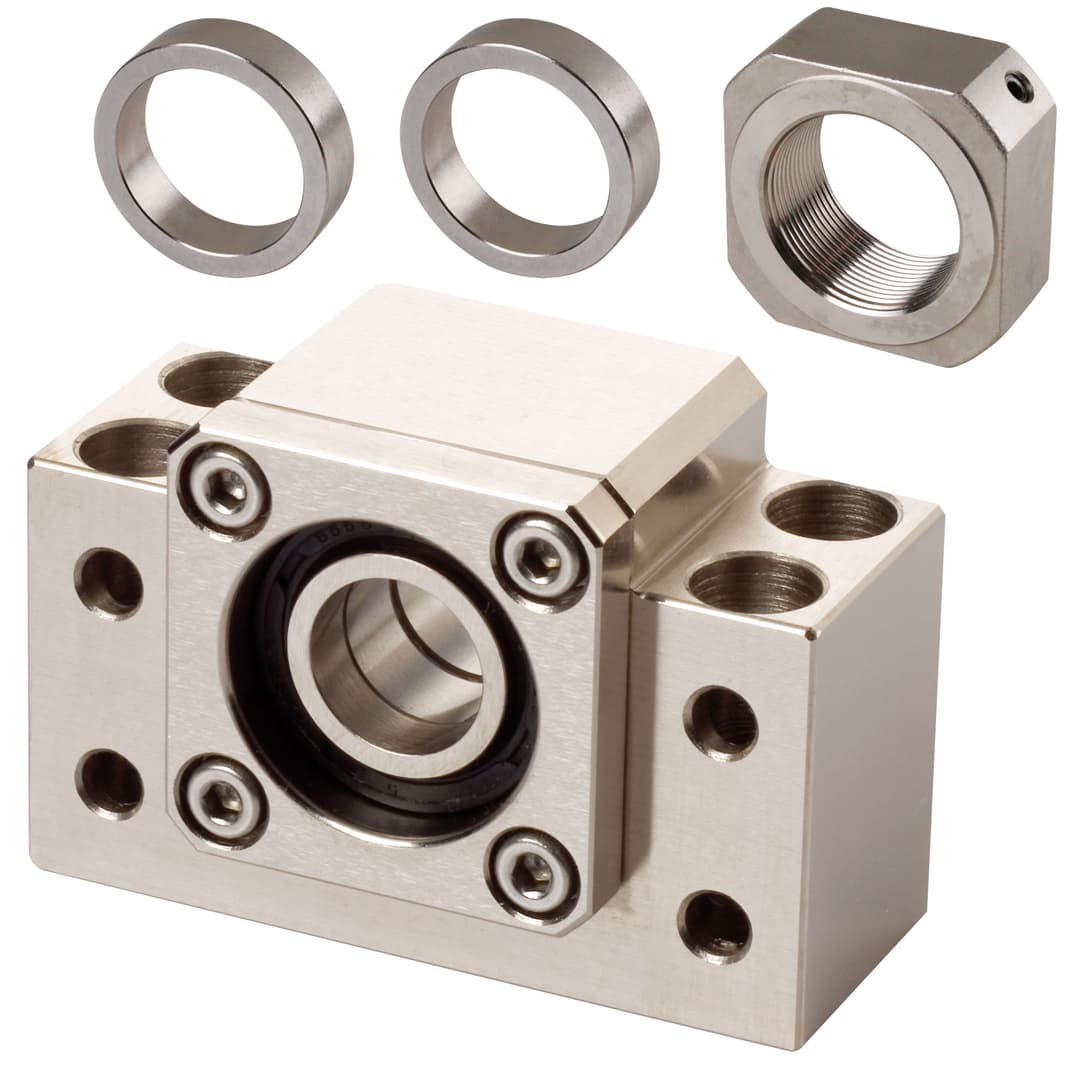

Material: Housing from steel, all surfaces machined, nickel-plated. Ready-to-install housing bearing unit for trapezoidal and ballscrew spindle drives, for the fixed side. With two angular contact ball bearings, lightly preloaded, with seals. With 8 mounting holes. Locknut and distance bushes are included. Due to the standard dimensions, these units can also replace parts of other suppliers. Spindle reworking on request. Matching counterpart for support side: Pillow Block Bearing BF. Details for spindle end working, please refer to our catalog page by clicking the button below.
