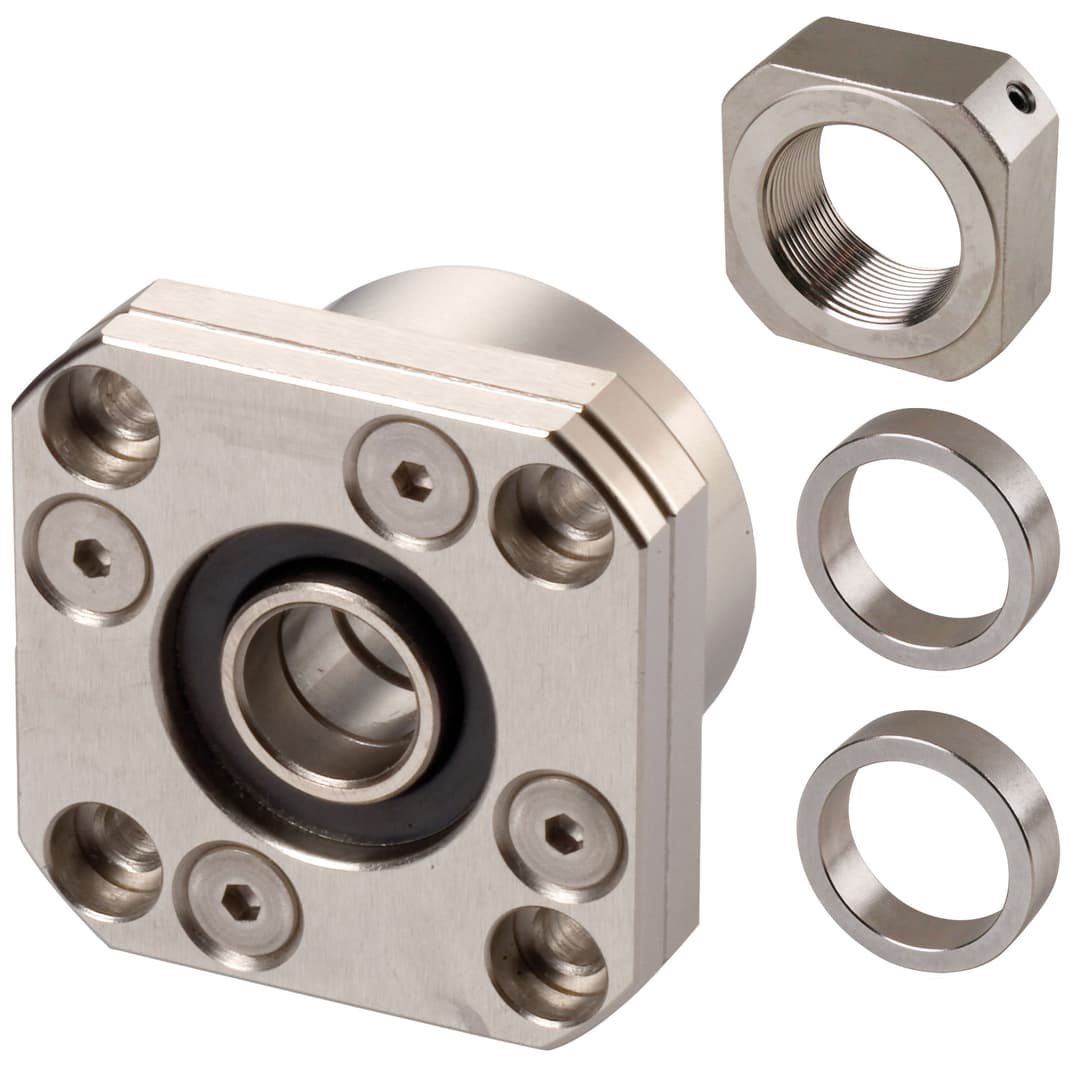

Flange bearing unit FK 06 bore 6mm material steel nickel plated sealed only at the cylindrical side
Manufacturer part no. 64201506
$149.15≈ 129.53 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €129.53 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €28.91 |
| Total delivered | €173.44 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 80 g |
Other characteristics
| Bore | 6 mm |
| Material | Steel |
| Surface | Nickel-plated |
| Type | FK 06 |
Description

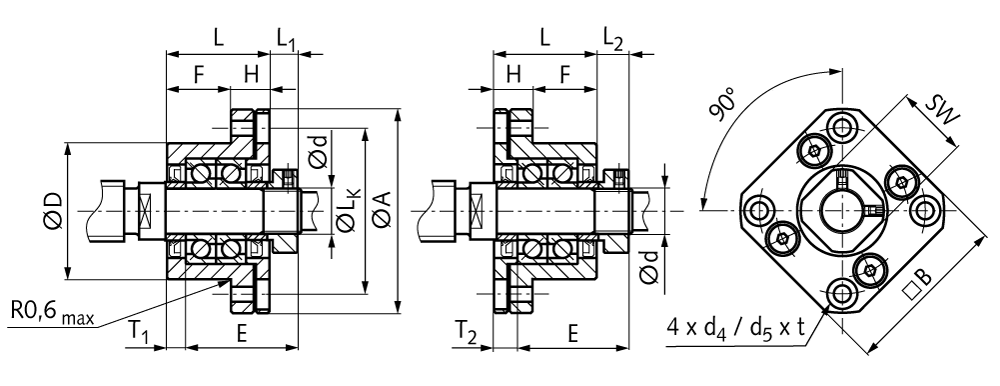

Material: Housing from steel, all surfaces machined, nickel-plated. Ready-to-install housing bearing unit for trapezoidal and ballscrew spindle drives, for the fixed side. With two angular contact ball bearings, lightly preloaded, with seals. Types FK06 and FK08 sealed only on the cylindrical side. With 4 mounting holes. Locknut and distance bushes are included. Due to the standard dimensions, these units can also replace parts of other suppliers. Spindle reworking on request. Matching counterpart for support side: Flange Bearing FF. Details for spindle end working, please refer to our catalog page by clicking the button below.
