MÄDLERMÄDLER· Trapezoidal Thread Spindles, Nuts and Ball Screw Drives

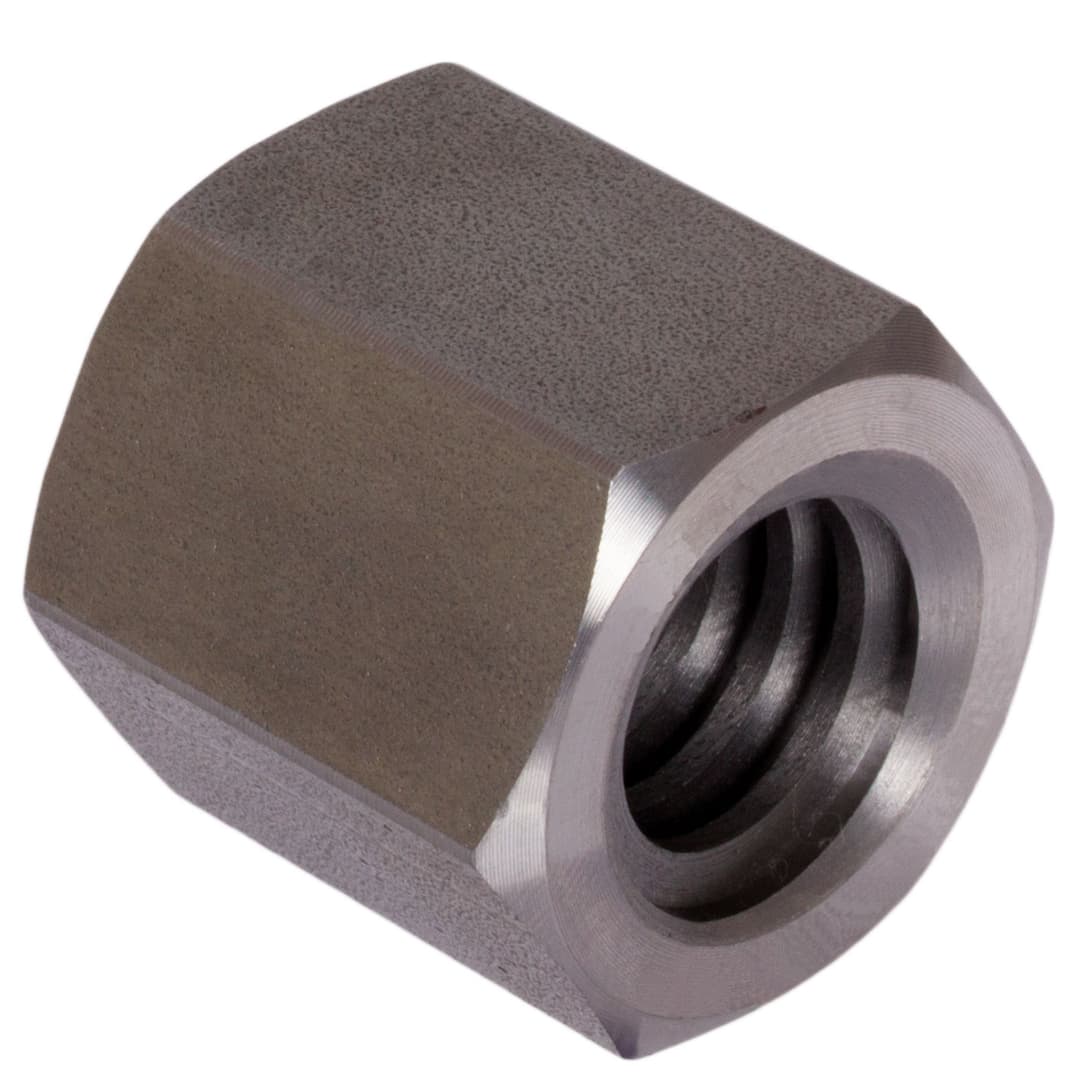

Hexagonal trapezoidal nut steel C35Pb Tr.48 x 8 single-start left length 72mm wrench size 75mm
Manufacturer part no. 64364800
$136.53≈ 118.57 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €118.57 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €26.71 |
| Total delivered | €160.28 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.82 kg |
Other characteristics

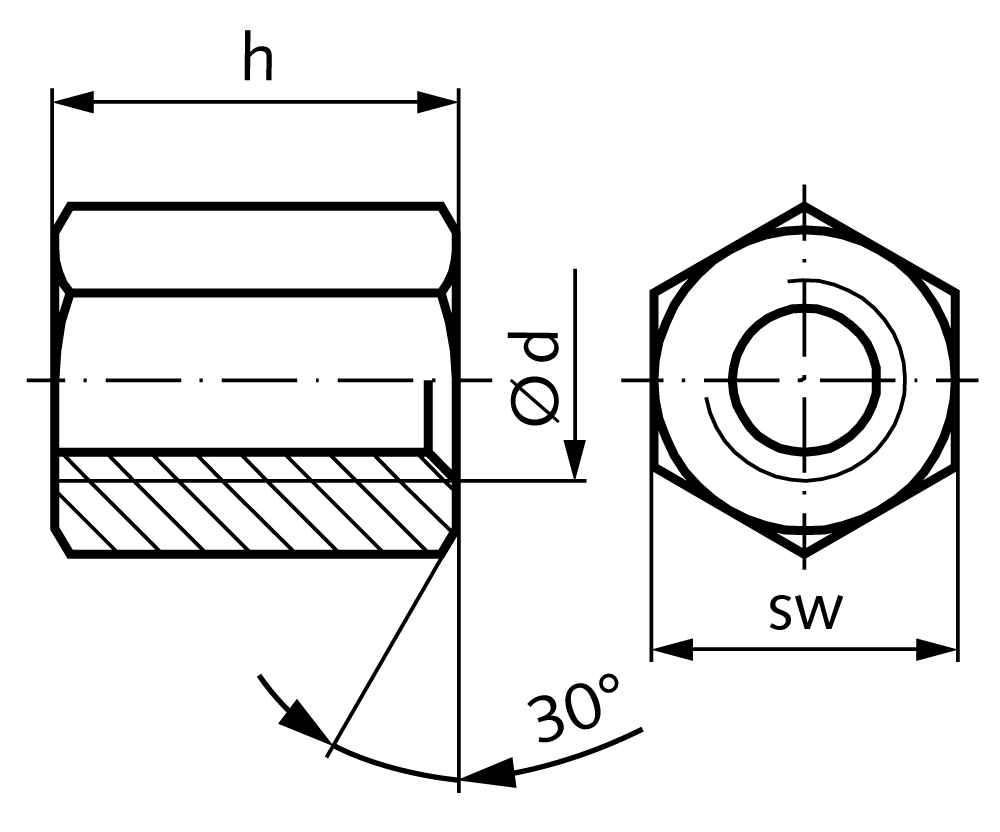

| Height | 72 mm |
| Wrench size | 75 mm |
| Material | Steel (1034) |
| Surface | Blank |
| Trapezoidal thread diameter x pitch | Tr. 48 x 8 single-thread LH mm |
Description
Material: Steel C35Pb. Tolerance zone 7H. Height = 1,5 x diameter. Attention: Steel nuts get very easily thightened on a spindle made from Steel or stainless steel. This nuts are only for clamping, manual adjustments or as fastening nut. Not suitable for drive systems.
