Adapter console KONA-38 bore D1=38mm D3=50mm thread=M6 x 12
Manufacturer part no. 64470238
$148.81≈ 129.23 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €129.23 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €28.85 |
| Total delivered | €173.08 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 0 g |
Other characteristics
| Height | 75 mm |
| Hole circle diameter of mounting holes | 50 mm |
| Hole distance | 49 mm |
| Inner diameter | 38 mm |
| Length | 65 mm |
| Width | 40 mm |
| Material | Steel (ASTM A36) |
| Surface | Black oxide finish |
| Thread size x length axial | M 6 x 12 mm |
| Thread size x length radial | M 10 x 15 mm |
| Type | KONA-38 |
Description

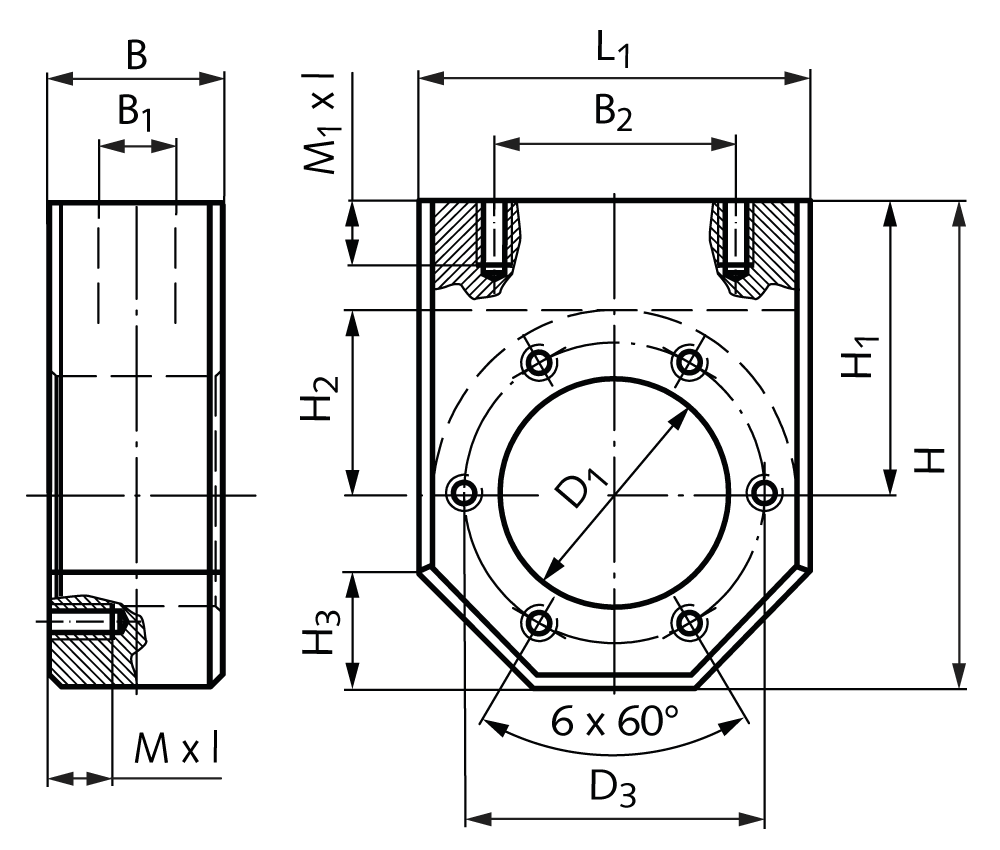

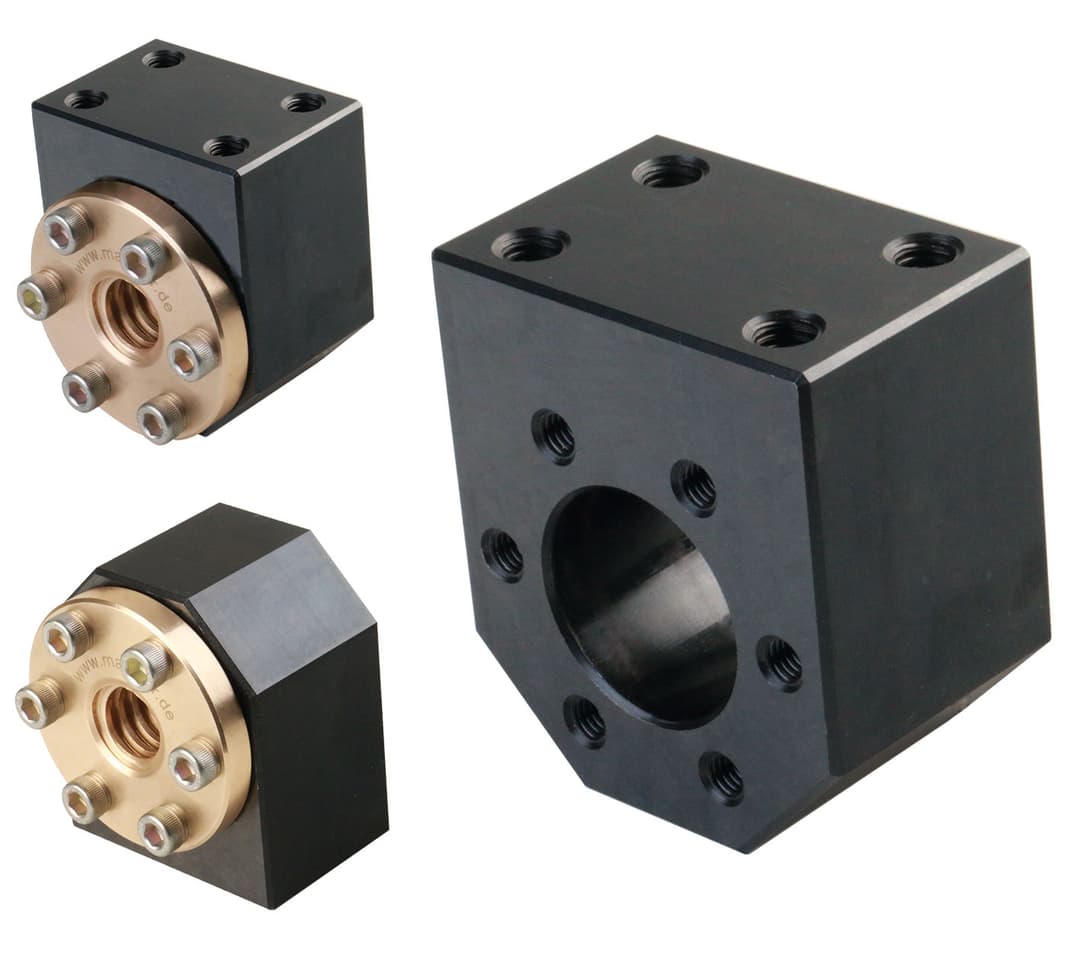

Material: Steel, black oxide finish. Strength min. 350 N/mm2. KONA adapter bracket for radial fastening of trapezoidal threaded flange nuts. The flange nut has to be screwed to the adapter. For MÄDLER® flange nuts, you can find the fitting adapter by comparing the diameter D1. For flange nuts from other manufacturers, please match the dimensions D1 and D3 to select the correct adapter. * With 2 different drilling patterns on front and back side. ** With 2 different drilling patterns on front and back side. D3=65mm with M8 x 15. *** With 2 different drilling patterns on front and back side. D3=140mm with M16 x 25. The drill pattern on the backside is 30° displaced to the frontside.
